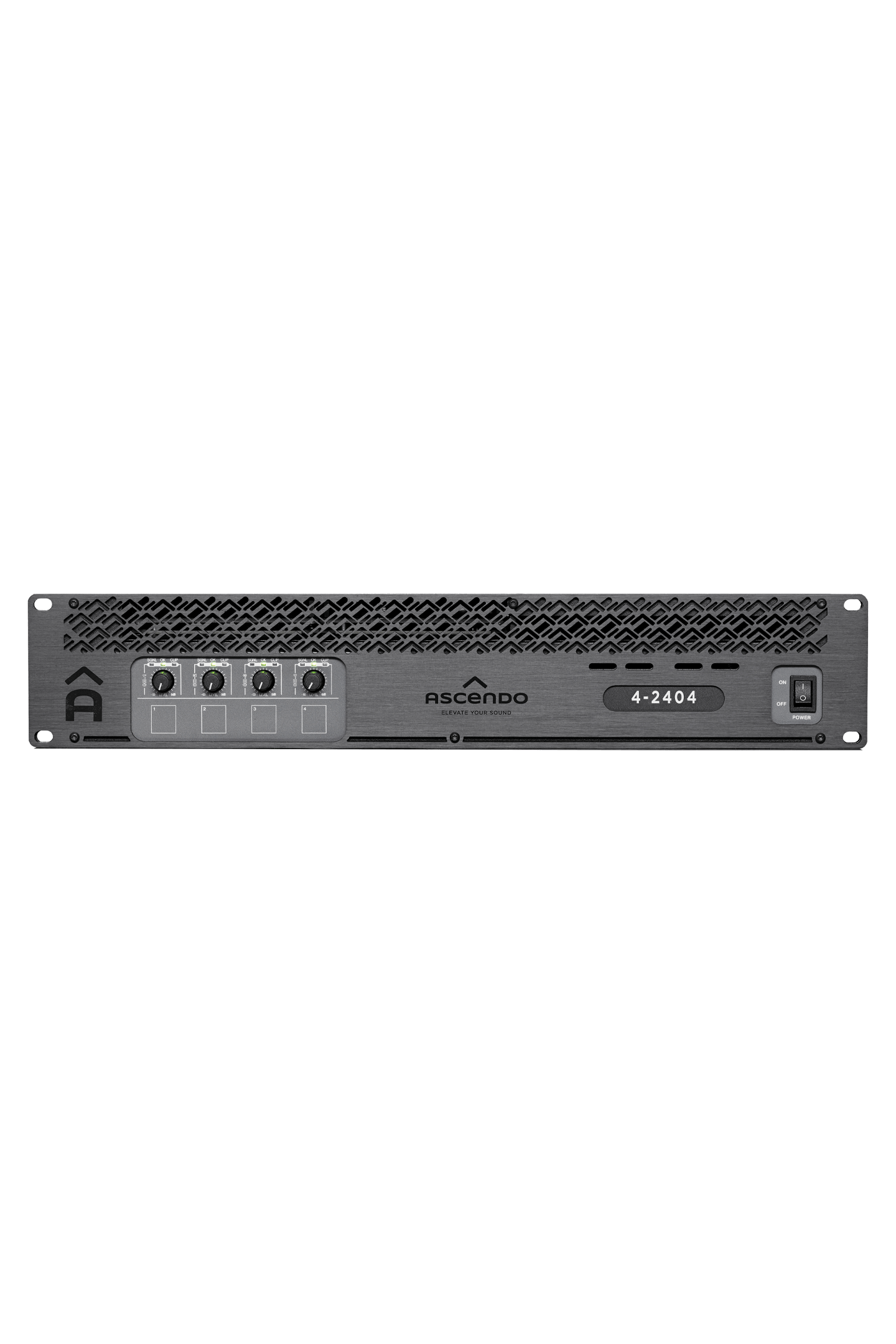

AIA 4-2404
AIA 4-2404
Specification
Inputs
Channels
4
Signal-to-Noise Ratio A-Weighted 20 Hz – 20 kHz
105 dB
Nominal sensitivity for maximum output level (balanced) Sensitivity (@ 32 dB)
1.3 V
Outputs
Output Power (EIAJ Test Standard 1 kHz 1% THD)
230 V @ 4 Ω: 4 x 610 W 230 V @ 8 Ω: 4 x 350 W Bridged: 230 V @ 8 Ω: 2 x 1220 W
Frequency response
20 Hz – 20 kHz
Protection
Soft-start, Turn-on Turn-off transients, Over-heating, DC, RF, Short-circuit, Open or mismatched loads, ICL™, PMS™
Damping factor 20 – 500 Hz @ 8 Ω
> 400
Total Harmonic Distortion
< 0.05 %
Intermodulation Distortion
< 0.05 %
Crosstalk 20 Hz – 1 kHz
> 75 dB
Voltage Gain
32 dB

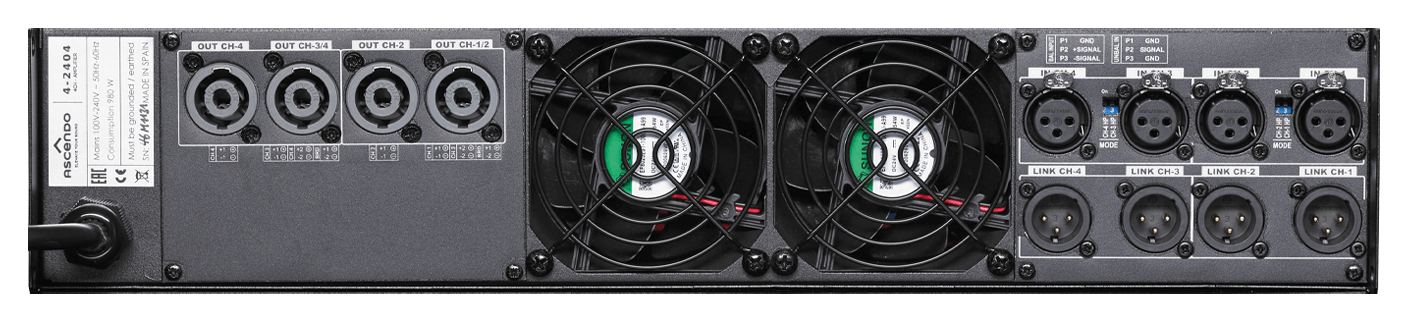

Connector
Audio signal input connectors
Neutrik XLR
Audio signal output connectors
Neutrik XLR
Speaker connector
Neutrik speakON®
AC Mains Power
Operating Voltage
170 - 265 VAC 90 - 140 VAC (opt.)
Power On Idling (@230V)
0.5 A
1/8 Rated Power (230 V @ 4 Ω)
3.2 A
Thermal
Thermal dissipation
Fan, variable speed, temperature controlled front to rear airflow
Idle
230 VAC: 216 BTU/h 54 kcal/h 120 VAC: 216 BTU/h 54 kcal/h
1/8 power @ 4 Ohm (1/8 power @ 8 Ω)
230 VAC: 225 BTU/h 57 kcal/h 120 VAC: 225 BTU/h 57 kcal/h
1/4 power @ 4 Ohm (1/8 power @ 4 Ω)
230 VAC: 244 BTU/h 62 kcal/h 120 VAC: 244 BTU/h 62 kcal/h

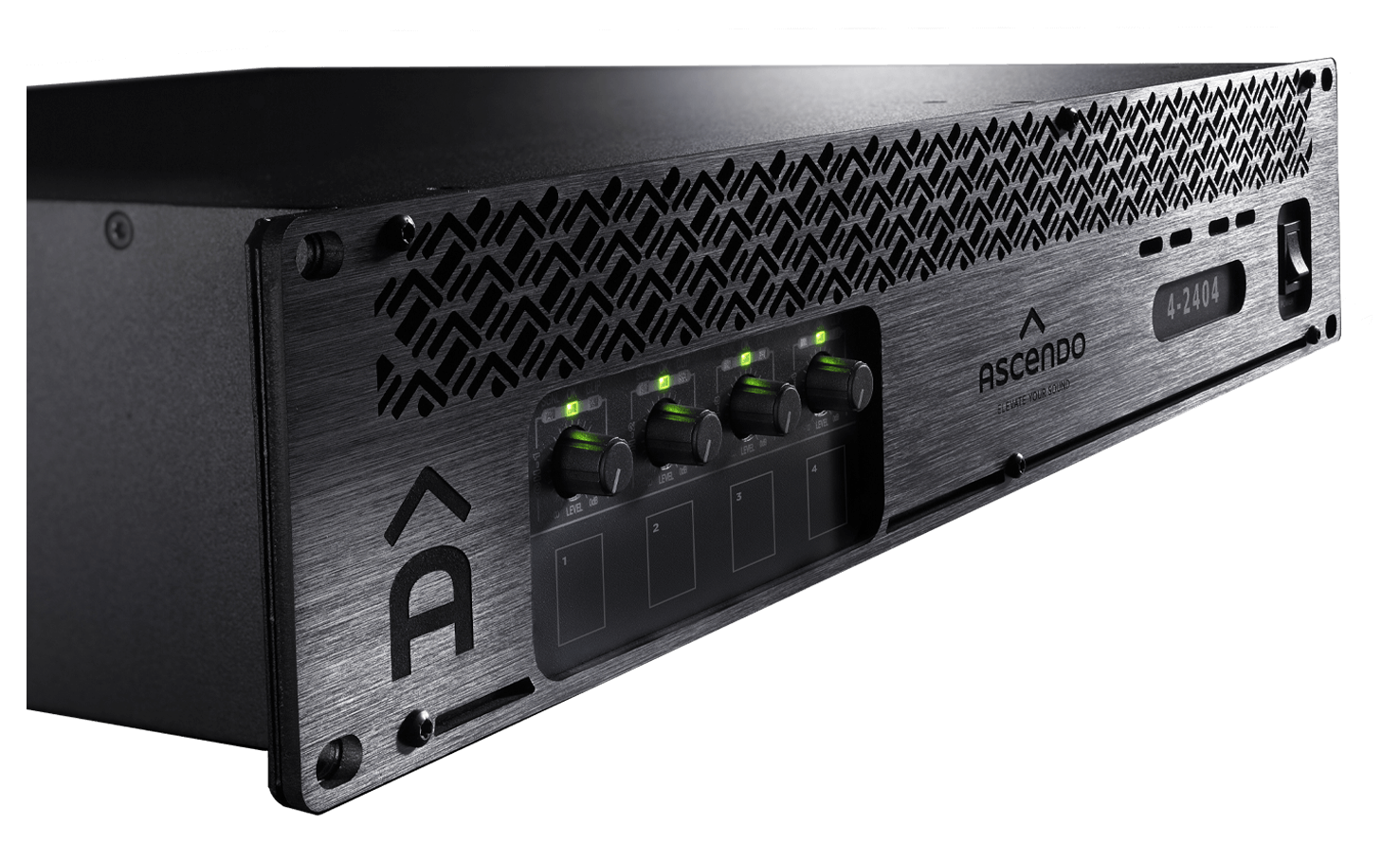

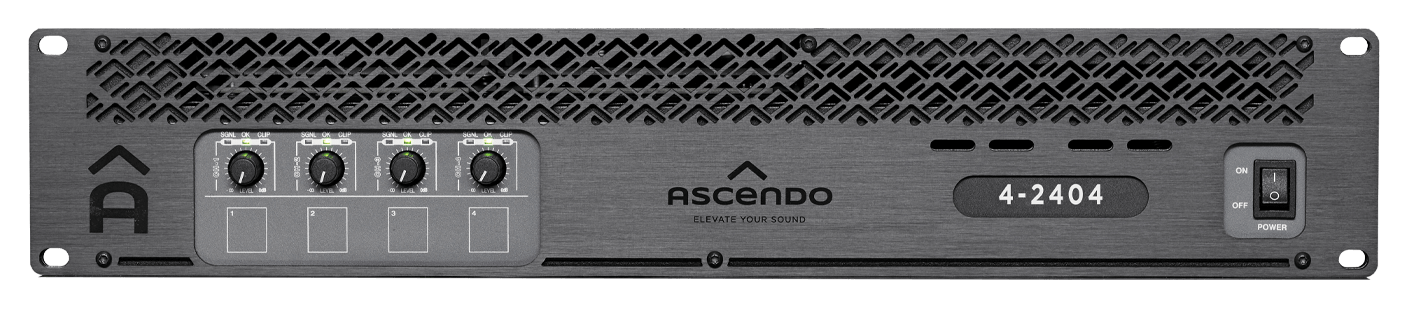

User Interfaces
Hardware
Status LEDs, Potentiomenters, Power button
Dimensions & Weight
Dimensions (W/H/D) mm
483 | 89 | 416 (2RU)
Dimensions (W/H/D) inch
19 | 3 1/2 | 13 3/8 (2RU)
Packing Dimensions (W/H/D) mm
650 | 270 | 600
Packing Dimensions (W/H/D) inch
25 9/16 | 10 5/8 | 23 5/8
Weight
13.67 lbs | 6.2kg
Gross Weight
22.49 lbs | 10.2 kg
