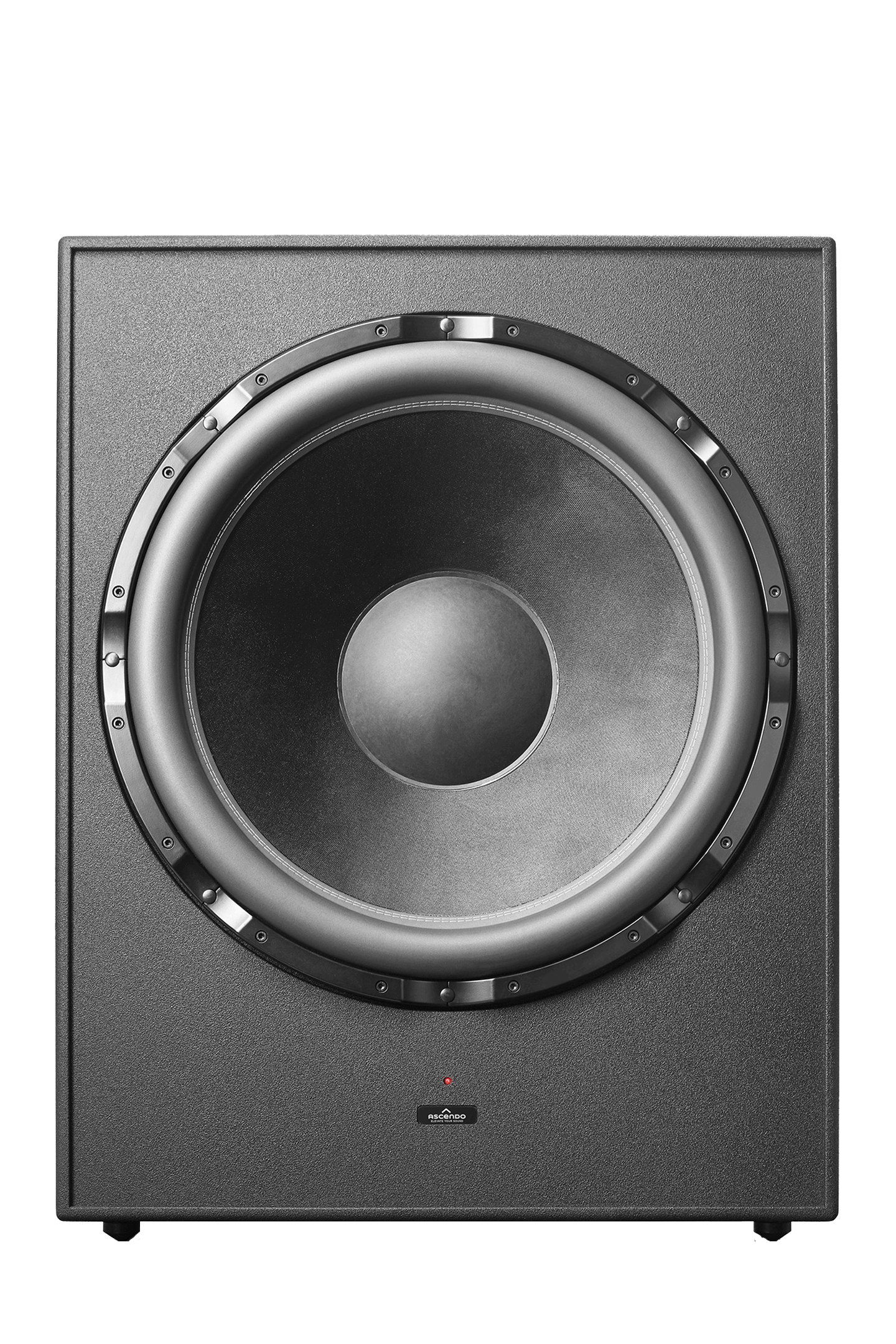

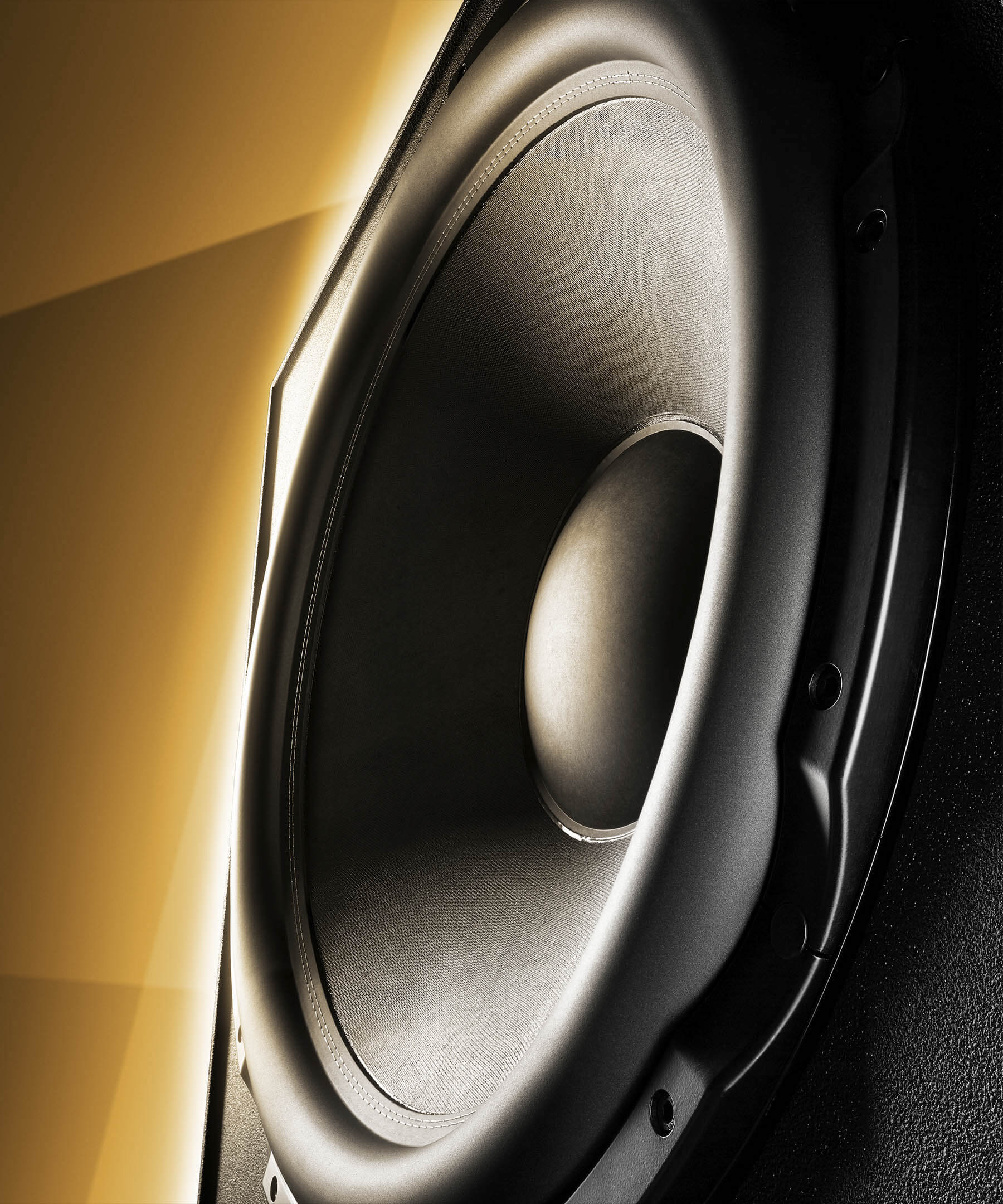

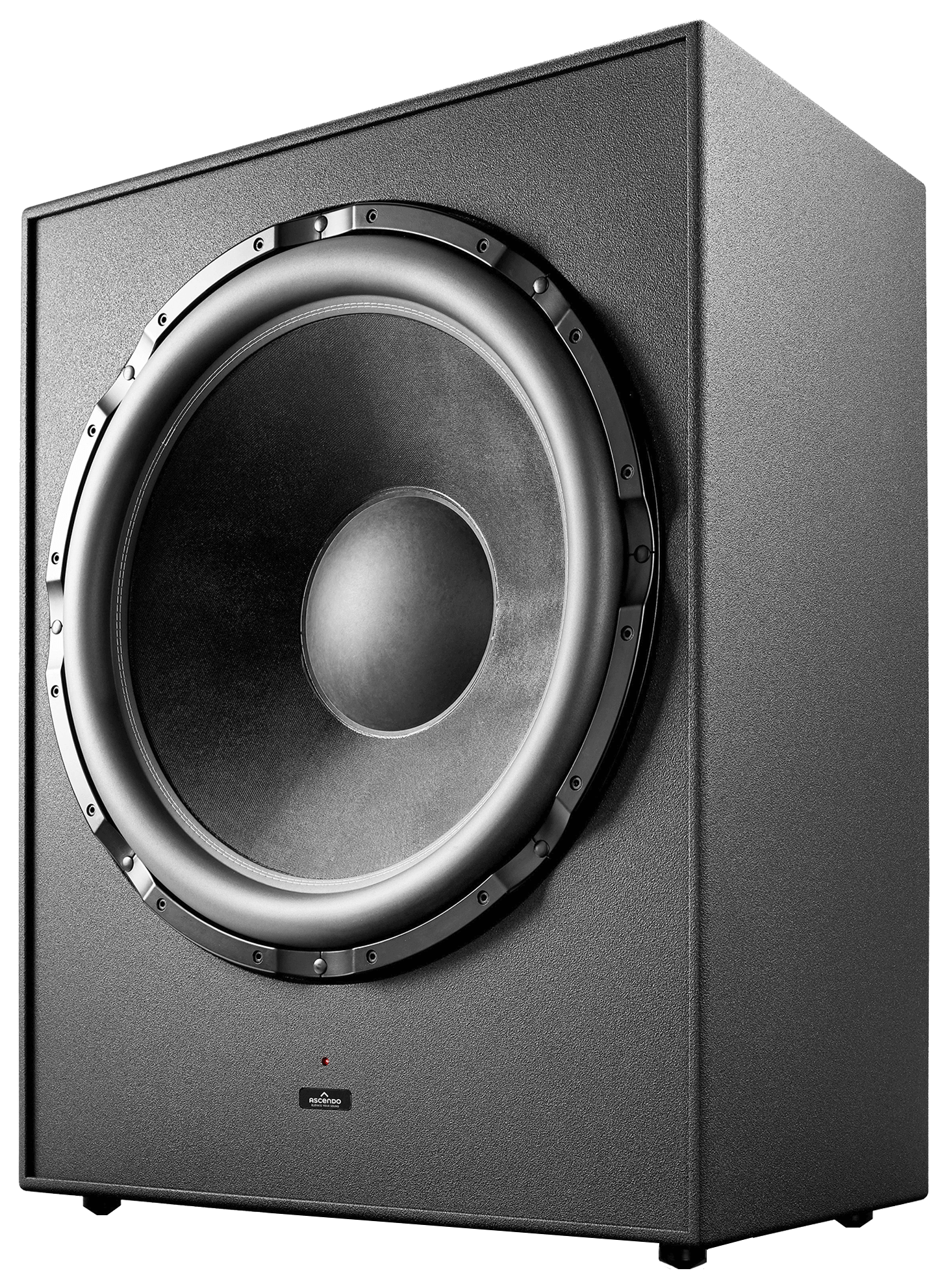

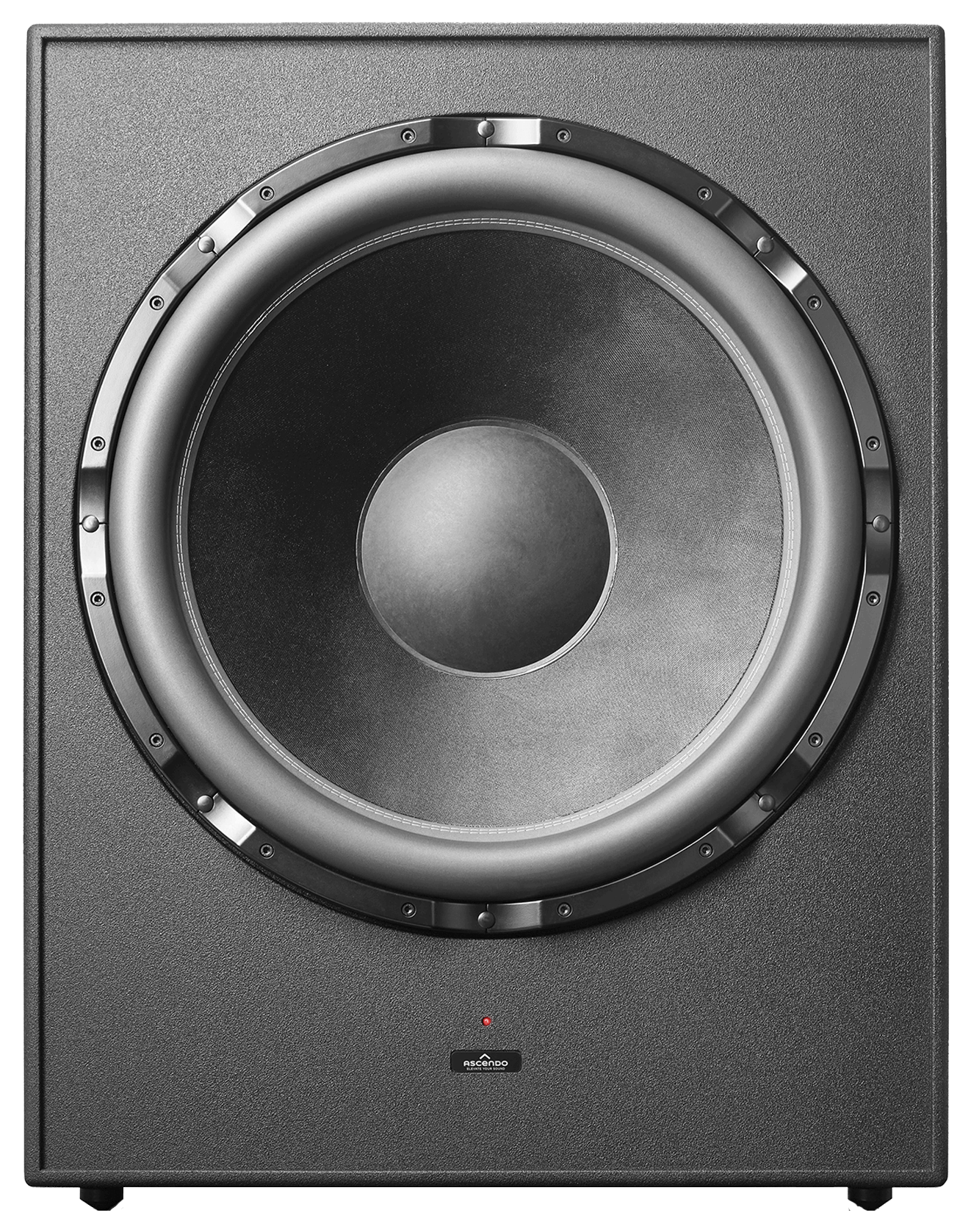

THE32 SUB PRO PASSIVE SEALED
Description
The The32 SUB PRO PASSIVE SEALED infrasub shifts the benchmarks.
Key figures: 82 cm / 32" custom-built super-woofer, 90 mm of linear travel – the world record for home theater or even commercial cinema subwoofers. The The32 SUB PRO plays in its own league. Authority and impact, speed, dynamics and differentiation, all these attributes the The32 SUB PRO evolves when playing down to the deepest notes in the single digit range. This opens up a new world in lowest bass reproduction. Any comparison will illustrate the sovereignty of its infrasonic bass capabilities.
Displacing an incredible volume of 16.6 liters or half a cubic foot, the The32 SUB PRO pushes as much air per maximum stroke as fifteen standard 18" subwoofers. The The32 SUB PRO allows not only to reproduce lower frequencies, but also a much faster group delay at the same frequencies than the commonly used 18”, 15” and 12" subwoofers in todays home theater and commercial cinema configurations.
The performance of the The32 SUB PRO is unparalleled. This infrasub complements both state-of-the-art cinemas or home theater setups to extend LFE channel reproduction or benefits the best high-end speakers. It dramatically improves the overall performance of all speaker systems.
The32 SUB PRO - more depth, image, structure, resolution, volume, dynamics equals more fun
Specification
General
Speaker Type
32” forward-firing woofer with dual 6.5” voice coil
XMAX
45 mm excursion each direction (90 mm linear), voice coil remaining in homogeneous magnetic field, linear and lowest distortion
Principle
Sealed
Passive | Active
Passive
Recommended Amplifiers
2 Amp. channels are required. minimum recommended amplifier voltage swing: 2 x 109 Vrms, 154 Vpk, 27.3 A; equivalent to 3000 W @ 4 Ohms per channel, total 6000 W with correct RMS & Peak limiter settings (up to 450 V = 20 kW peak)
Recommended ASCENDO Amplifiers
(With DSP-4D: AIA2-10K2 IS)
Measured Data
SPL Peak (Peak / Half Space 2pi)
Measured Data 140 dB @ 32 Hz 125 dB @ 20 Hz 109 dB @ 10 Hz
Frequency Range
Measured Data (without ext. DSP) 28 Hz - 500 Hz / -3 dB 20 Hz - 500 Hz / -15 dB
Power Handling
2 x 3000 W
Efficiency
92 dB / 1 W/m 4 pi, 98 dB / 1 W/m 2 pi
Impedance
Dual Voice Coil, 4 Ω each
Directivity Horizontal x Vertical in deg°
360°
Max Linear Air Volume Displacement
12.61 US. liq. gal. | 47.76 L
Input

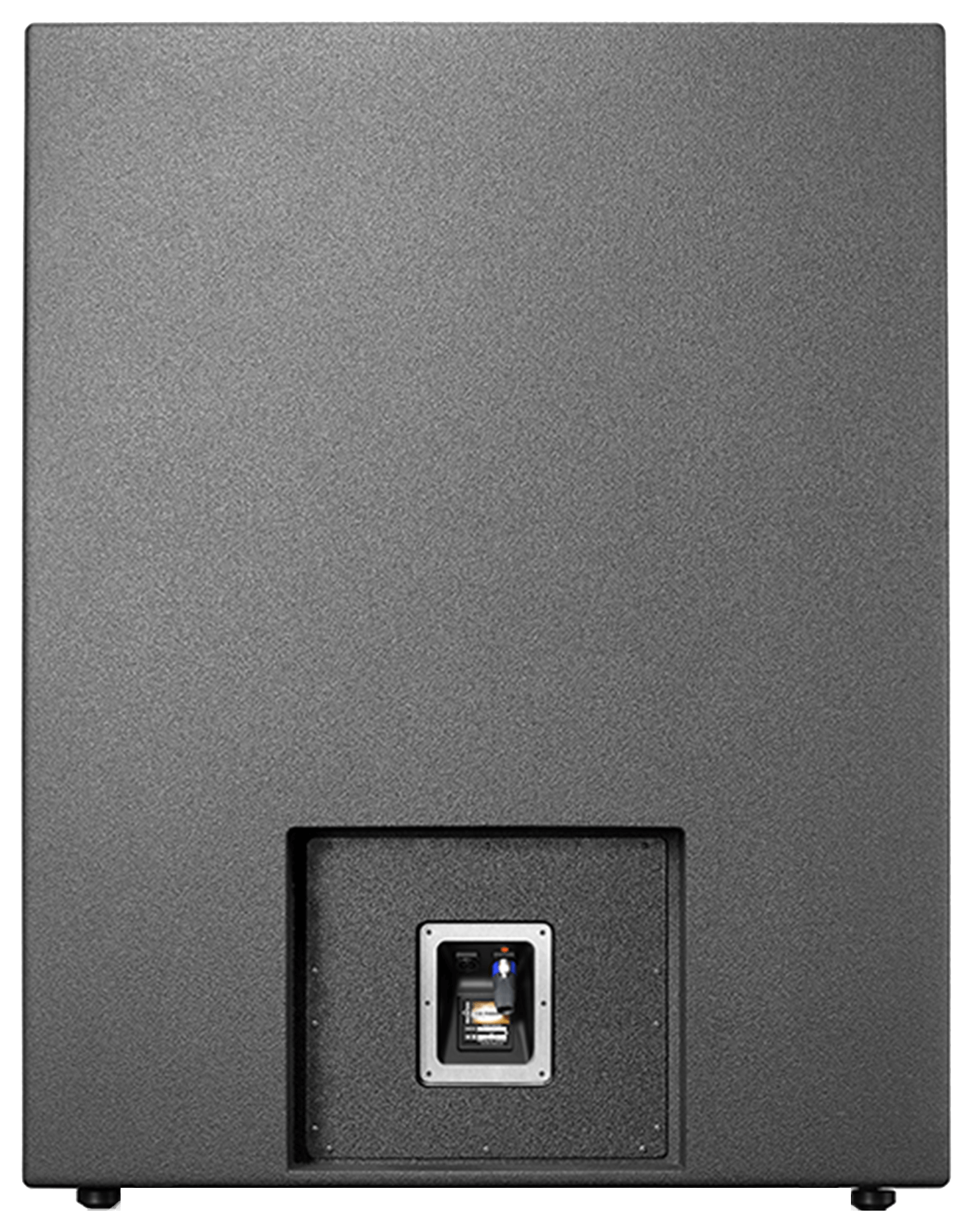

Input Terminal
Neutrik NL4 MP
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
950 | 1225 | 550 (Height without feet: 1200)
Dimensions (W/H/D) inch (Without Grille)
37 3/8 | 48 1/4 | 21 5/8 (Height without feet: 47 1/4)
Packing Dimensions (W/H/D) mm
1200 | 1590 | 800
Packing Dimensions (W/H/D) inch
47 1/4 | 62 5/8 | 31 1/2
Weight
352.74 lbs | 160 kg
Gross Weight
407.85 lbs | 185 kg
Design & Mounting
Enclosure
Internally braced birch ply and MDF
Finish
Structural paint black
Mounting
Floorstanding with feet
