AIA 8-6004
AIA 8-6004
Specification
Inputs
Channels
8
Signal-to-Noise Ratio A-Weighted 20 Hz – 20 kHz
104 dB
Nominal sensitivity for maximum output level (balanced) Sensitivity (@ 32 dB)
1.4 V
Outputs
Output Power (EIAJ Test Standard 1 kHz 1% THD)
230 V @ 4 Ω: 8 x 750 W 230 V @ 8 Ω: 8 x 400 W Bridged: 230V @ 8 Ω: 4 x 1500W
Frequency response
20 Hz – 20 kHz
Protection
Soft-start, Turn-on Turn-off transients, Over-heating, DC, RF, Short-circuit, Open or mismatched loads, ICL™, PMS™
Damping factor 20 – 500 Hz @ 8 Ω
> 400
Total Harmonic Distortion
< 0.05 %
Intermodulation Distortion
< 0.05 %
Crosstalk 20 Hz – 1 kHz
> 75 dB
Voltage Gain
32 dB

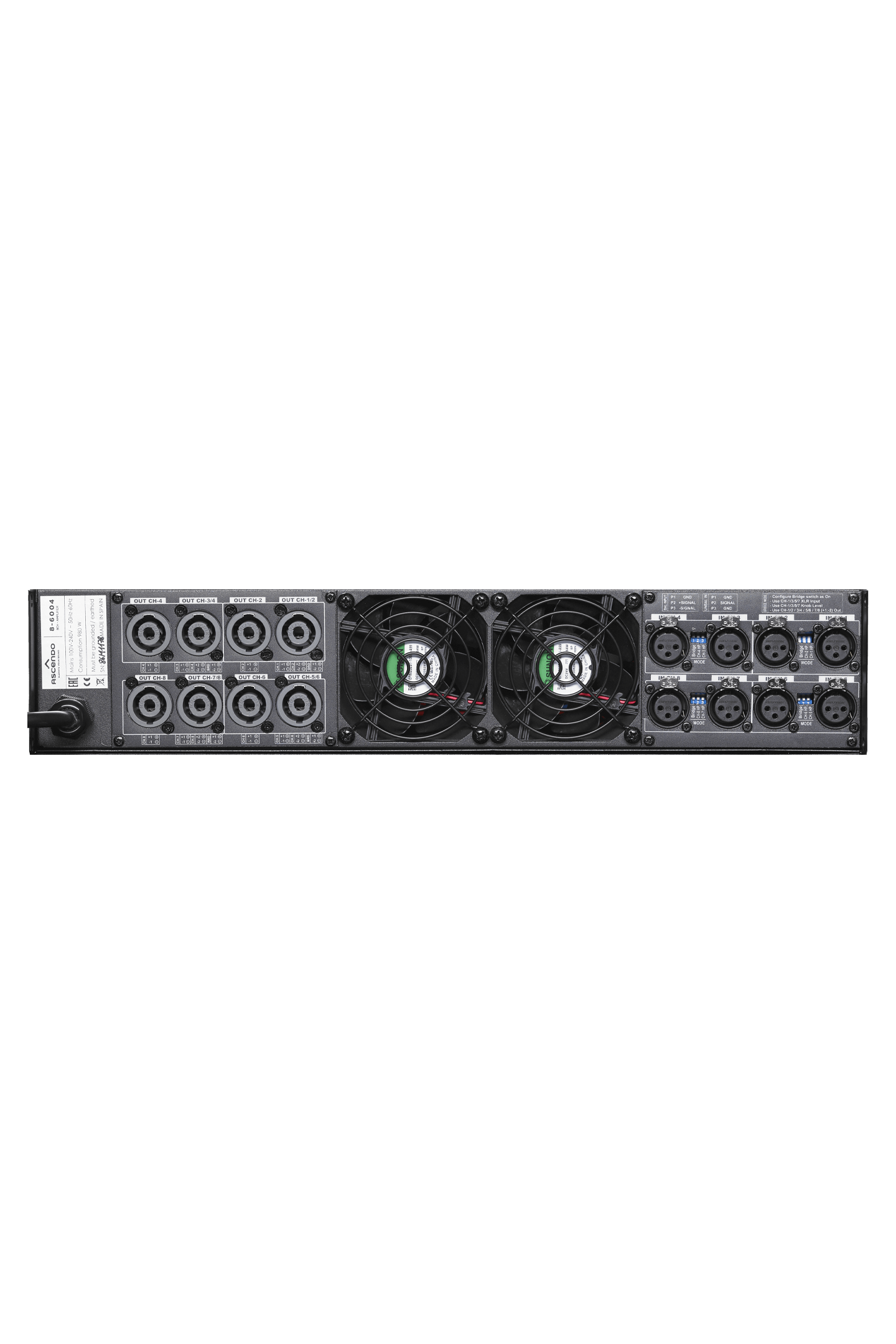

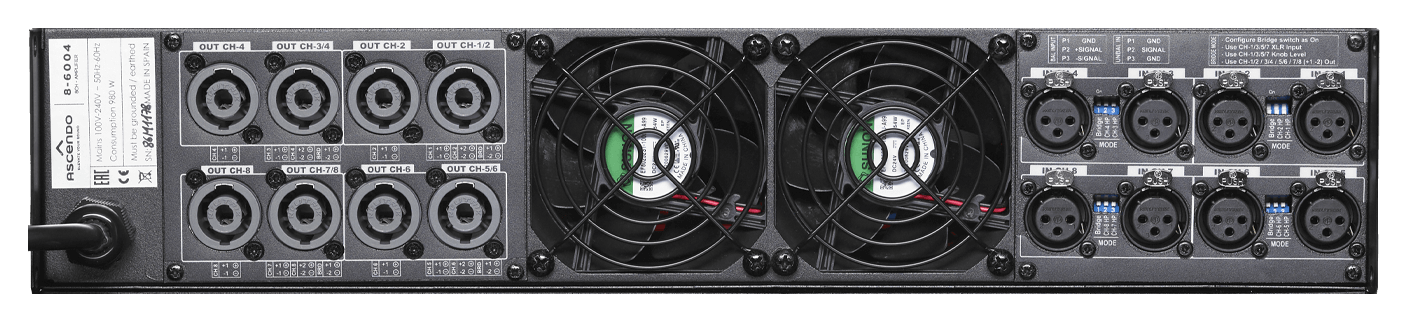

Connector
Audio signal input connectors
Neutrik XLR
Speaker connector
Neutrik speakON®
AC Mains Power
Operating Voltage
90 - 265 VAC
Power On Idling (@230V)
0.5 A
1/8 Rated Power (230 V @ 4 Ω)
4.5 A
Thermal
Thermal dissipation
Fan, variable speed, temperature controlled front to rear airflow
Idle
230 VAC: 216 BTU/h 54 kcal/h 120 VAC: 216 BTU/h 54 kcal/h
1/8 power @ 4 Ohm (1/8 power @ 8 Ω)
230 VAC: 419 BTU/h 106 kcal/h 120 VAC: 419 BTU/h 106 kcal/h
1/4 power @ 4 Ohm (1/8 power @ 4 Ω)
230 VAC: 786 BTU/h 198 kcal/h 120 VAC: 786 BTU/h 198 kcal/h

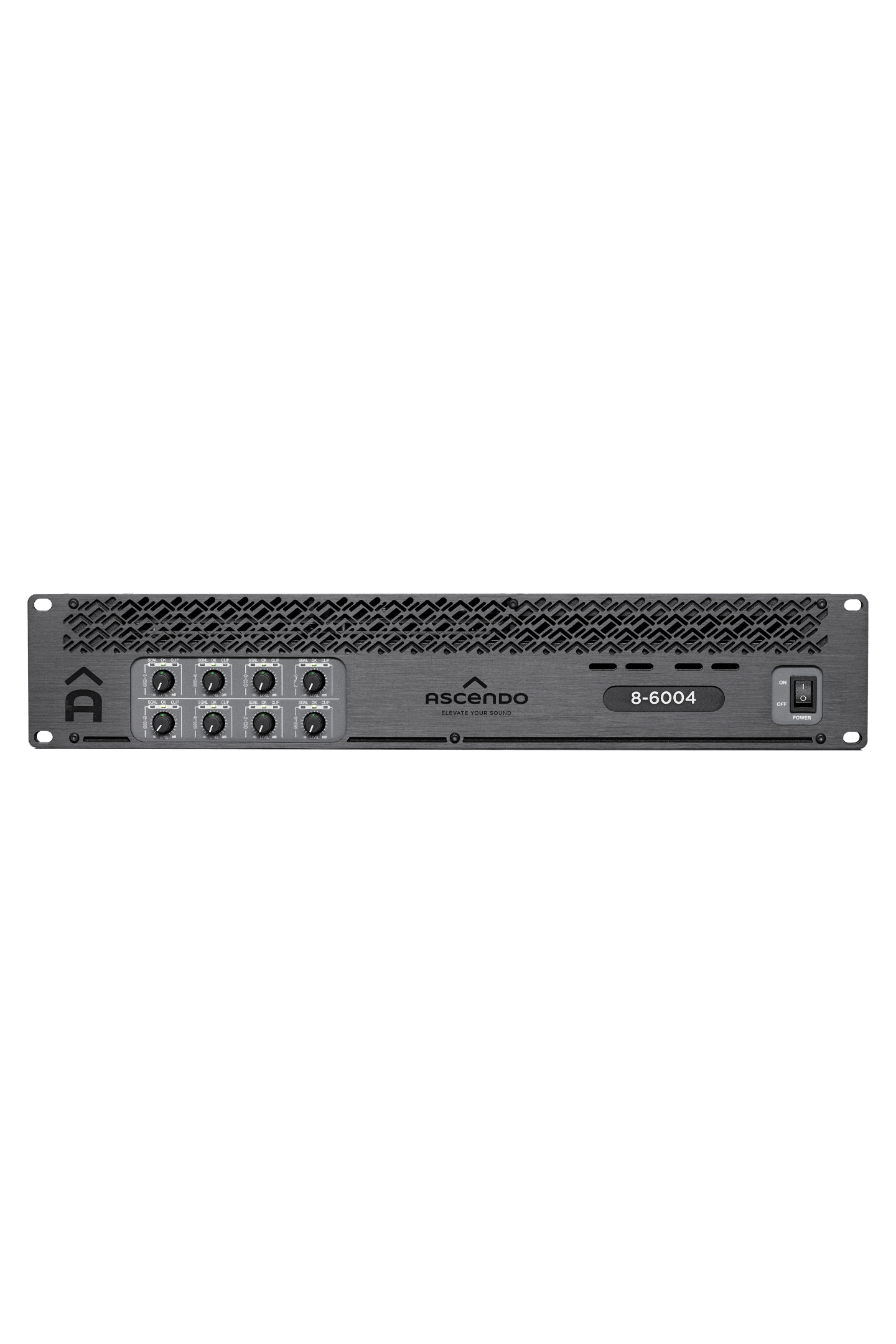

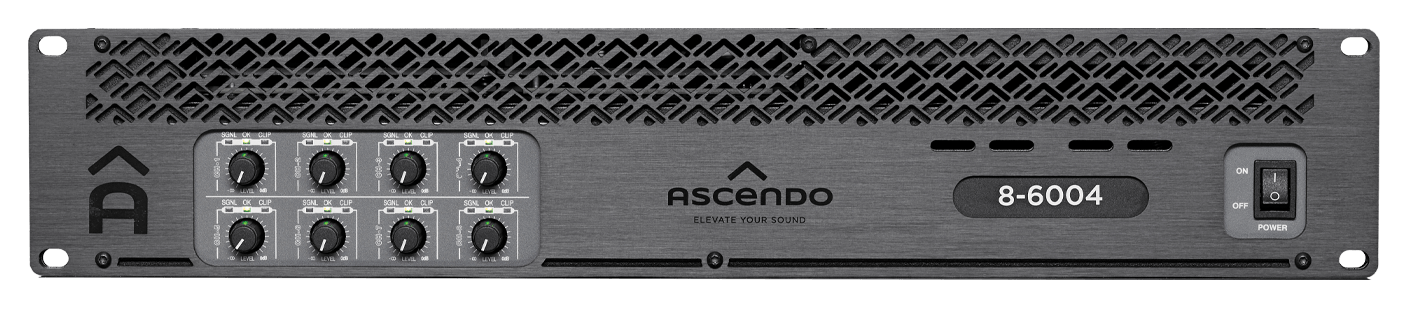

User Interfaces
Hardware
Status LEDs, Potentiomenters, Power button
Dimensions & Weight
Dimensions (W/H/D) mm
483 | 89 | 416 (2RU)
Dimensions (W/H/D) inch
19 | 3 1/2 | 16 3/8 (2RU)
Packing Dimensions (W/H/D) mm
650 | 270 | 600
Packing Dimensions (W/H/D) inch
25 9/16 | 10 5/8 | 23 5/8
Weight
19.84 lbs | 9 kg
Gross Weight
28.66 lbs | 13 kg
