THE15 SUB PASSIVE VENTED
Overview
Description
WHY: At ASCENDO, we believe that powerful, deep, and distortion-free bass should be accessible to everyone. With THE15 SUB PASSIVE VENTED, we wanted to create a subwoofer that offers the same renowned ASCENDO quality at an affordable price, all while meeting the demands of our distributors and customers.
HOW: Our design philosophy centers around the perfect balance of extension, punch, and accuracy. THE15 SUB PASSIVE VENTED delivers deep bass without compromising performance, with a meticulously selected tuning frequency of 27 Hz.
The vented enclosure enhances the lower frequency response, and our exacting engineering guarantees top performance through a high-temperature voice coil, linear suspension, and robust magnetic motor system. The heavily braced enclosure effectively reduces undesirable resonances, delivering impressive internal and external sound clarity at a more affordable price point.

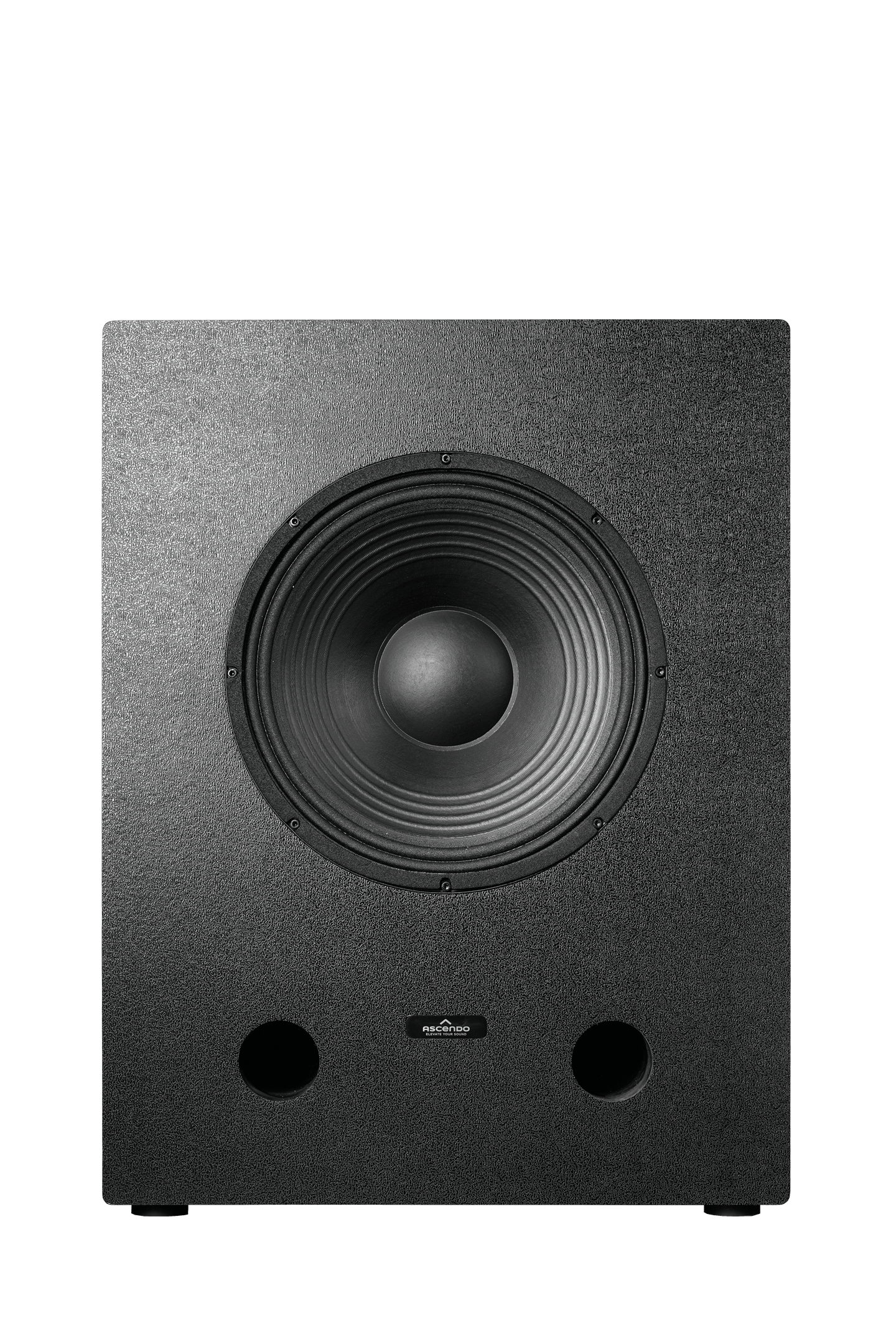

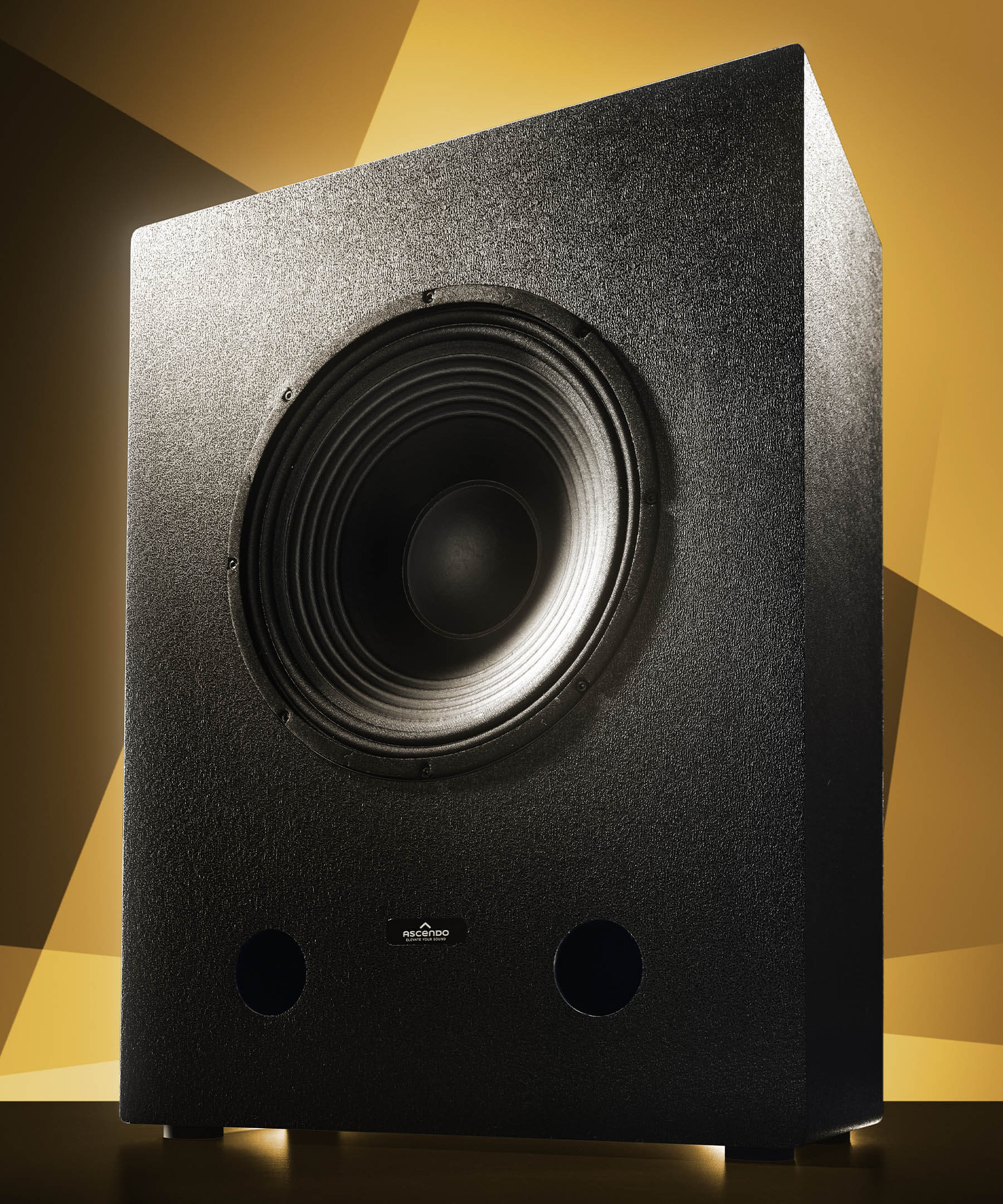

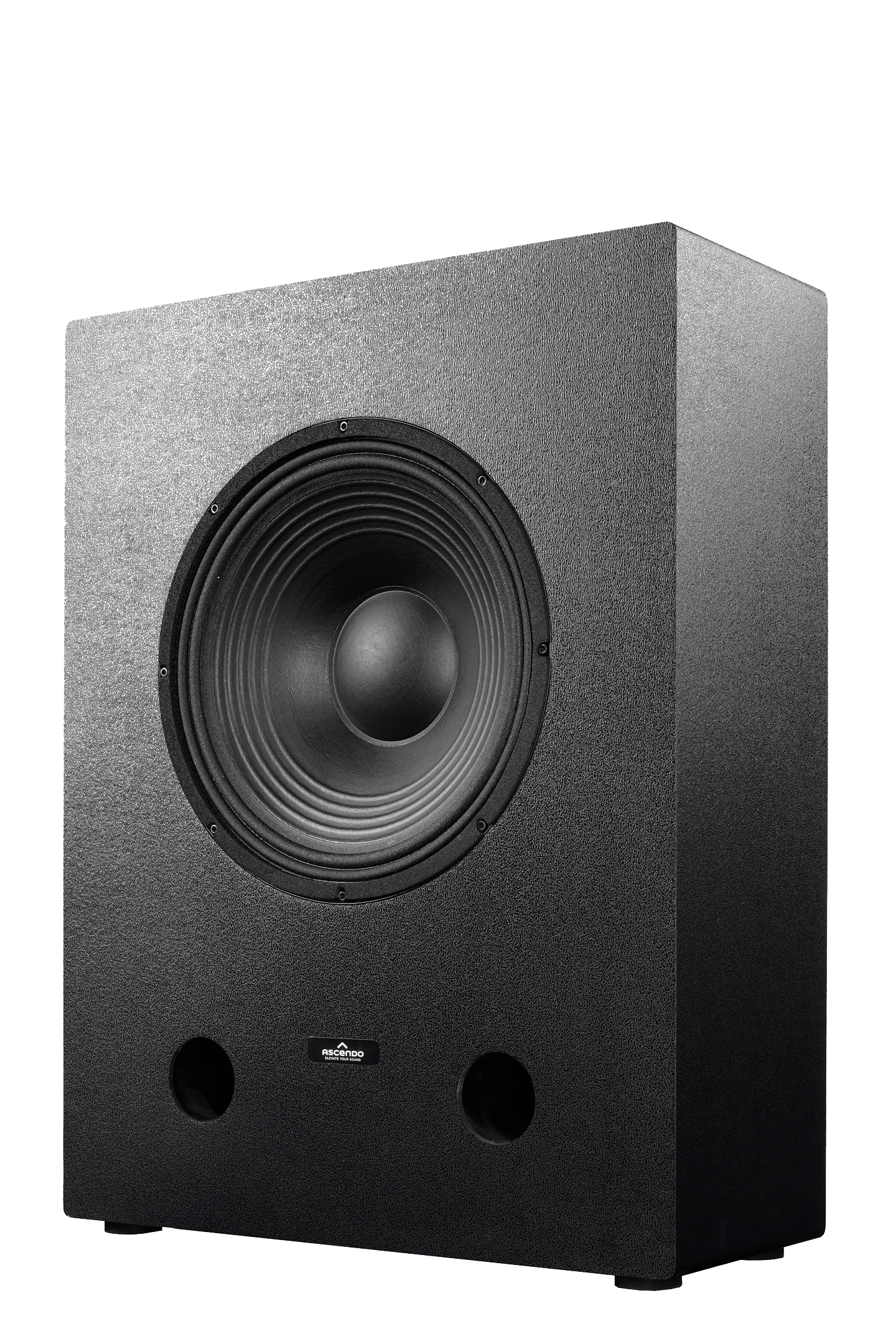

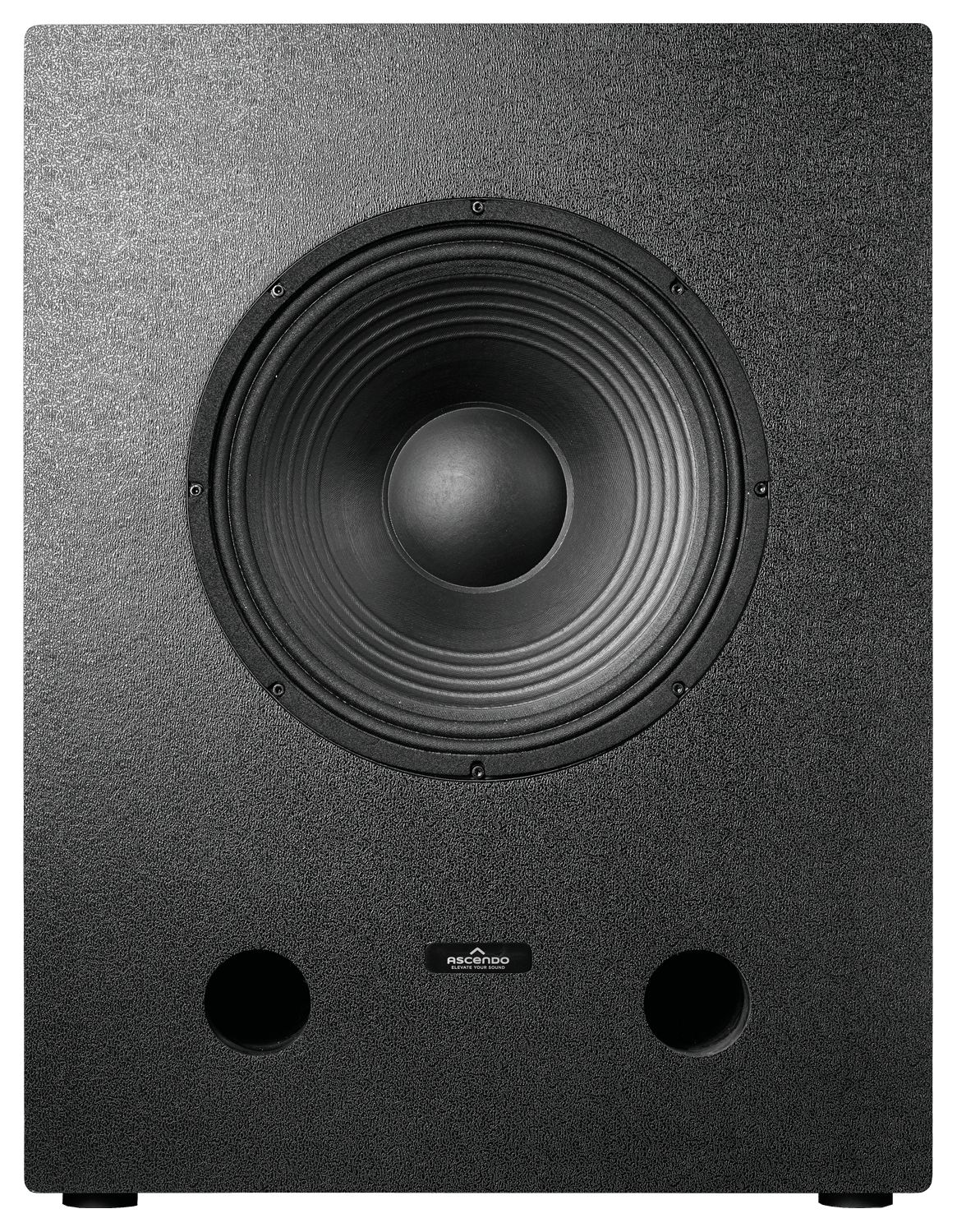

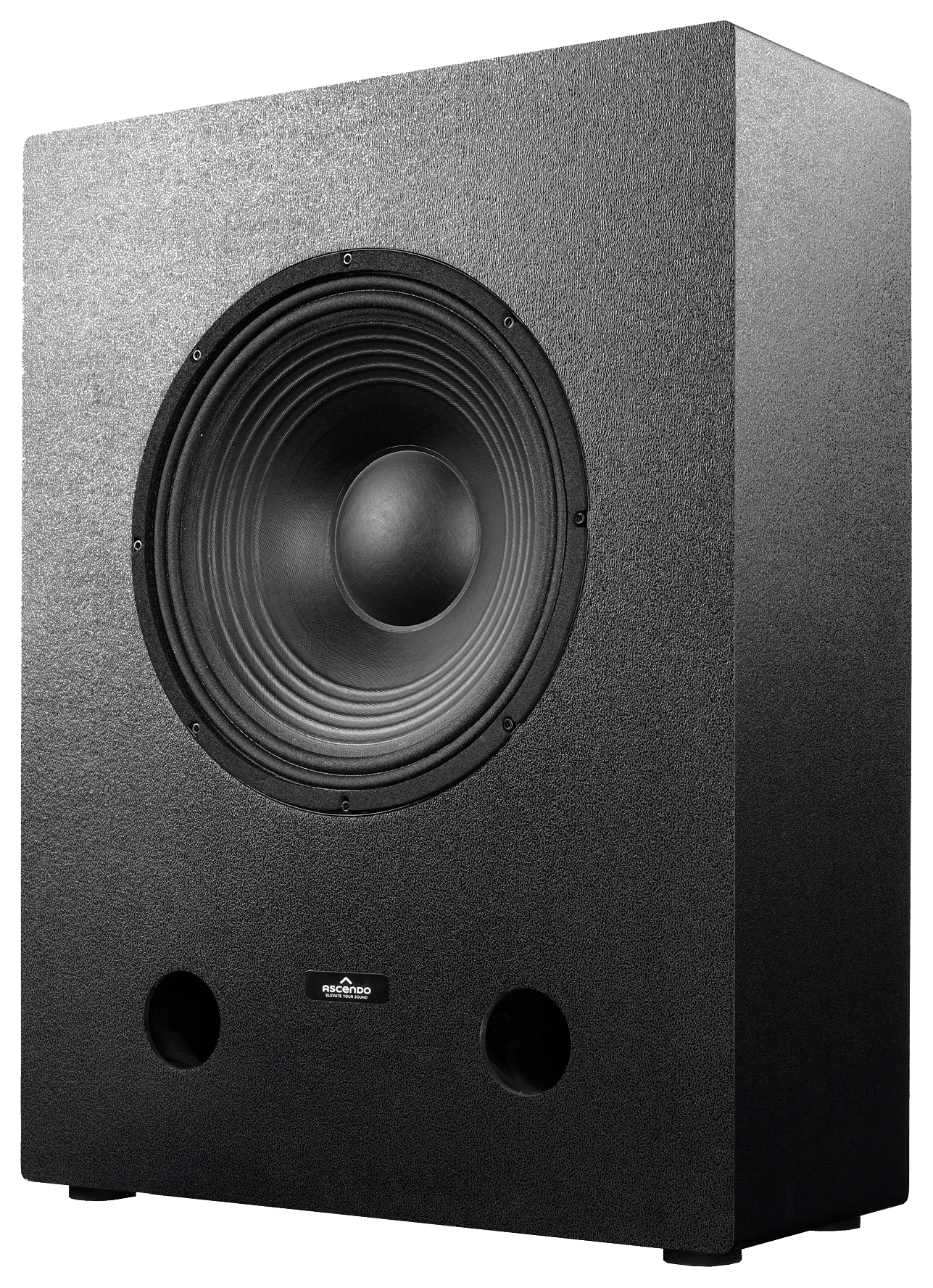

WHAT: THE15 SUB PASSIVE VENTED is a 15-inch subwoofer made with precision engineering. It has a 4-inch voice coil for high long-term reliability, and is designed for amplifiers with 750 to 1500W power output at 4 ohms. The cast frame further enhances the design by eliminating resonance.
THE15 SUB PASSIVE VENTED provides the highest sound pressure level (SPL) paired with in-room extension down to 20 Hz, whether you’re installing it in a home theater or commercial space. The shallow design allows for flexible placement with no compromises to sound quality. Trust in the verified performance metrics from third-party testing and enjoy a powerful bass experience tailored for optimal cinema sound.
For optimal performance, use with ASCENDO subwoofer amplifiers.
Specification
General
Speaker Type
15” forward-firing, with 3” voice-coil
XMAX
6 mm excursion each direction (12 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion
Principle
Vented
Passive | Active
Passive
Recommended Amplifiers
1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 52.9 Vrms, 74.8 Vpk, 13.2 A; equivalent to 700 W @ 4 Ω, with correct RMS & peak limiter settings
Recommended ASCENDO Amplifiers
(With DSP-4D: AIA2-1404 bridged, AIA2-2704, AIA4-6004, AIA8-6004 bridged)
Measured Data
SPL Peak (Peak / Half Space 2pi)
Measured Data 120 dB @ 50 Hz 116 dB @ 30 Hz
Frequency Range
Measured Data (without DSP) 59 Hz - 400 Hz / -3 dB 27 Hz - 400 Hz / -12 dB
Power Handling
1000 W
Efficiency
89 dB / 1 W/m 4 pi, 95 dB / 1 W/m 2 pi
Impedance
4 Ω
Directivity Horizontal x Vertical in deg°
360°
Input

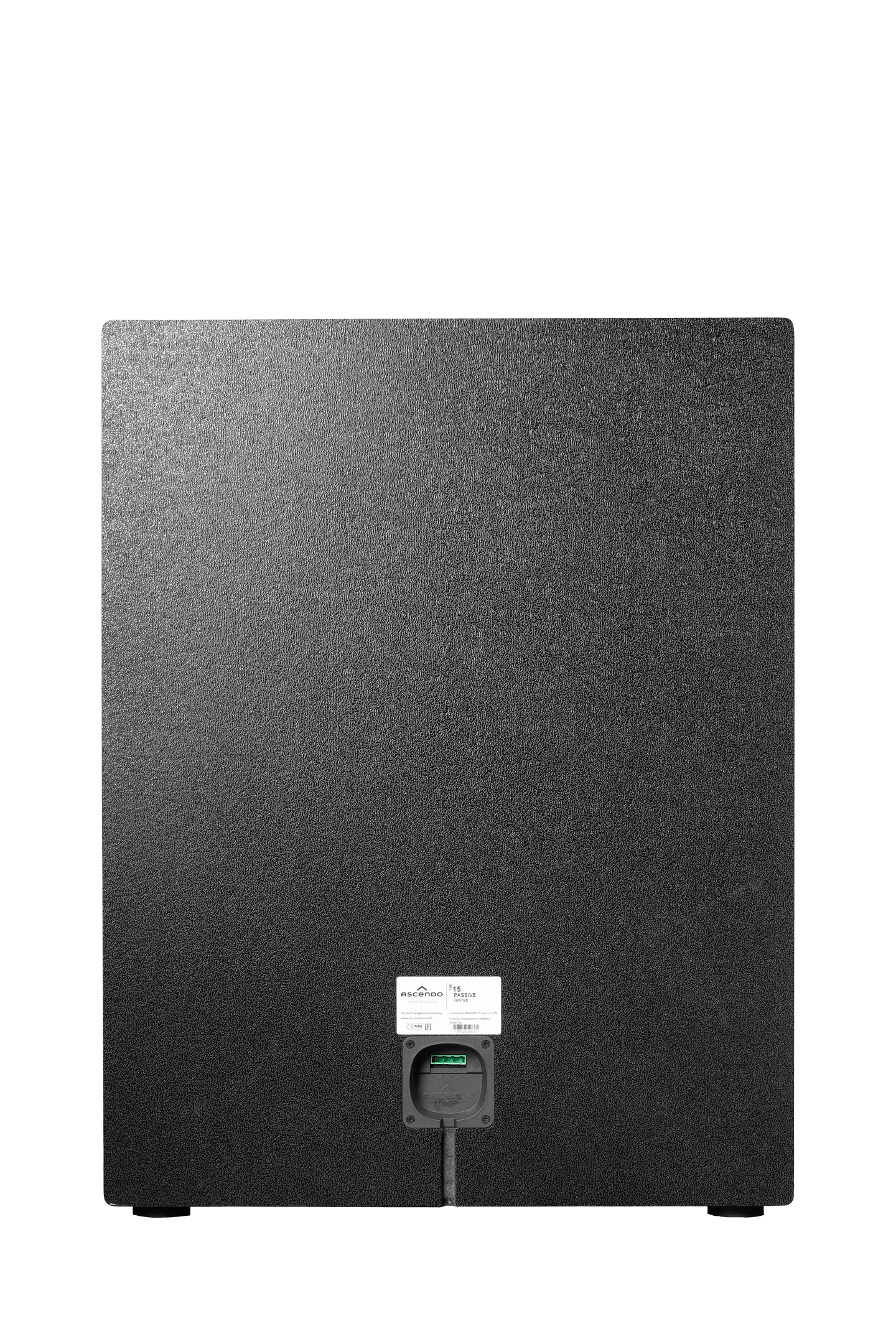

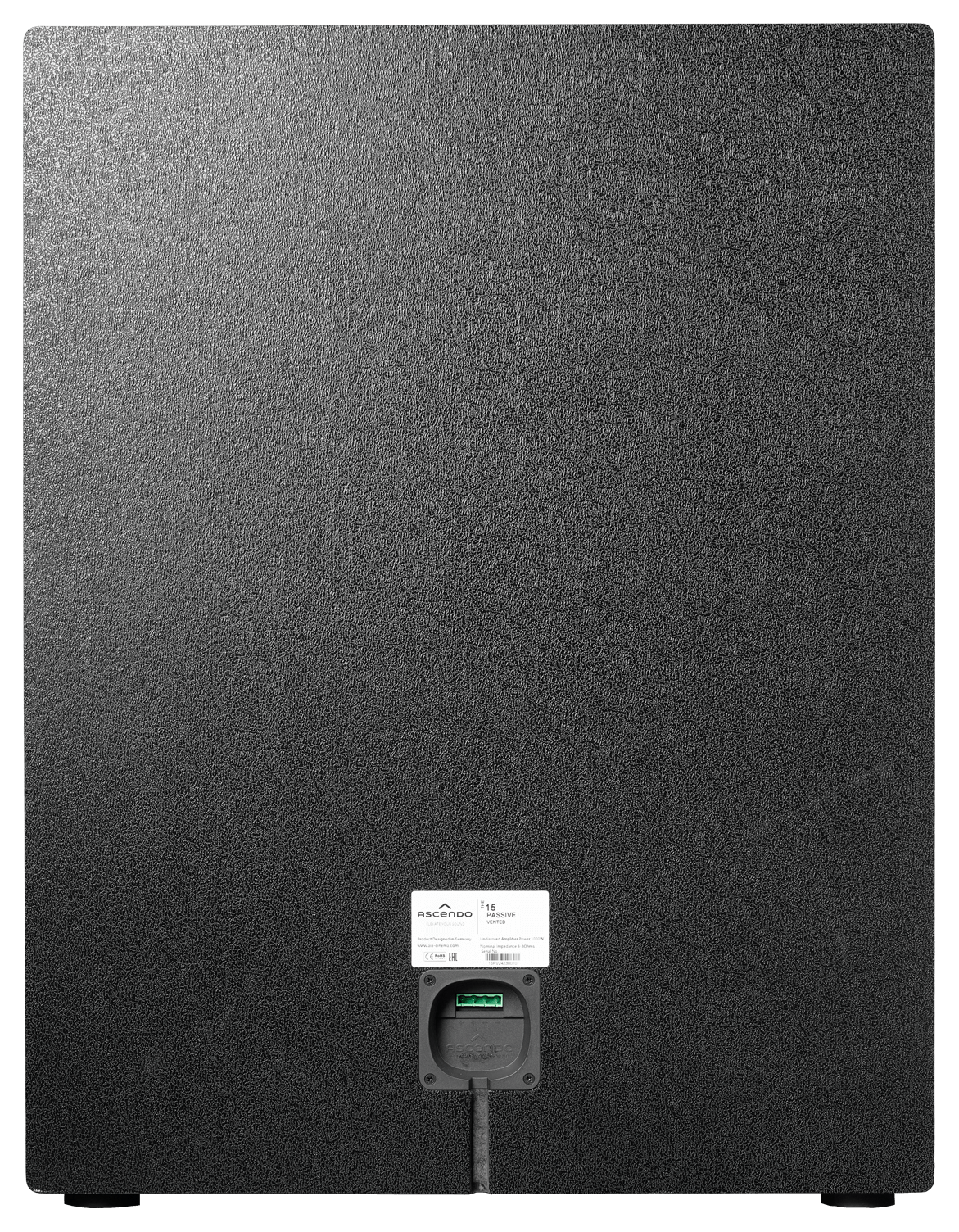

Input Terminal
4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
600 | 782 | 250 (Height without feet: 770)
Dimensions (W/H/D) inch (Without Grille)
23 10/16 | 30 12/16 | 9 13/16 (Height without feet: 30 5/16)
Packing Dimensions (W/H/D) mm
740 | 910 | 380
Packing Dimensions (W/H/D) inch
29 2/16 | 35 13/16 | 14 15/16
Weight
72.09 lbs | 32.7 kg
Gross Weight
83.11 lbs | 37.7 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish
Structural paint black
Mounting
Floorstanding with feet
