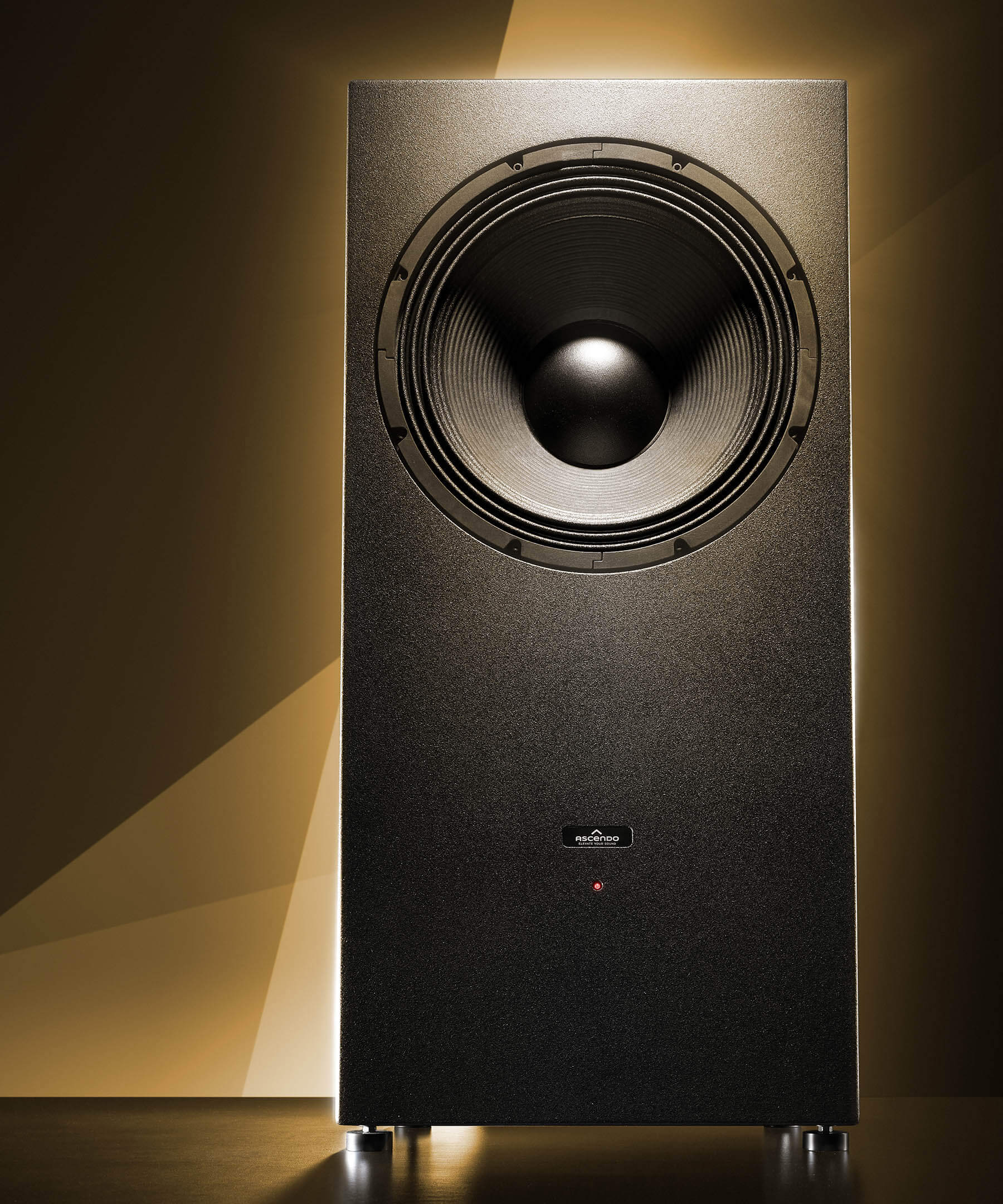

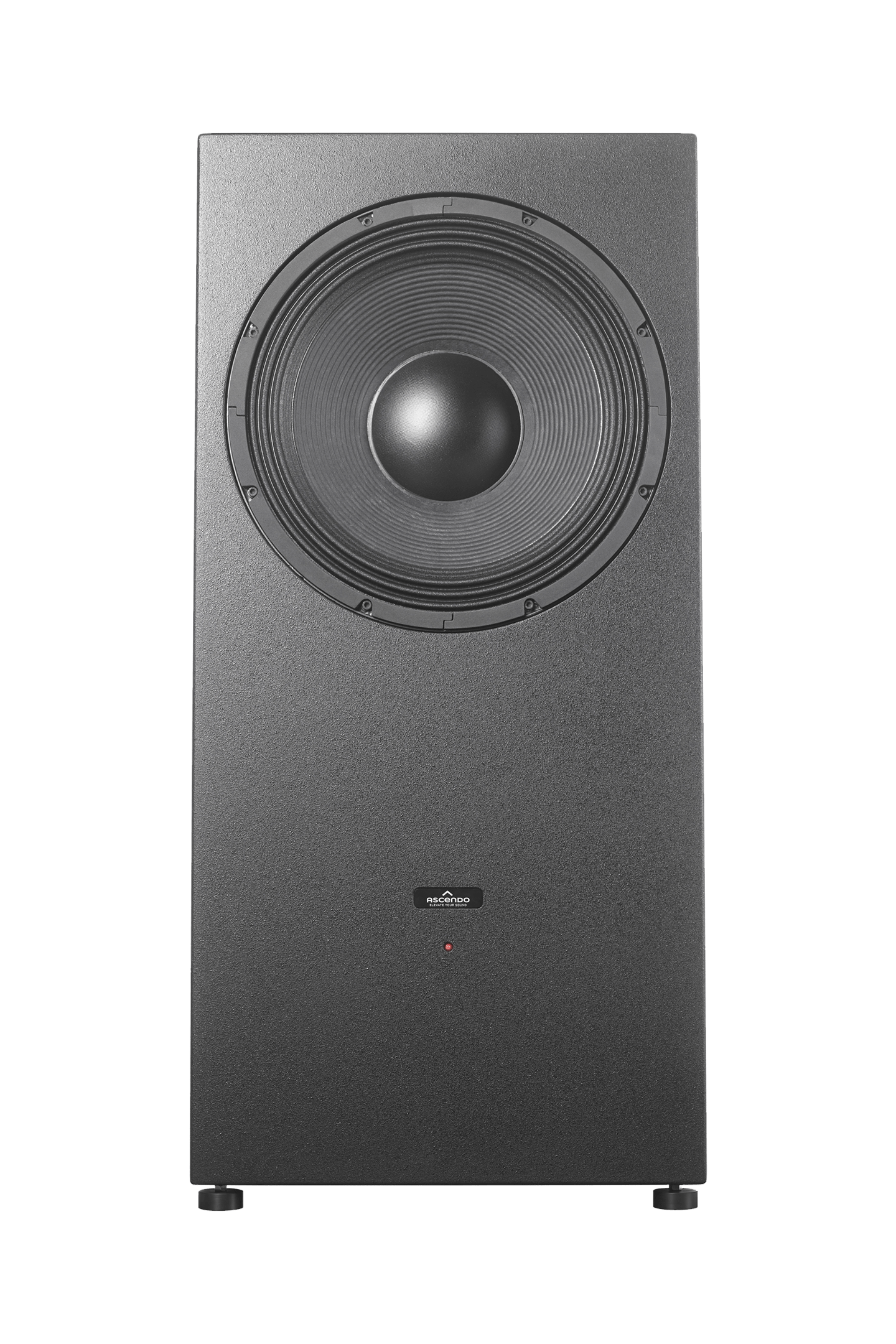

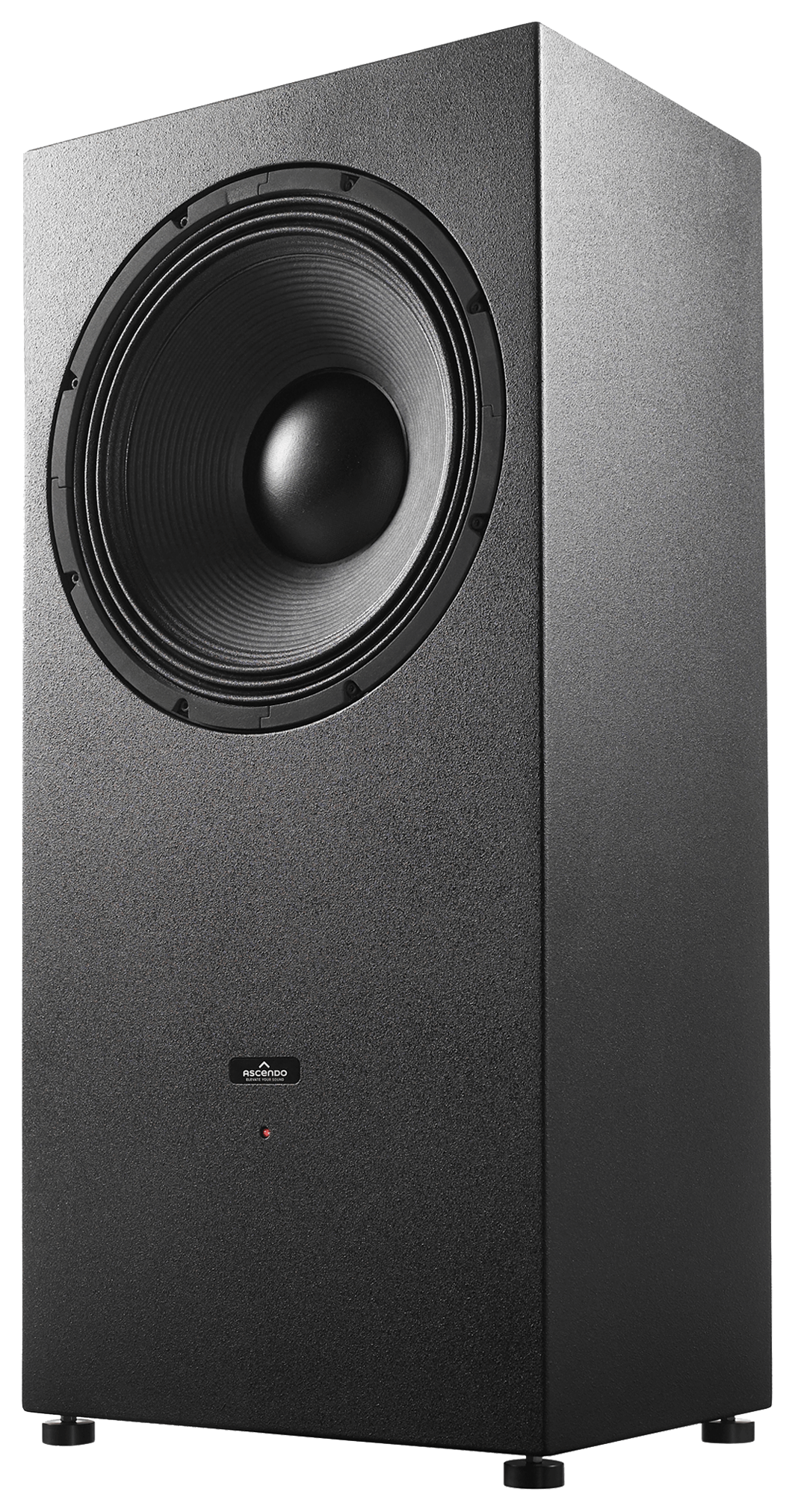

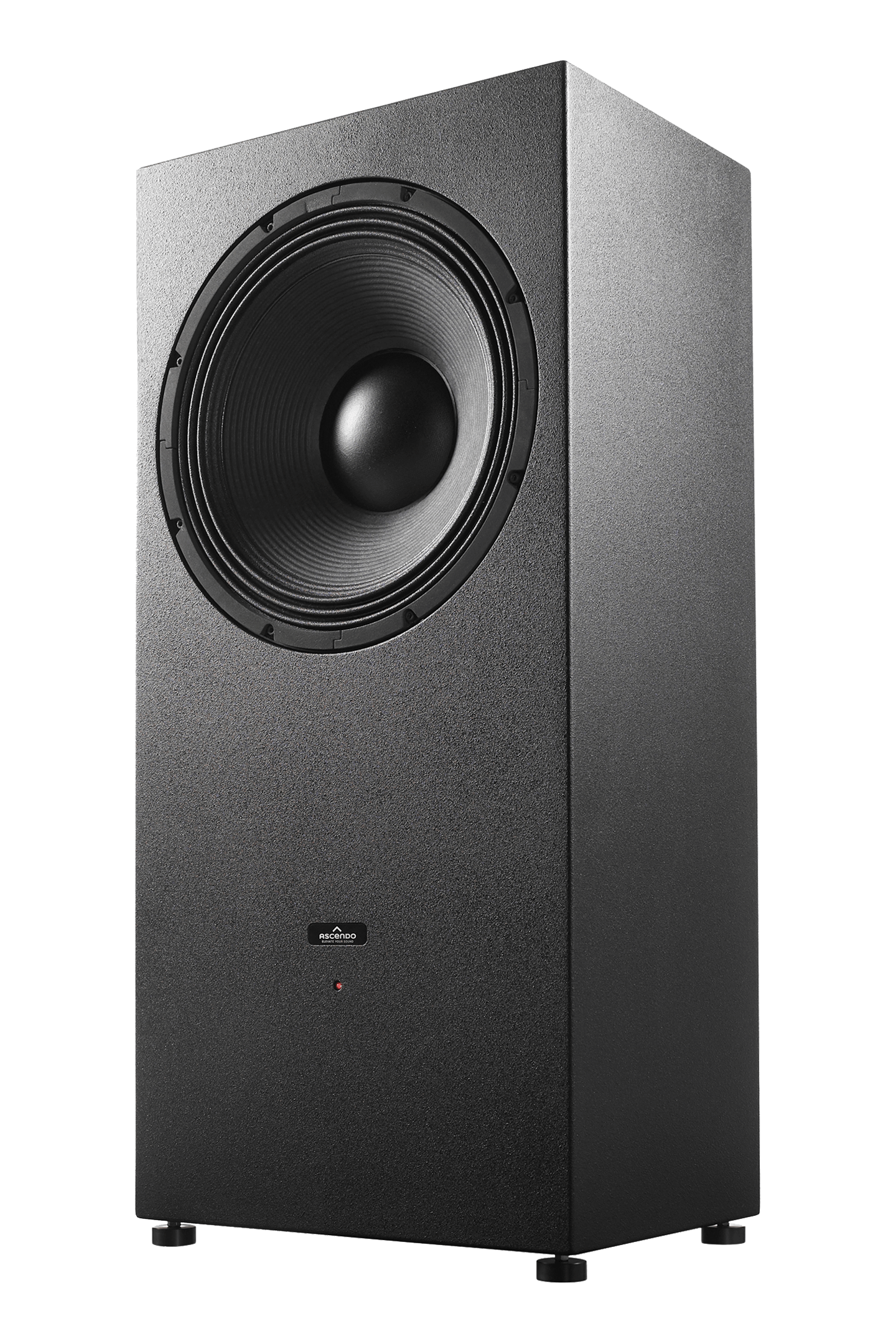

THE18 SUB PRO PASSIVE SEALED
Description
The THE18 SUB PRO PASSIVE SEALED is a jewel in the pool of subwoofers designed for the highly educated customer that is on the quest for the highest performance and understands how to differentiate sound quality.
When this customer experiences the THE18 SUB PRO PS’s unparalleled output and uncolored sound, the measured test results we publish translate perfectly to realized performance. ASCENDO’s policy is to be completely transparent and publish measurements done by independently certified third-party labs to provide factual data, thereby enabling informed, educated decisions.
The THE18 SUB PRO PS is so far above and beyond the competition in every aspect; refined musicality, tightness, and output levels suitable for a 18" driver. It is also engineered to operate perfectly in sync (in phase) with our Infrasonic subwoofers: THE24/32/50/80 SUB PRO SEALED when there is a desire to reproduce movie content below 20Hz with the same authority, precision, and musicality. Compared to conventional subwoofer motor concepts, the ultra-modern double-gap motor of this custom-made 18"" driver with two outer and two inner voice-coils enables more linear travel and much faster directional changes with higher sound power and significantly lower power compression.
Compared to conventional subwoofer motor concepts, the ultra-modern double-gap motor of this custom-made 18" driver with two outer and two inner voice-coils enables more linear travel and much faster directional changes with higher sound power and significantly lower power compression.
Specification
General

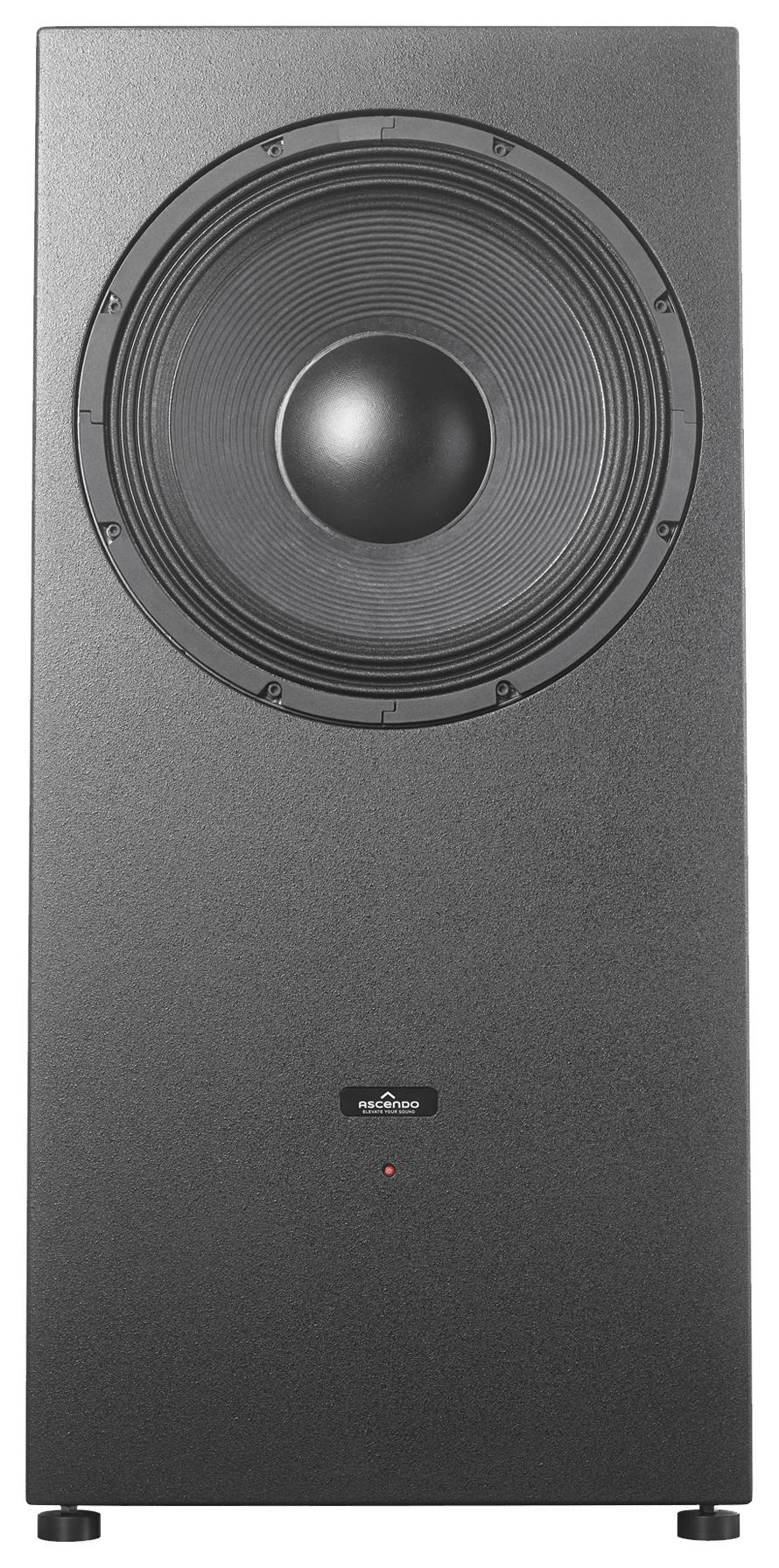

Speaker Type
18” forward-firing, dual gap motor structure - 2 inner and 2 outer voice coils, neodymium motor
XMAX
17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion
Principle
Sealed
Passive | Active
Passive
Recommended Amplifiers
1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 72 Vrms, 102 Vpk, 18.0 A; equivalent to 1100 W @ 4 Ω, with correct RMS & peak limiter settings
Recommended ASCENDO Amplifiers
(With DSP-4D: AIA2-6004), DSP4-10K2
Measured Data
SPL Peak (Peak / Half Space 2pi)
Measured Data 136 dB @ 63 Hz 120 dB @ 32 Hz
Frequency Range
Measured Data (without DSP) 60 Hz - 400 Hz / -3 dB 28 Hz - 500 Hz / -15 dB
Power Handling
4000 W
Efficiency
93 dB / 1 W/m 4 pi, 99 dB / 1 W/m 2 pi
Impedance
4 Ω
Directivity Horizontal x Vertical in deg°
360°
Max Linear Air Volume Displacement
1.13 US. liq. gal. | 4.27 L
Input

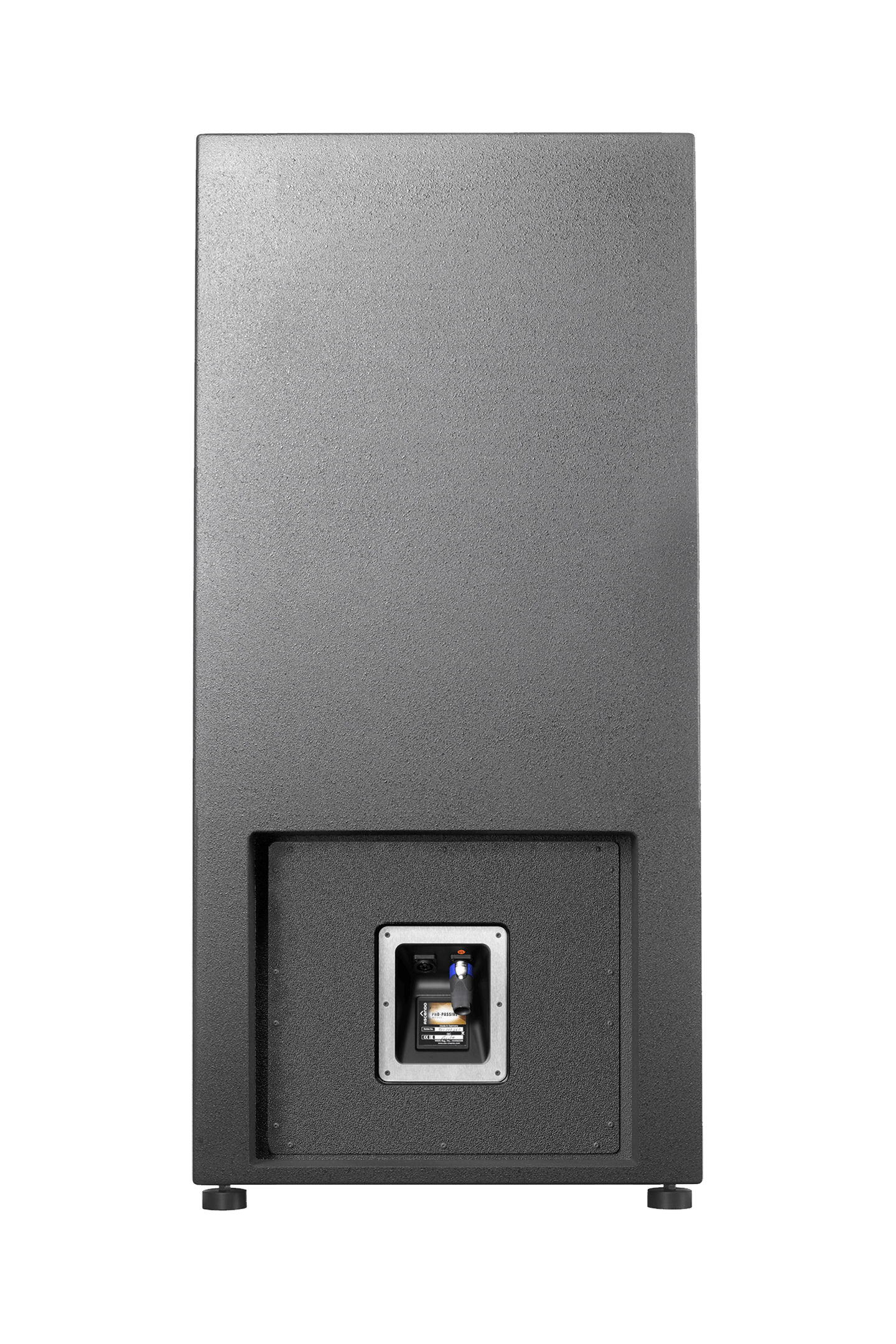

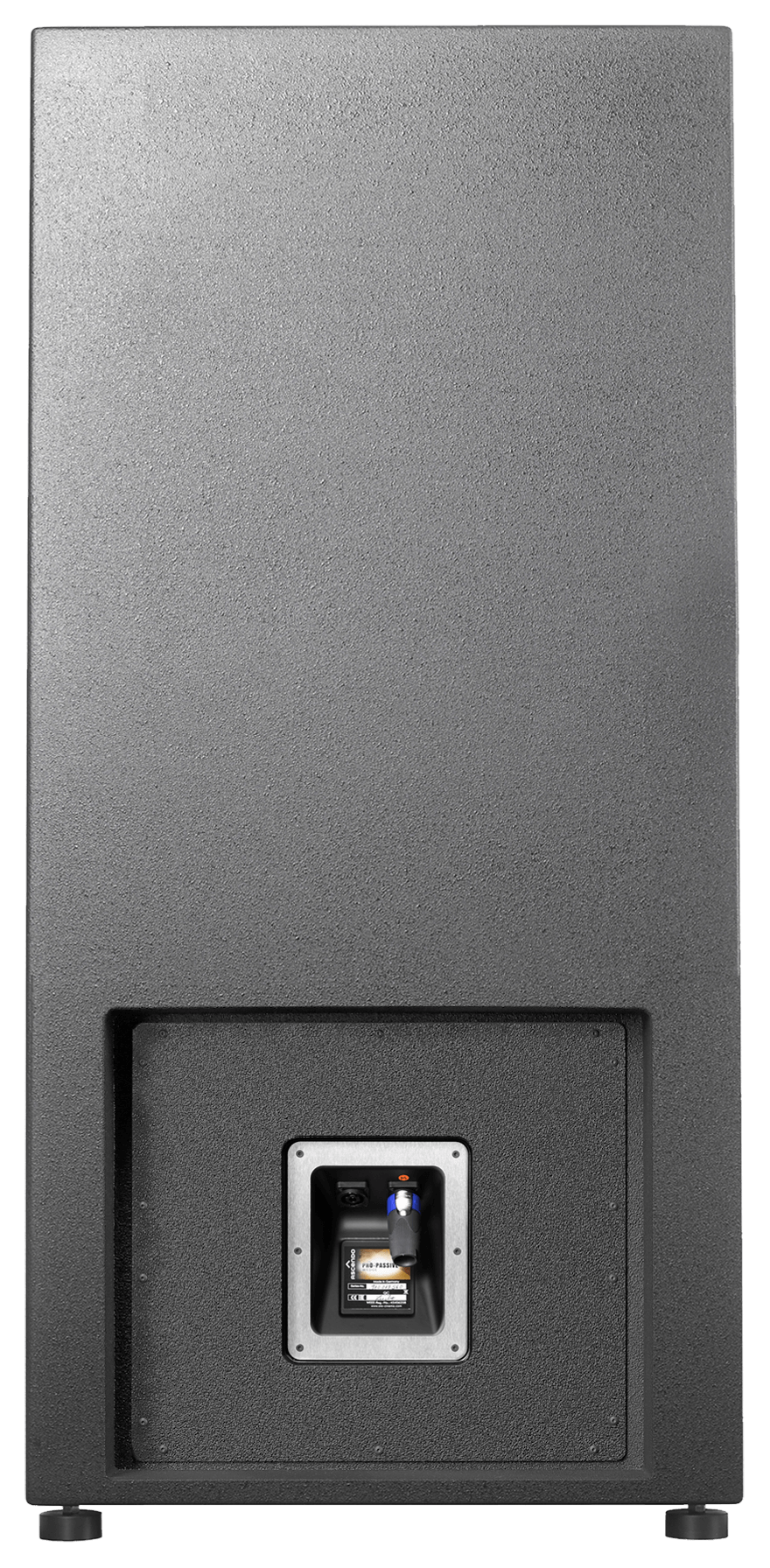

Input Terminal
Neutrik Speakon
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
530 | 1150 | 380 (Height without feet: 1100)
Dimensions (W/H/D) inch (Without Grille)
20 14/16 | 45 4/16 | 14 15/16 (Height without feet: 43 5/16)
Packing Dimensions (W/H/D) mm
700 | 1250 | 500
Packing Dimensions (W/H/D) inch
27 9/16 | 49 3/16 | 19 11/16
Weight
108.03 lbs | 49 kg
Gross Weight
127.87 lbs | 58 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish
Structural paint black
Mounting
Floorstanding with feet
Name

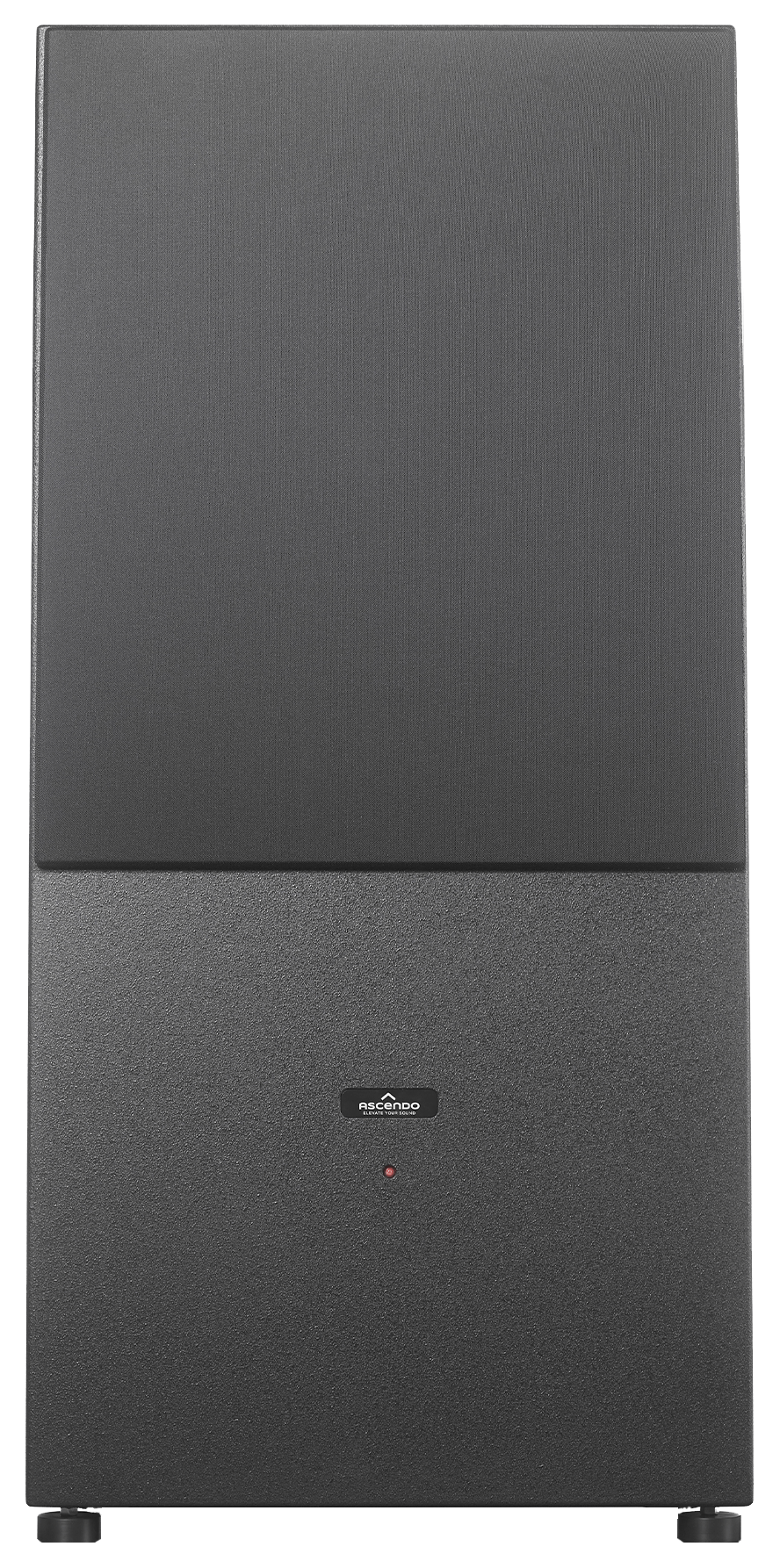

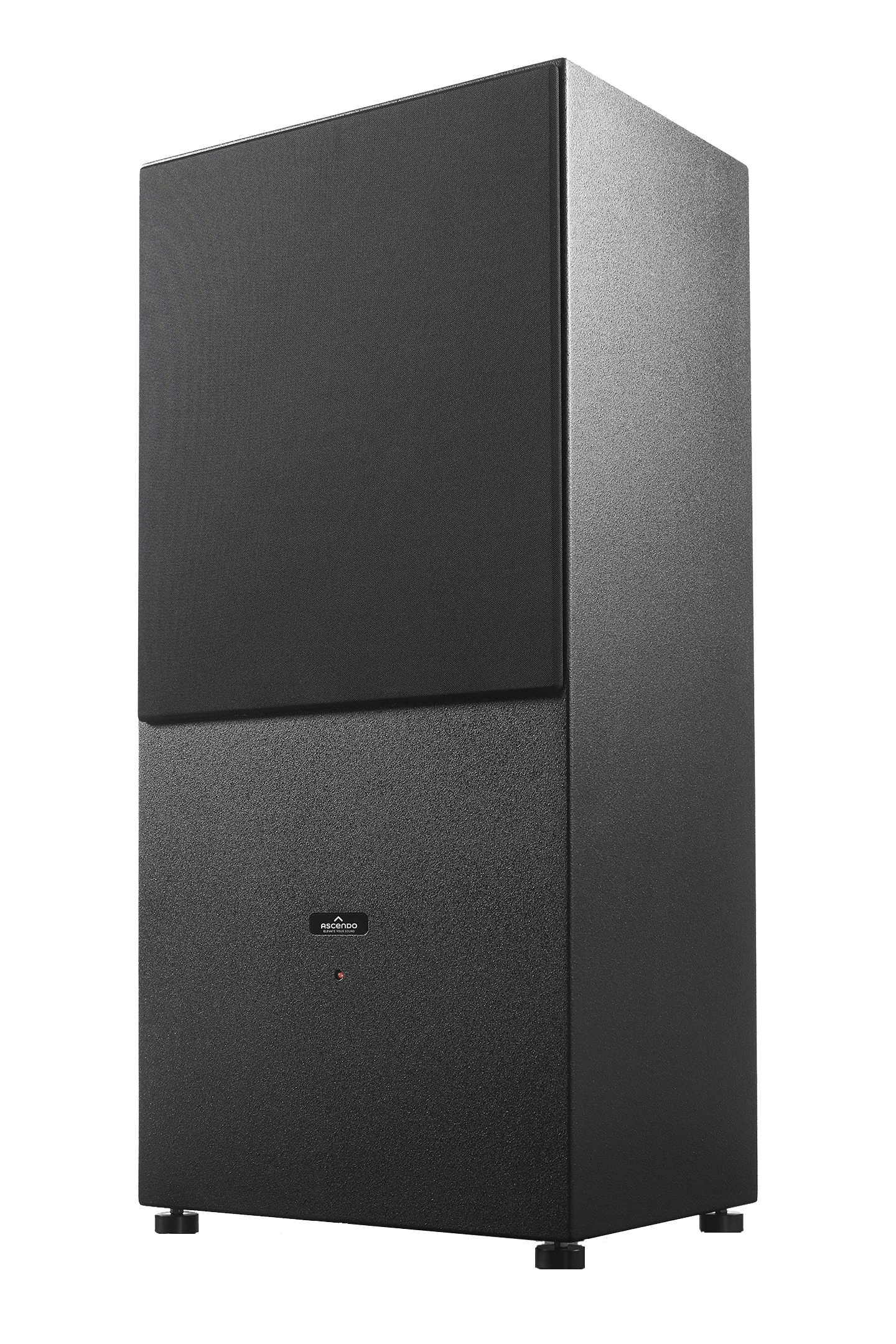

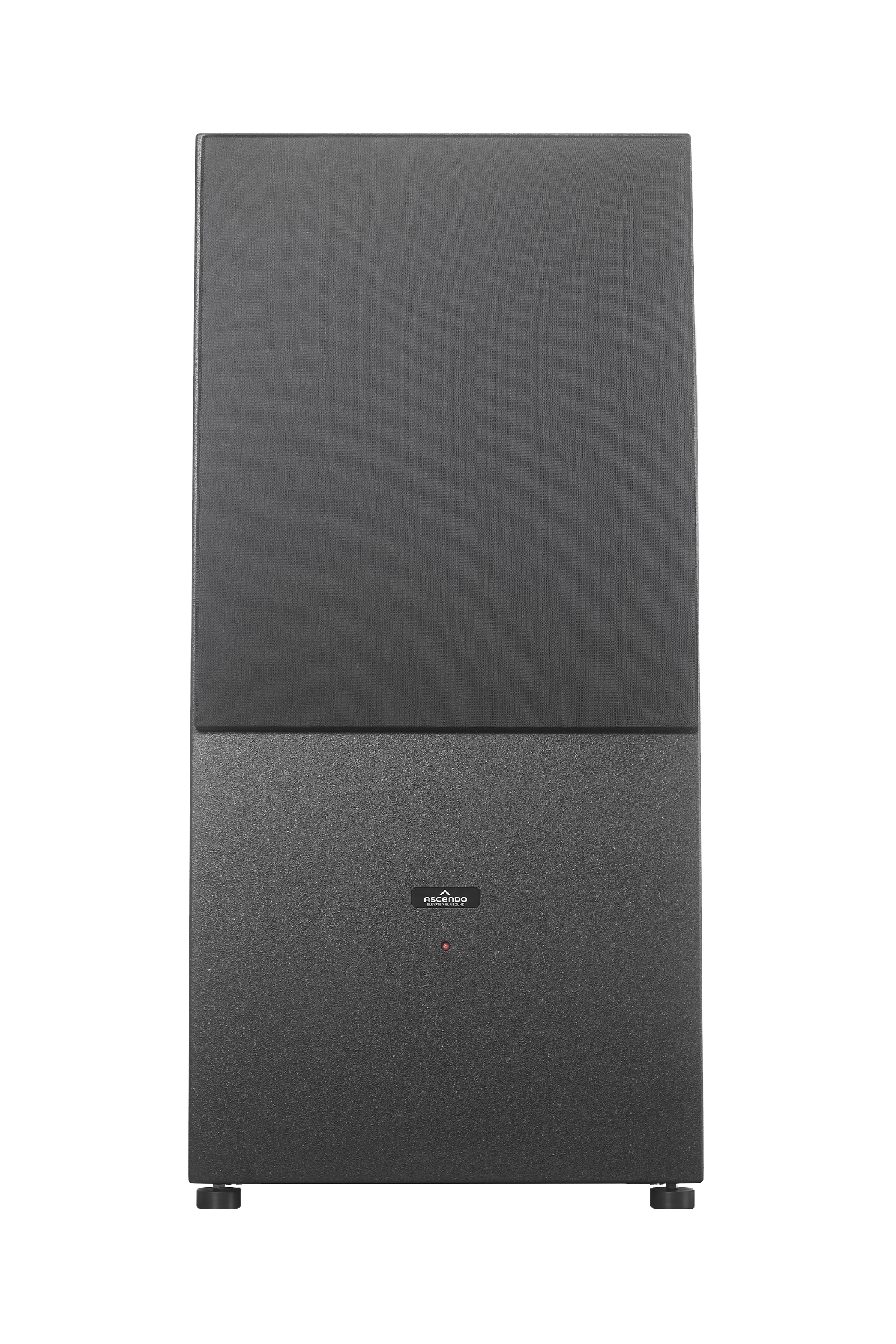

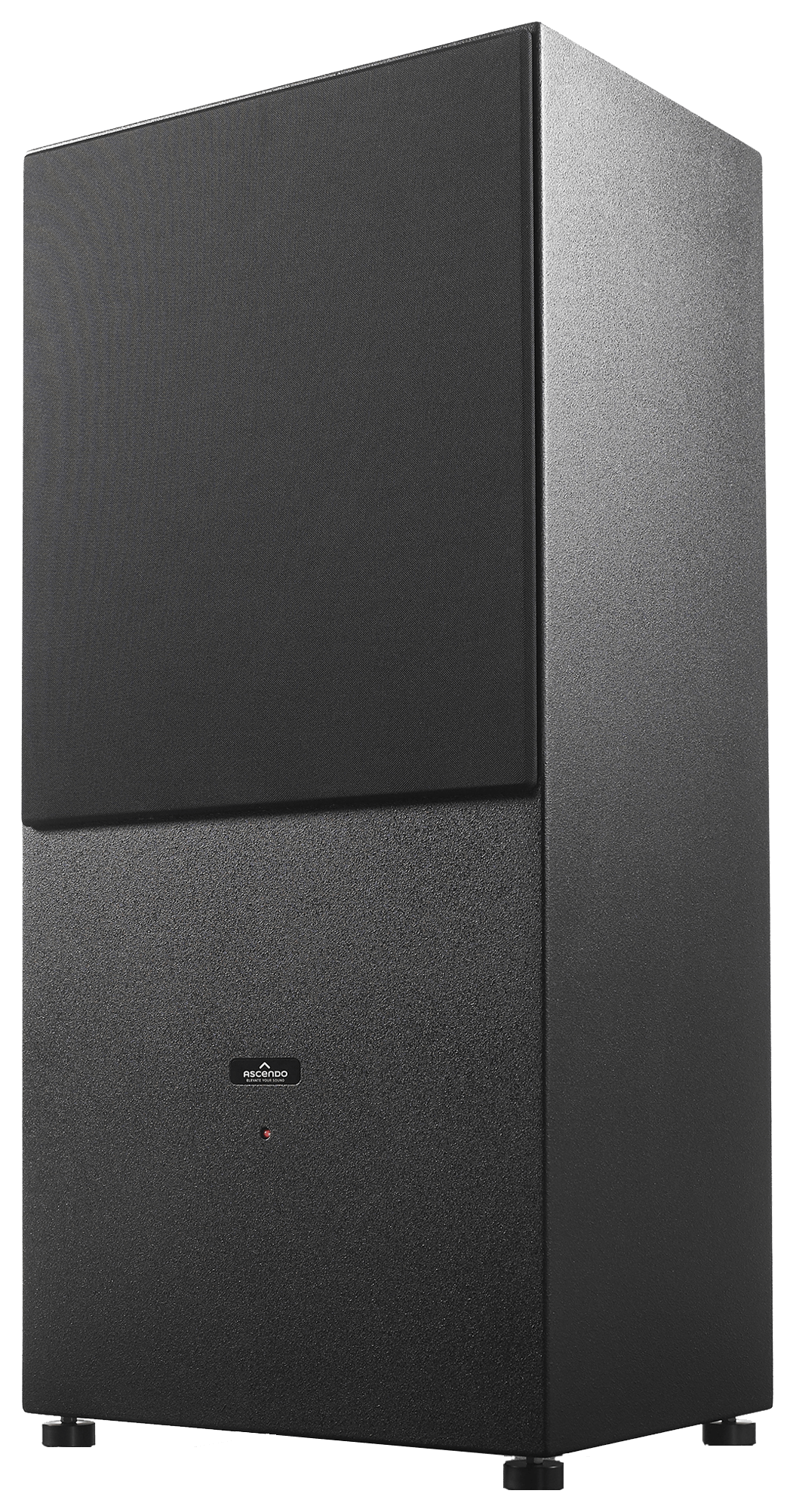

The THE18 SUB PRO PASSIVE SEALED is supplied with a front cover as standard
