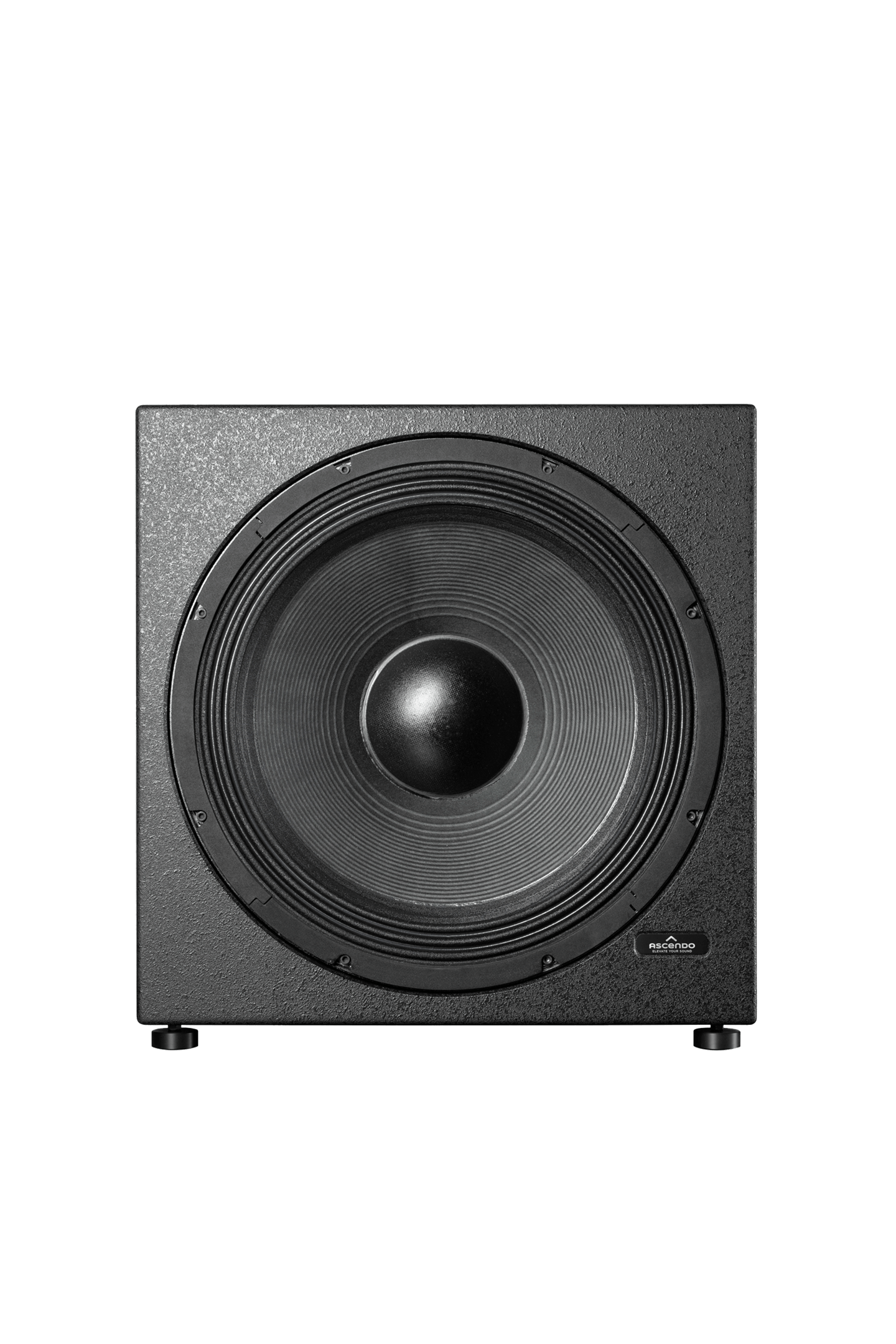

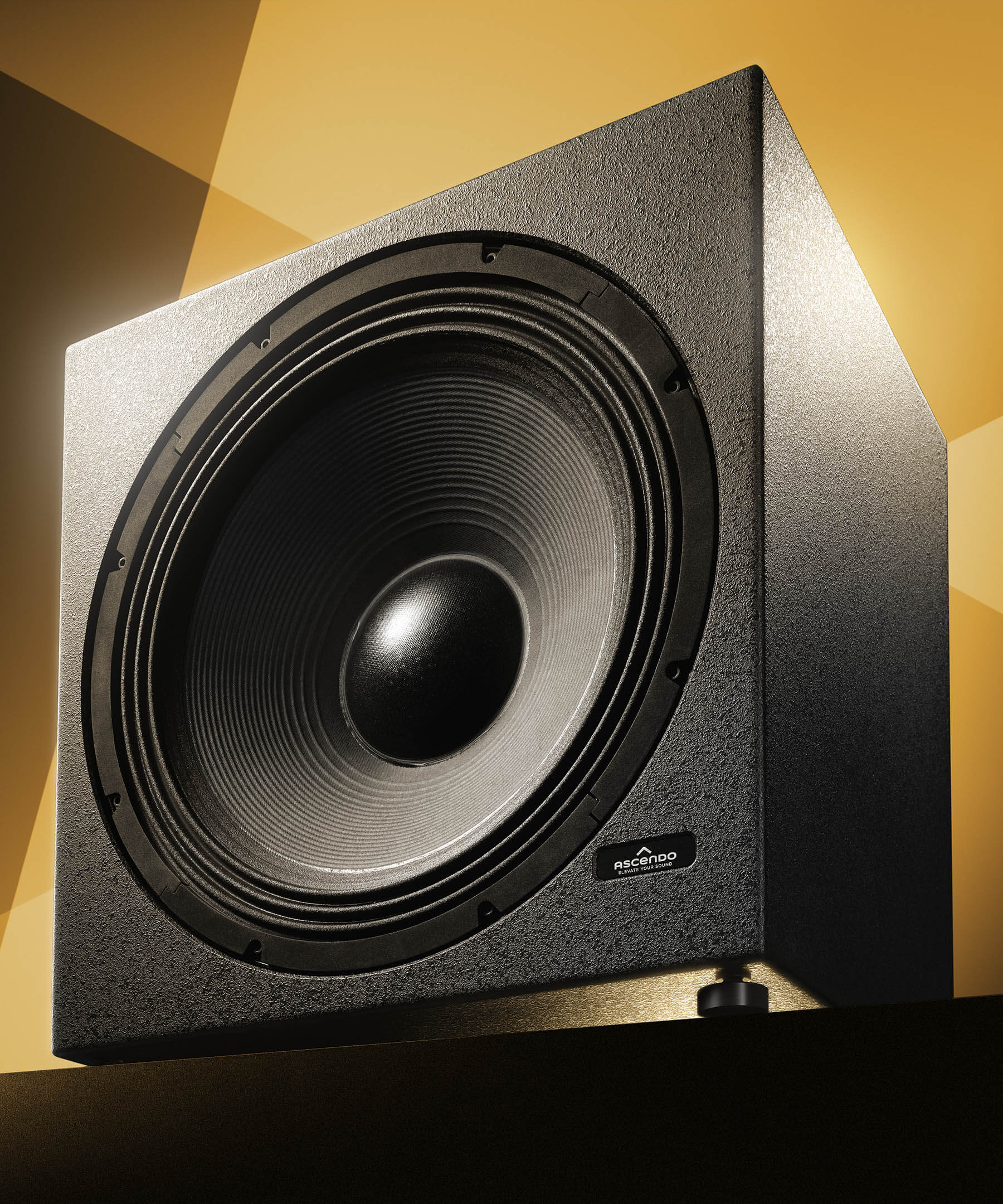

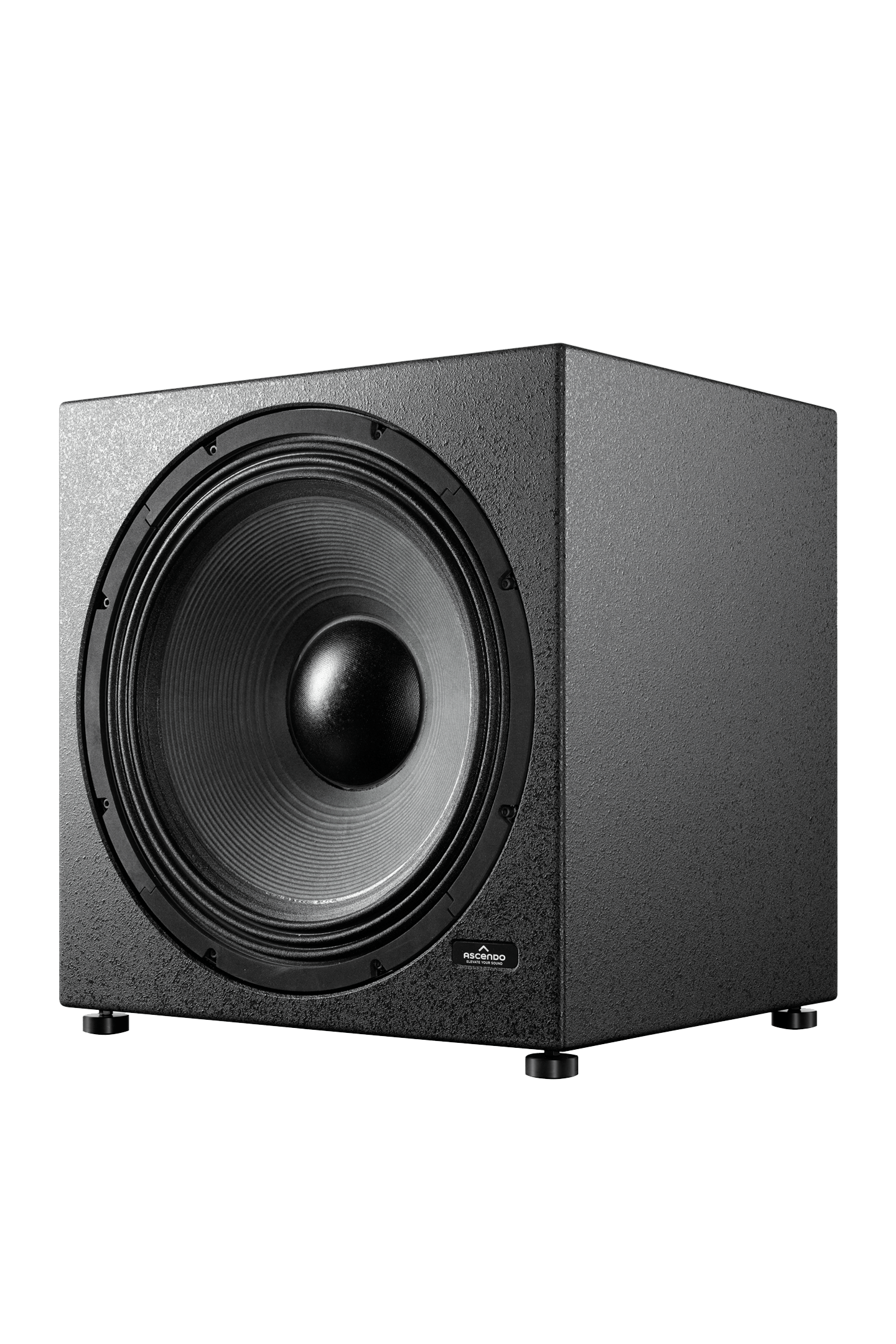

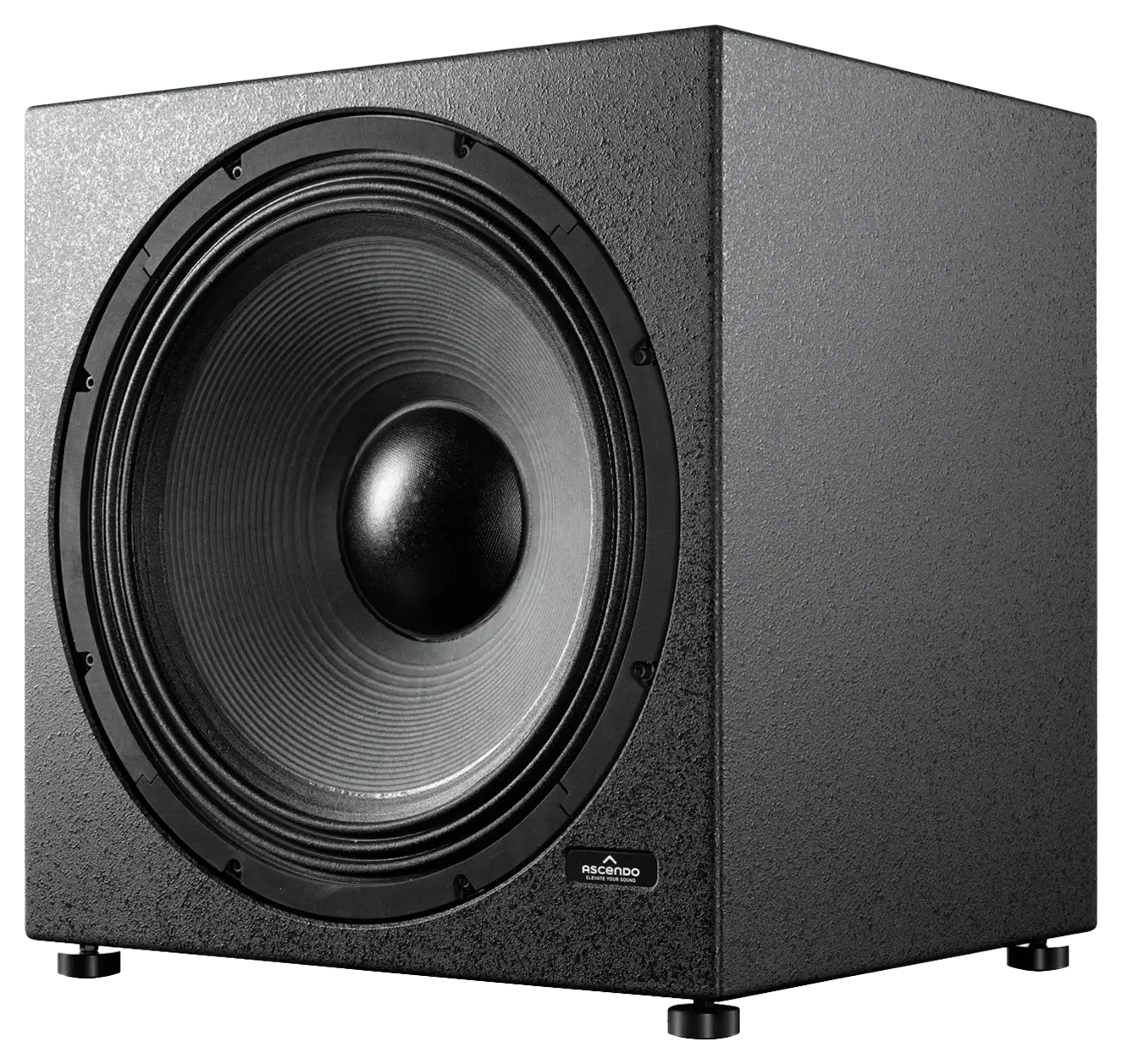

THE21 SUB WF PRO PASSIVE SEALED
Overview
Description
The21 SUB WF PRO PASSIVE SEALED is an application-specific version of our highly regarded The21 SUB PRO PASSIVE SEALED. The WF designation in the model name stands for WaveForming. Use of Trinnov’s WaveForming technology determines not only the number of subwoofers on both the front and rear walls, but their precise locations on each wall, as well. Taking into consideration the locations of the front wall screen channel loudspeakers and the rear wall loudspeakers, the size and shape of the subwoofer cabinets is critical to ensure both location flexibility and realized performance.
When customers experience the unparalleled output and uncolored sound of The21 SUB WF PRO PS, the measured test results we publish translate perfectly to realized performance. ASCENDO’s policy is to be completely transparent and publish measurements done by independently certified third-party labs to provide factual data, thereby enabling informed, educated decisions. The The21 SUB WF PRO PS subwoofer is so far above and beyond the competition in every aspect; refined musicality, tightness, and output levels suitable for a 21"" driver. It is also engineered to operate perfectly in sync (in phase) with our Infrasonic subwoofers; The24 PRO, The32 PRO, The50 PRO, The80 PRO when there is a desire to reproduce movie content below 20Hz with the same authority, precision, and musicality.
Compared to conventional subwoofer motor concepts, the ultra-modern double-gap motor of this custom-made 21" driver with two outer and two inner voice-coils enables more linear travel and much faster directional changes with higher sound power and significantly lower power compression.
Specification
General
Speaker Type

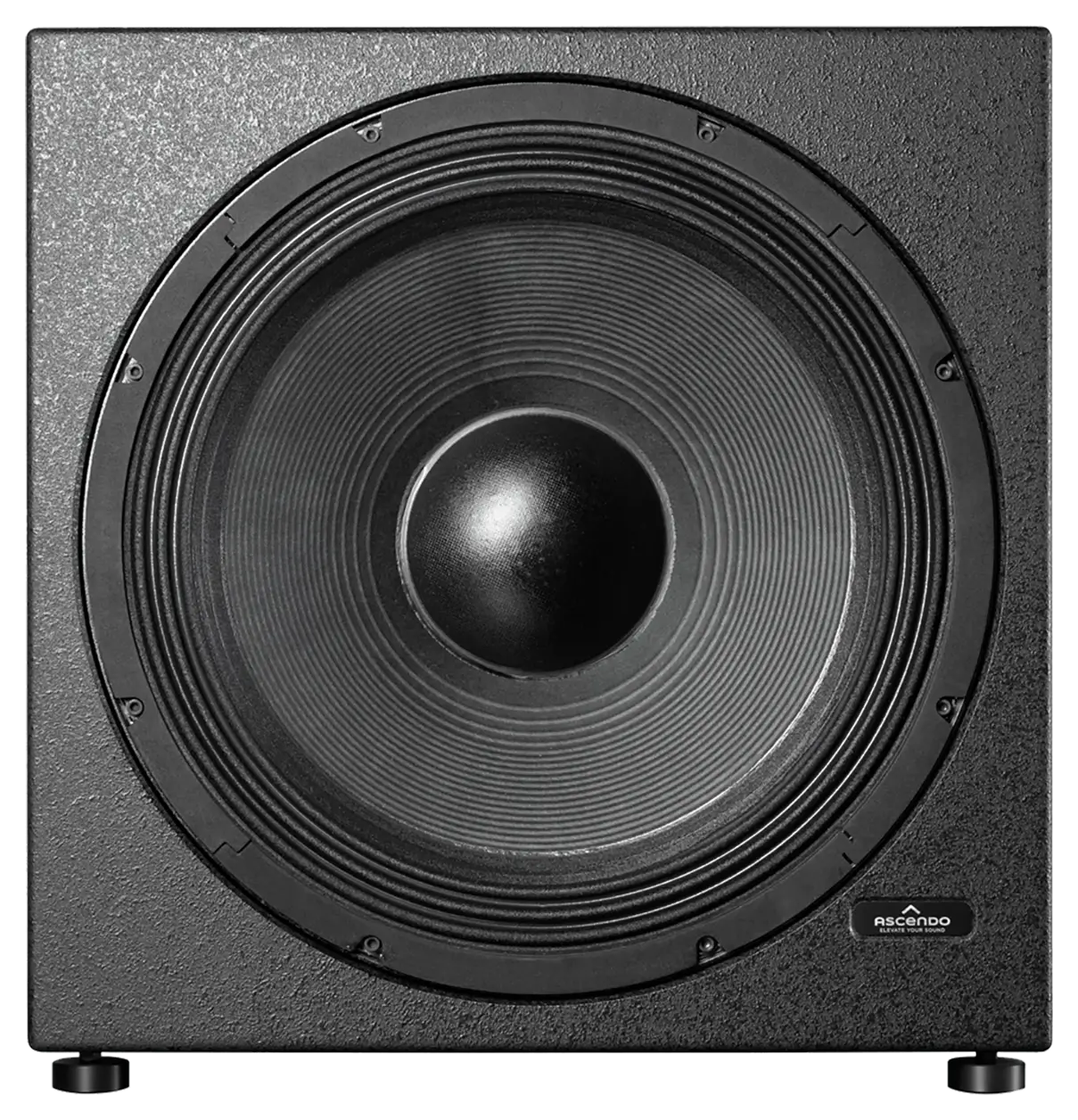

21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor
XMAX
17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion
Principle
Sealed
Passive | Active
Passive
Recommended Amplifiers
1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 109 Vrms, 154 Vpk, 27.3 A; equivalent to 3000 W @ 4 Ω with correct RMS & peak limiter settings
Recommended ASCENDO Amplifiers
(With DSP-4D: AIA2-10K2 IS, AIA2-6004), DSP4-10K2, DSP4-20K2
Measured Data
SPL Peak (Peak / Half Space 2pi)
Measured Data 139 dB @ 63 Hz 122 db @ 32 Hz
Frequency Range
Measured Data (without DSP) 62 Hz - 500 Hz / -3 dB 28 Hz - 500 Hz / -12 dB
Power Handling
4000 W
Efficiency
93 dB / 1 W/m 4 pi, 99 dB / 1 W/m 2 pi
Impedance
4 Ω
Directivity Horizontal x Vertical in deg°
360°
Max Linear Air Volume Displacement
1.54 US. liq. gal. | 5.82 L
Input
Input Terminal

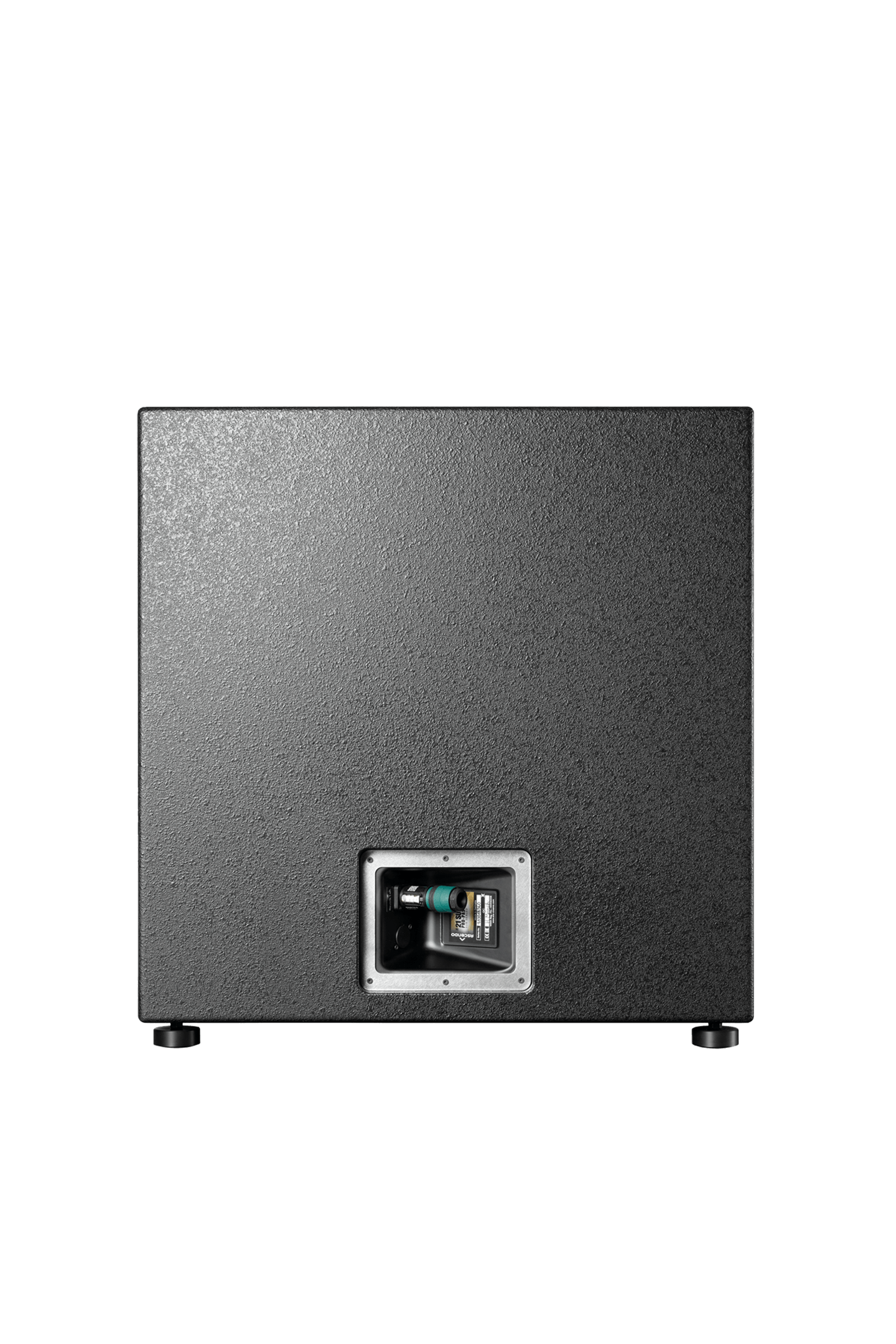

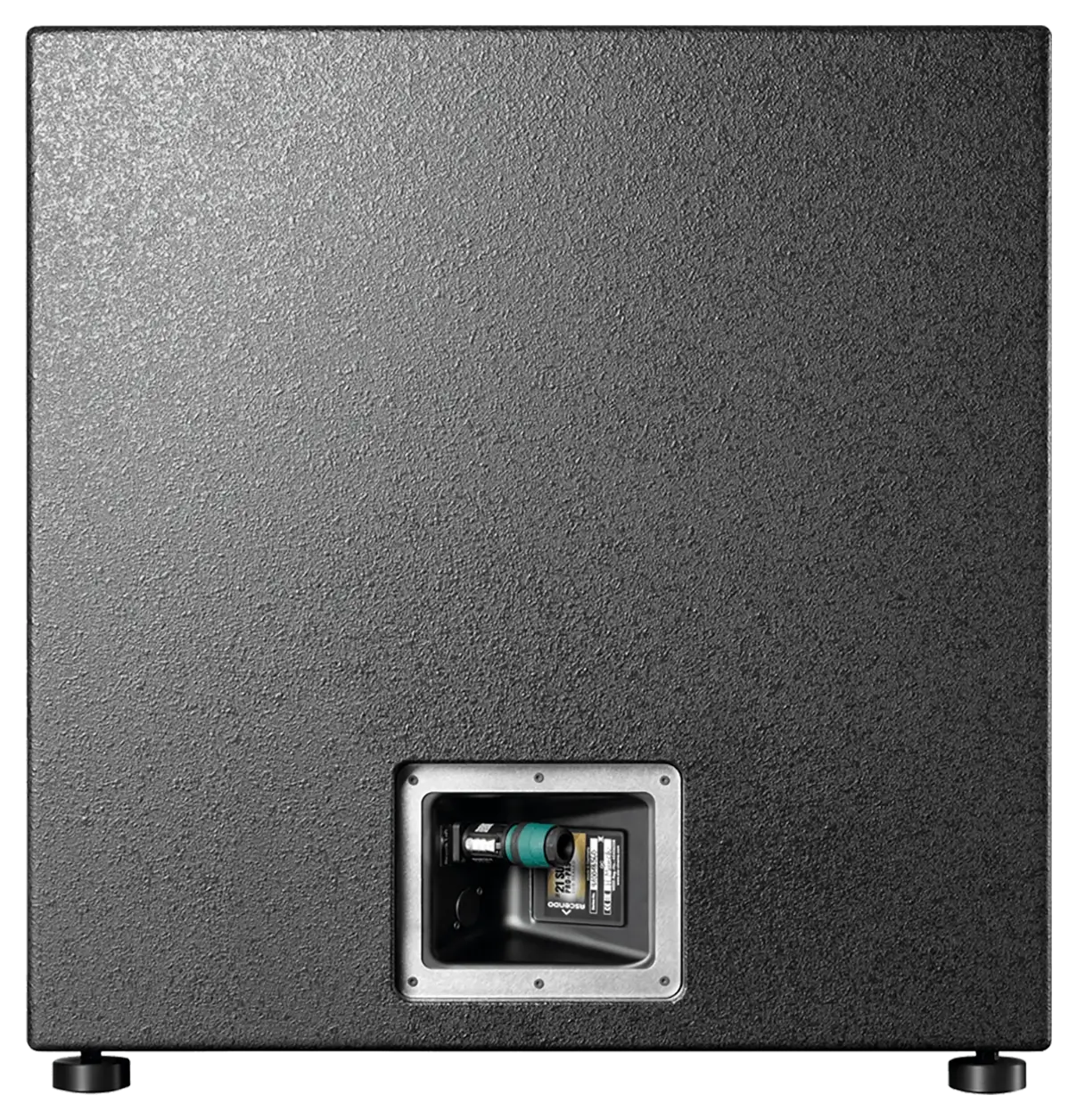

Neutrik Speakon
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
610 | 635 | 518 (Height without feet: 610)
Dimensions (W/H/D) inch (Without Grille)
24 | 25 | 20 6/16 (Height without feet: 24)
Packing Dimensions (W/H/D) mm
710 | 710 | 640
Packing Dimensions (W/H/D) inch
29 2/16 | 27 15/16 | 25 3/16
Weight
94.80 lbs | 43 kg
Gross Weight
110.23 lbs | 50 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish
Structural paint black
Mounting
Floorstanding with feet
Name

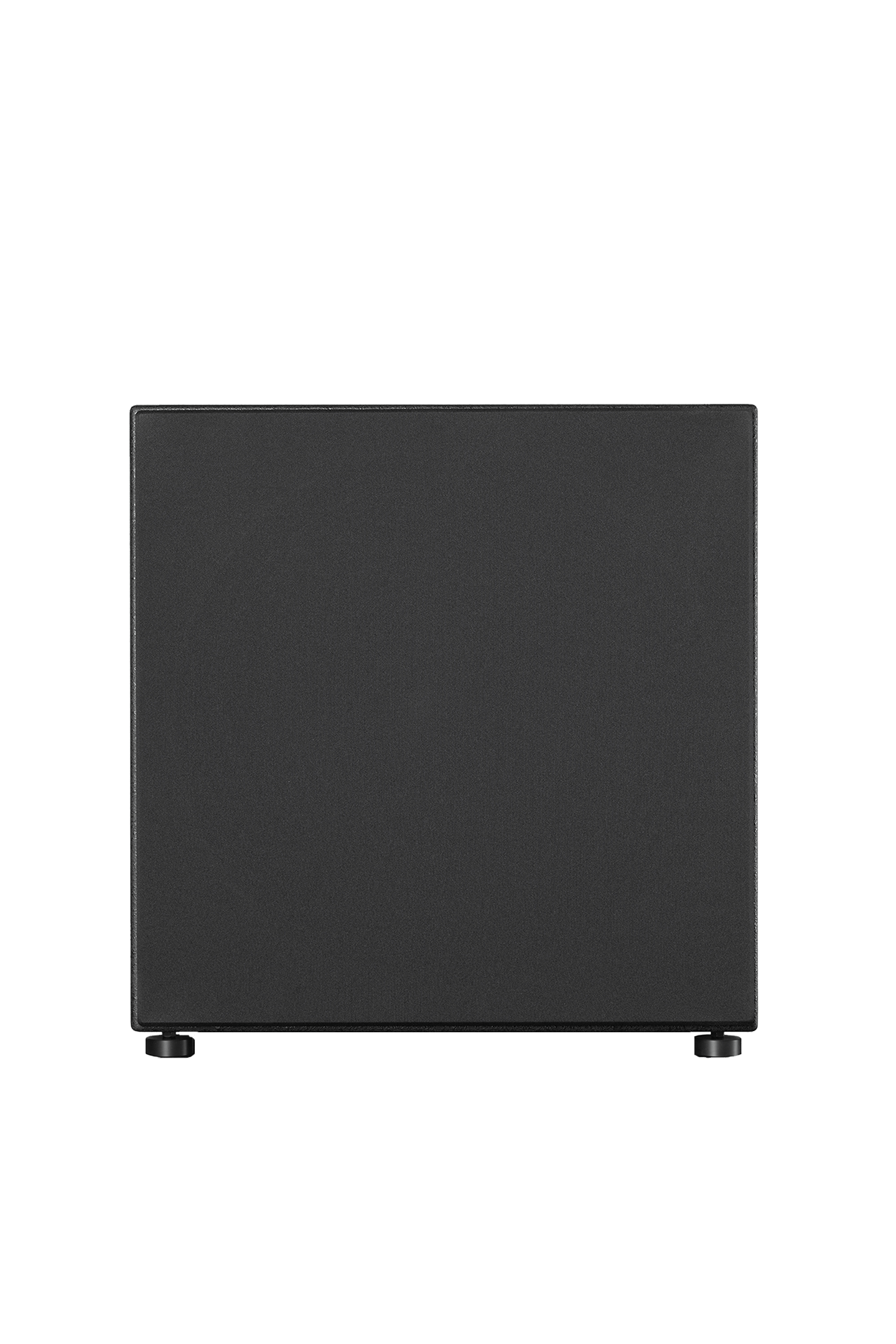

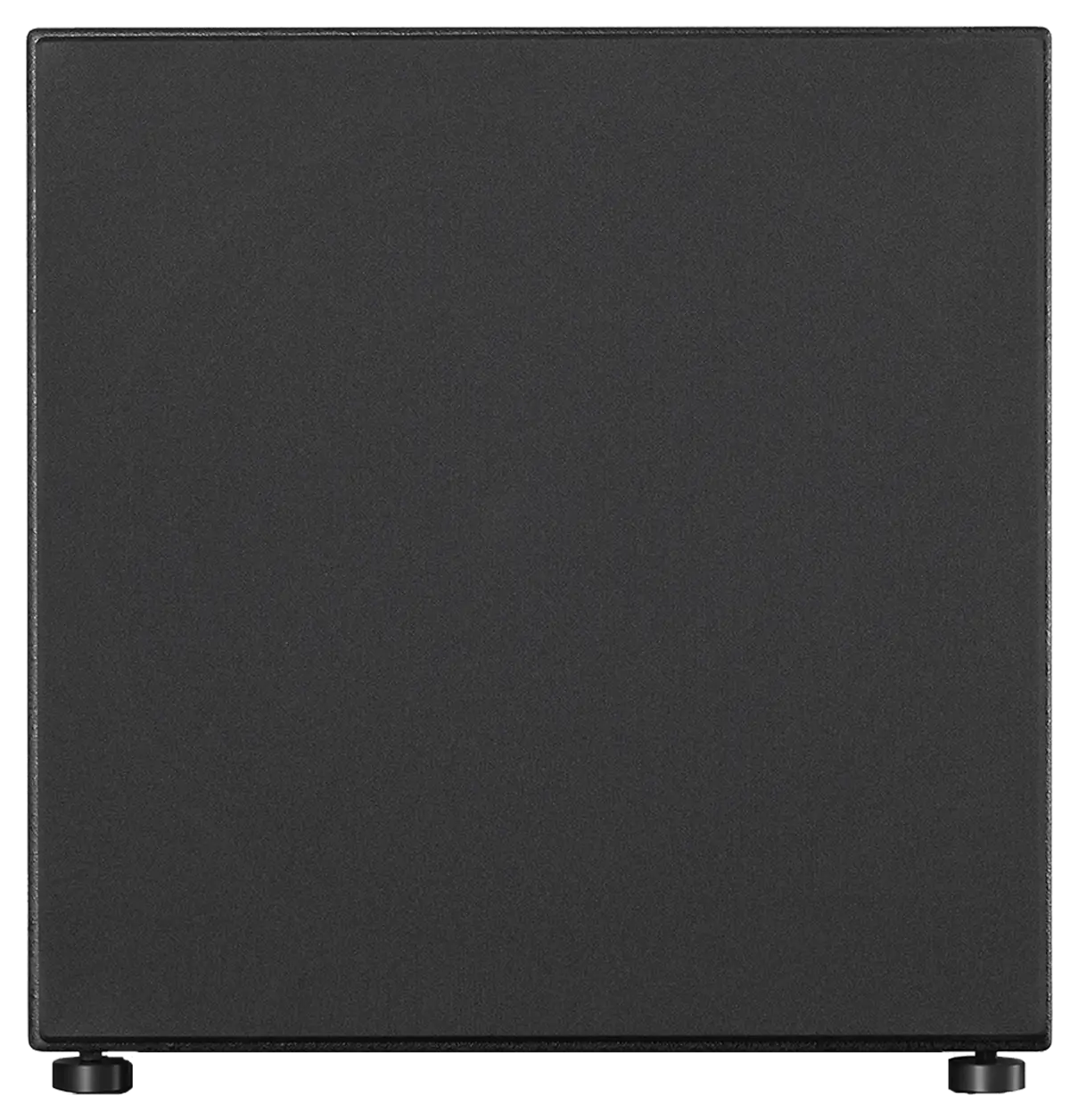

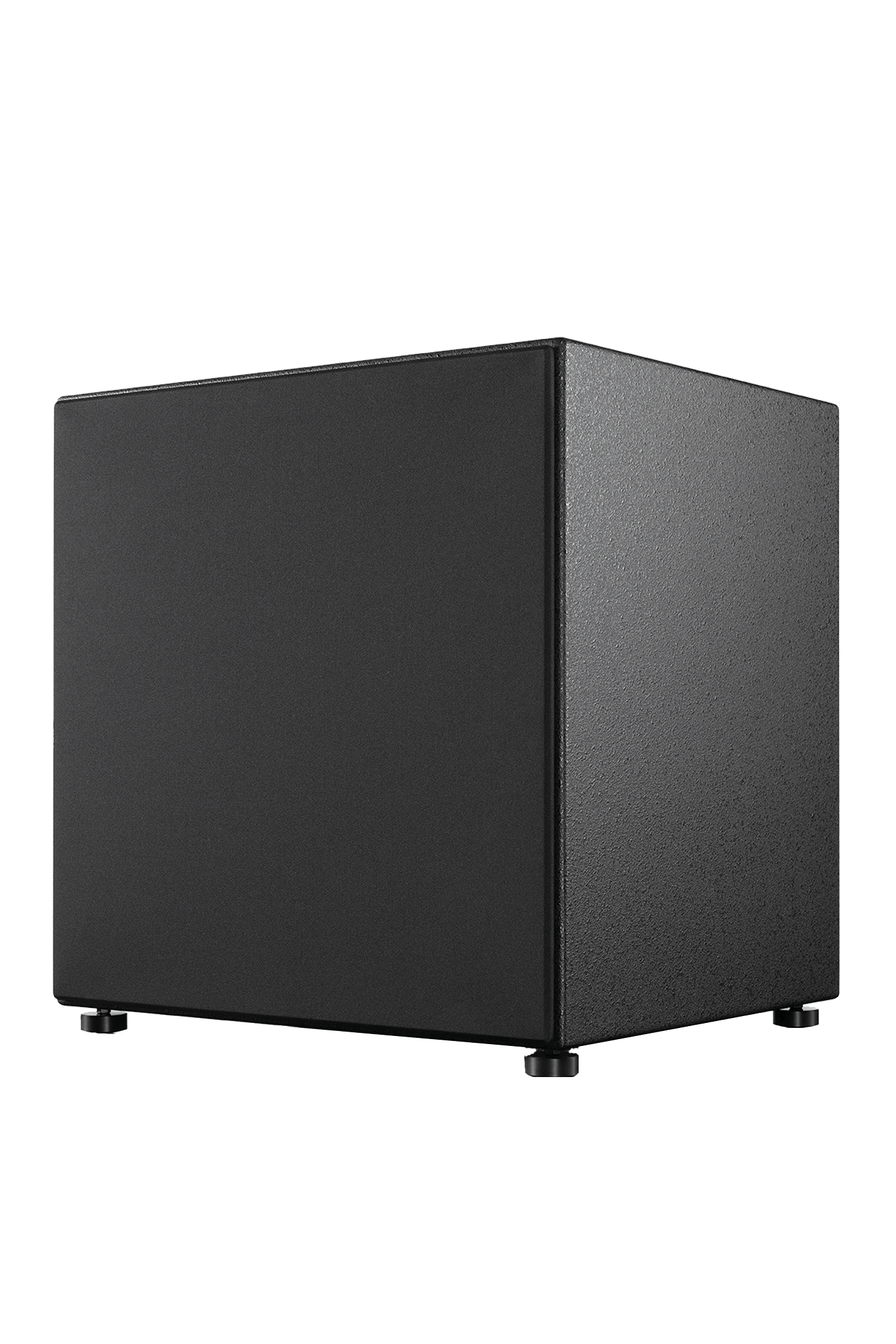

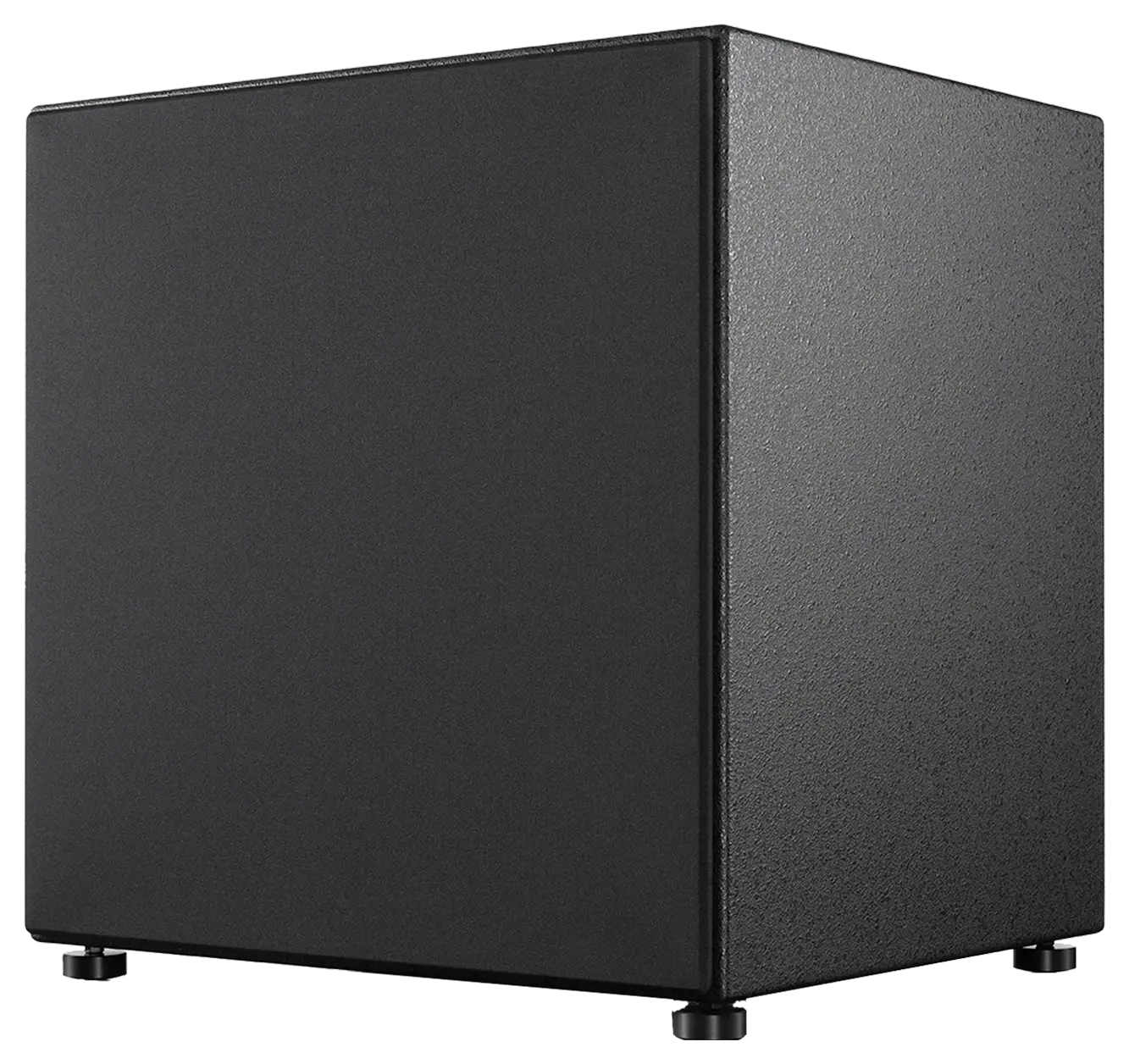

The THE21 SUB WF PRO PASSIVE SEALED is supplied with a front cover as standard
