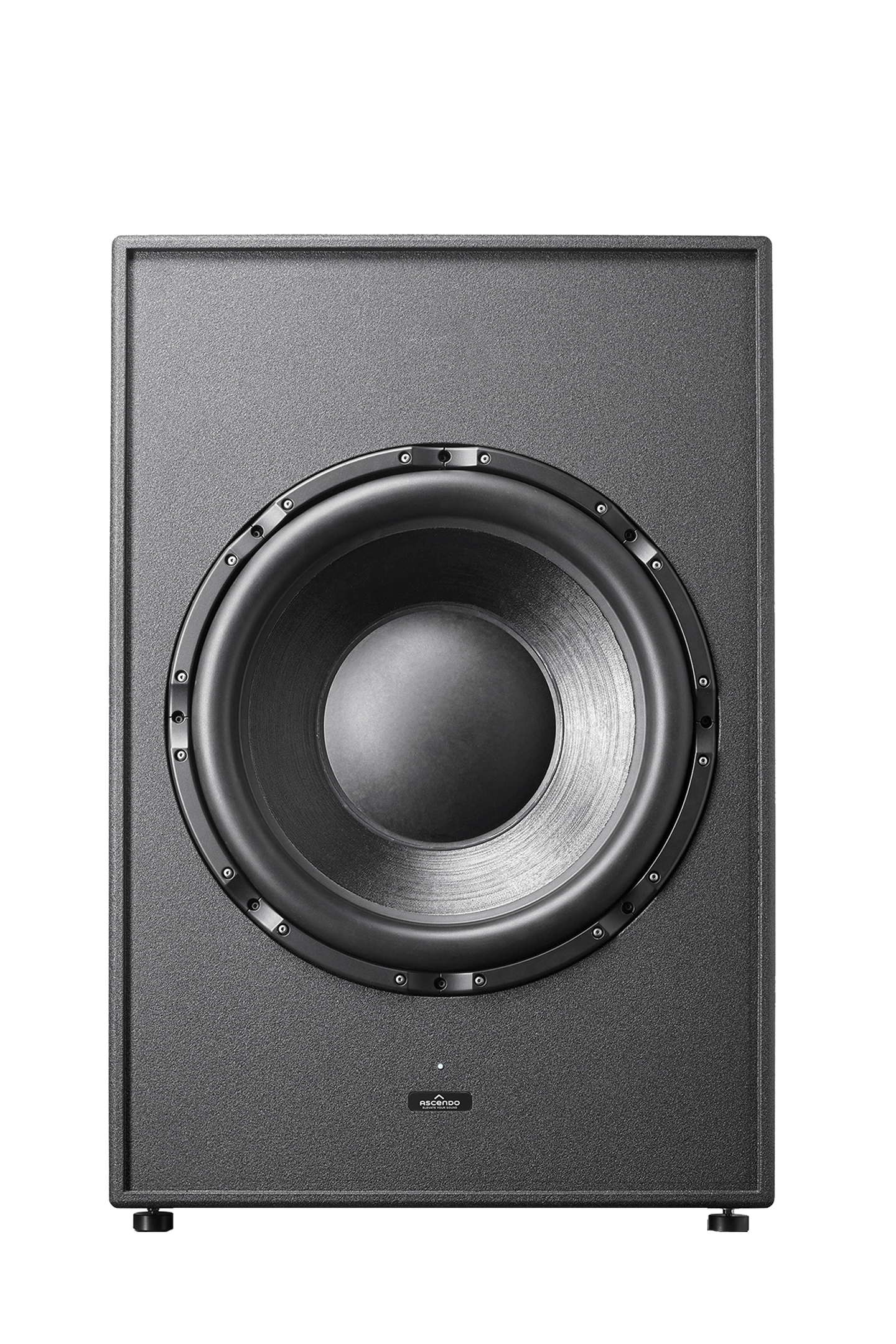

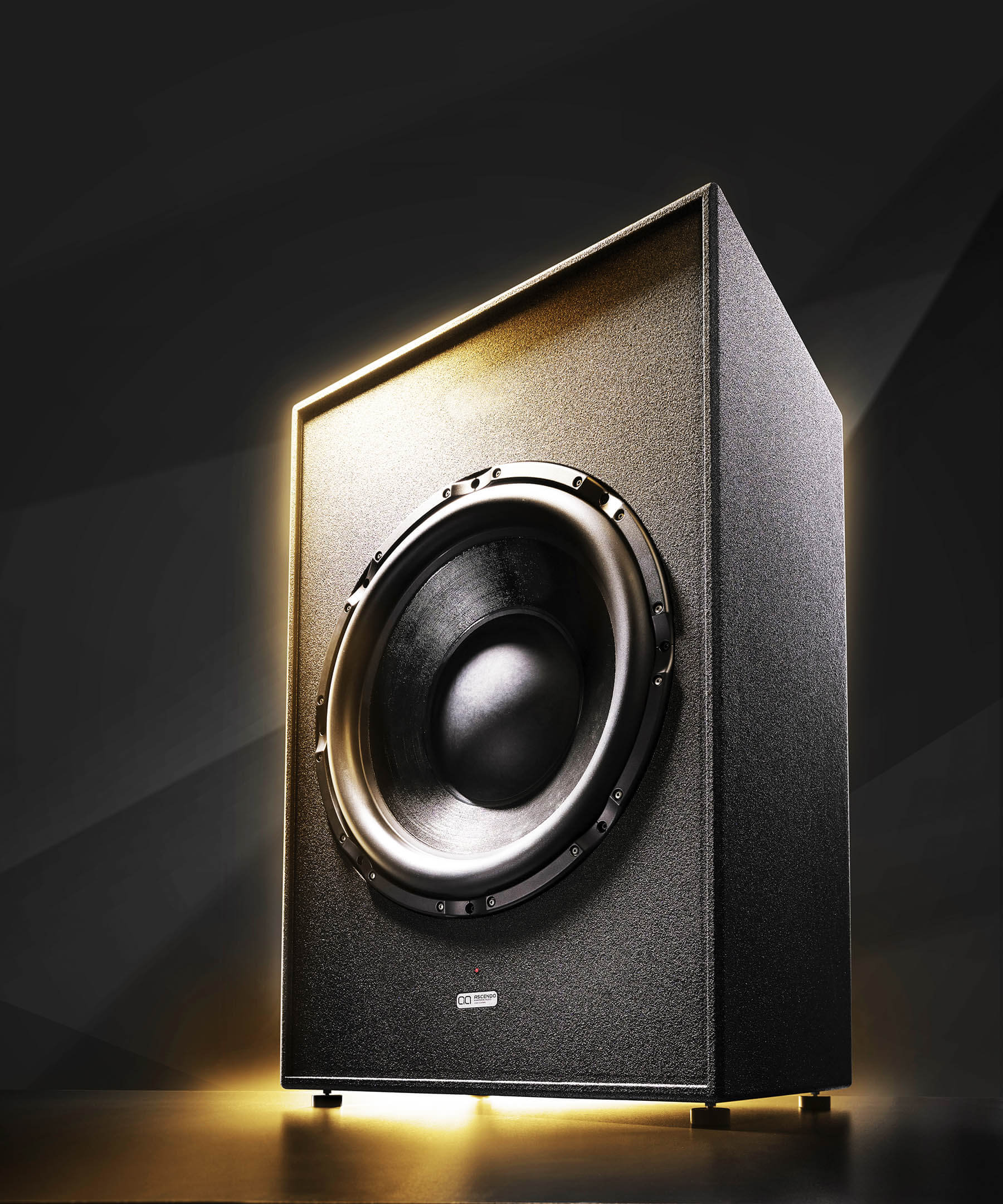

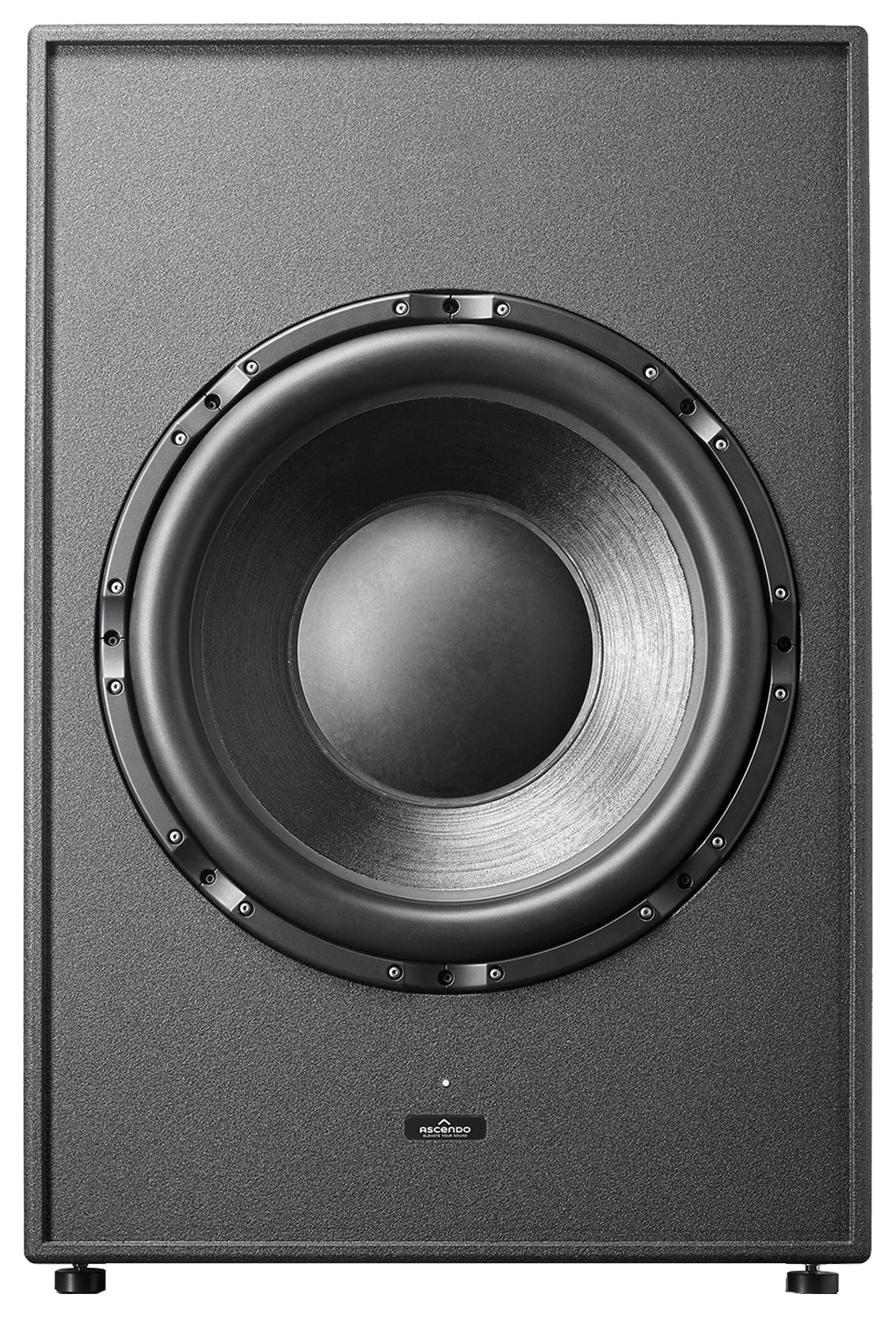

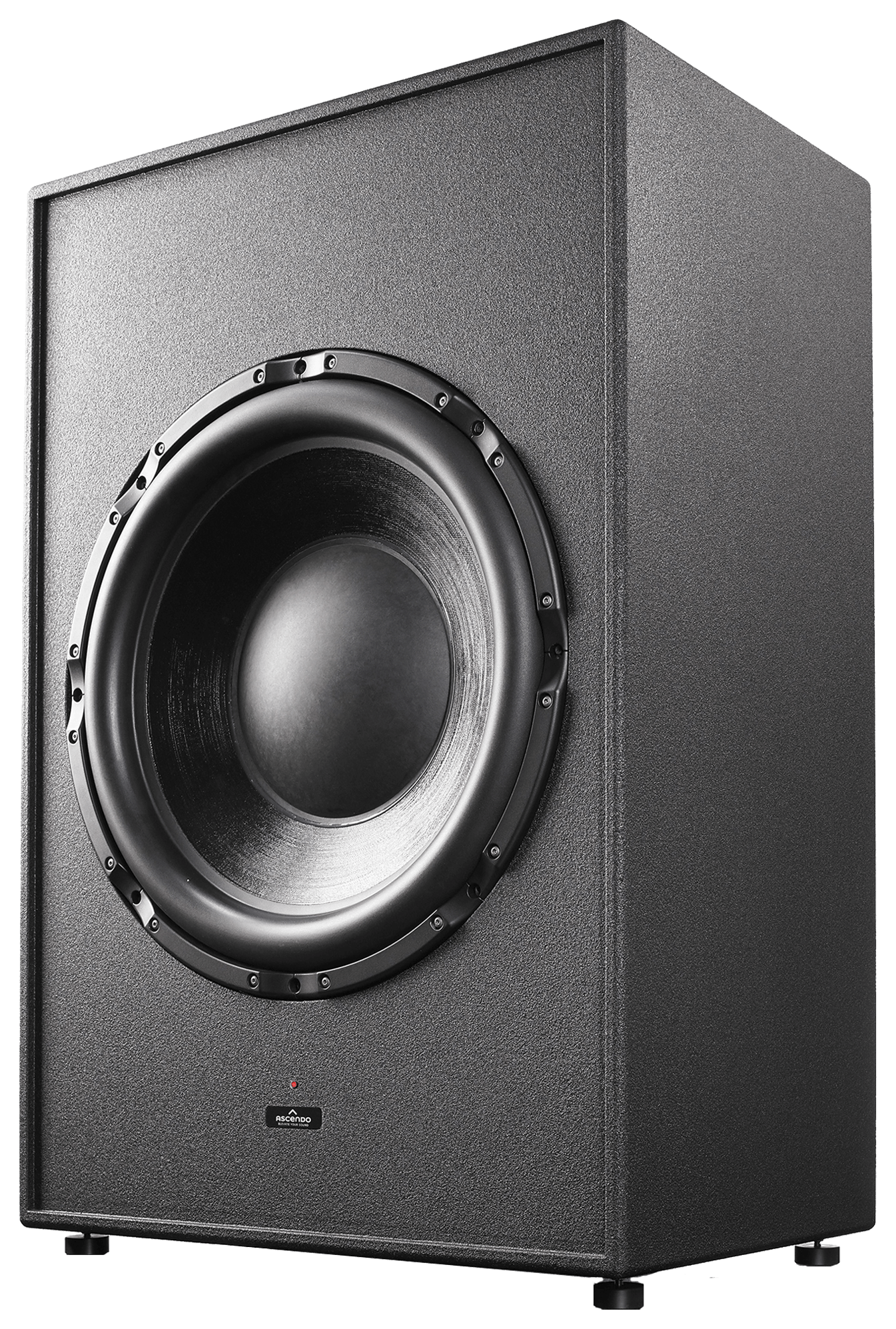

THE24 SUB PRO ACTIVE SEALED
Description
The The24 SUB PRO ACTIVE SEALED infrasub is a statement.
Its huge cone surface area and huge 90 mm of linear stroke - represents a world record for cinema subwoofers - allow it to move a gigantic volume of 10 liters of air per stroke to pressurize the room. Due to its ultra-low resonance frequency and its sealed enclosure design the group delay is several times faster than the smaller 18", 15" or 12" subwoofers at the same frequency. Also the acoustic power output per cubic inch is by far in favour of this unique design compared to stacked multiple smaller subwoofers.
Its ingenious design allows the The24 SUB PRO AS to produce frequencies in the infrasonic frequency range with authority, reaching down lower than subwoofers with a smaller diaphragm surface ever will. At the same time this infrasub renders those notes with much more power, structure and resolution. This ASCENDO-developed 62 cm / 24" super woofer is powered by one of the best high current amplifier designs delivering 6000 watts of power for multiple seconds. Its state-of-the-art DSP control allows to perfectly align the The24 SUB PRO AS to any existing setup by adjusting crossover, phase and ampliture pesponse.
The The24 SUB PRO AS ideally suits not only all types and sizes of cinemas, but also high-end stereo systems. Much of the spacial room information of the recording envirnment in a great audiophile recording is contained in the sub 30Hz audio band. You will hear more details in mid and high frequencies.
The24 SUB PRO AS - more bass pressure, depth, structure, attack, imaging equals more enjoyment.
Specification
General
Speaker Type
24” forward-firing woofer, with dual 5” voice coil
XMAX
45 mm Xmax excursion each direction (90 mm linear), voice coil remaining in homogeneous magnetic field linear and lowest distortion
Principle
Sealed
Passive | Active
Active, built in DSP Amplifier
Measured Data
SPL Peak (Peak / Half Space 2pi)
Measured Data 134 dB @ 40 Hz 120 dB @ 20 Hz 104 dB @ 10 Hz
Frequency Range
Measured Data (without DSP) 28 Hz - 500 Hz / -3 dB 20 Hz - 500 Hz / -15 dB
Directivity Horizontal x Vertical in deg°
360°
Max Linear Air Volume Displacement
5.23 US. liq. gal. | 19.8 L
Power Specifications & Features
Output Power
6000 W
Power Supply Requirements
100-240 VAC, 50-60 Hz (Operating: 90-265 VAC)
Power Consumption
230 VAC - 1/8 rated power (4 Ohm)
4.5 A / 980 W
120 VAC - 1/8 rated power (4 Ohm)
8.6 A / 980 W
Idle
0.5 A / 61 W
Automatic Power Off
Trigger

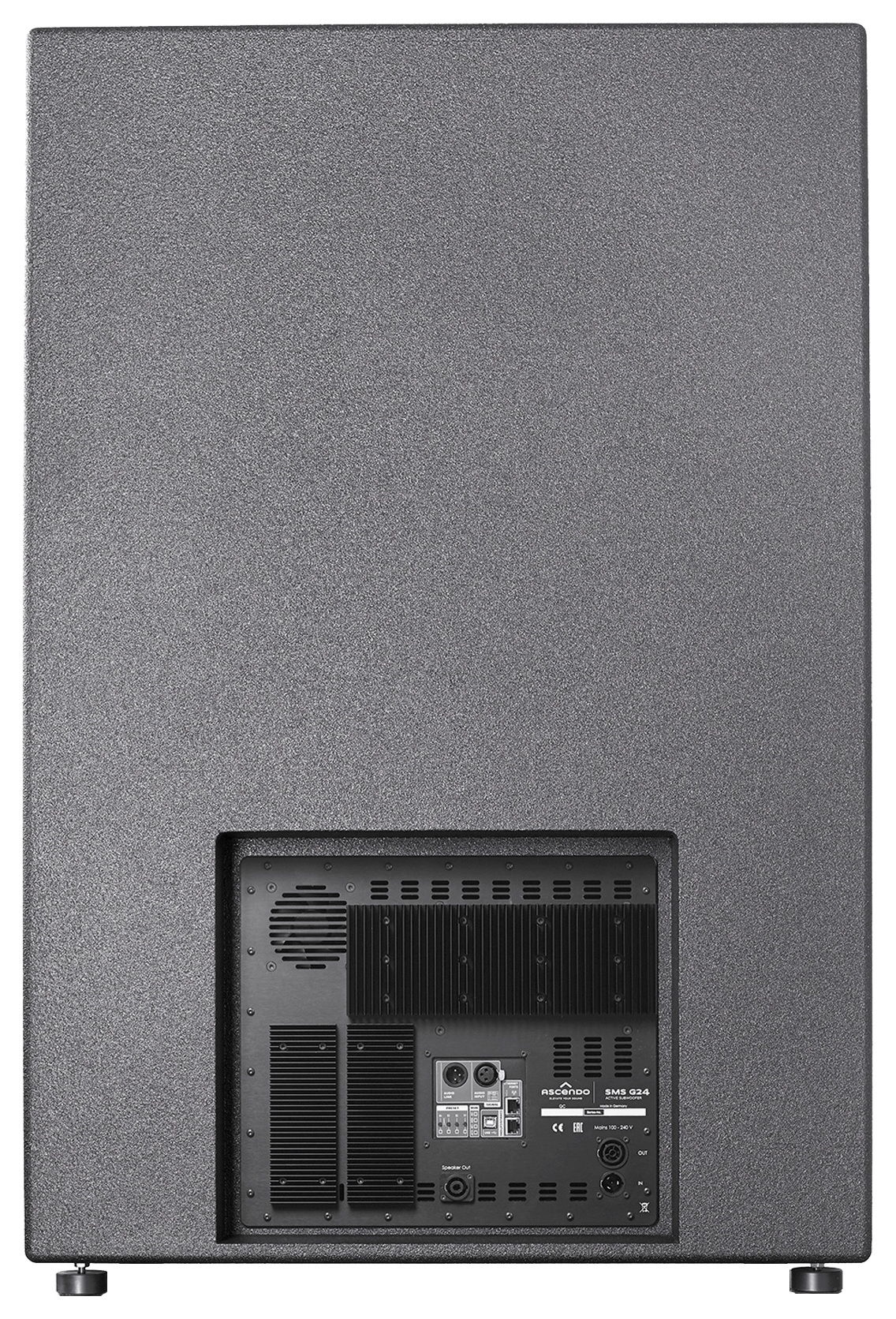

Connections
Input
1 x XLR Balanced
Output
1 x XLR Balanced Link
Power
Neutrik powerCON True 1 in-out
Communications
2 x RJ45 / Daisy Chain
Signal Processing & Control
Protection Features
Turn-on transients, Over-heating, DC, RF, Short-circuit, mismatched loads, ICL™, PMS™
Controller
OCS Software Control
Converter
High Performance 96 kHz / 24 bits AD/DA converters, 64 bit double-precision 96 kHz DSP process
Input IIR EQ Section
Gain, Mute, Phase inversion, Delay (up to 116 ms, 40 m), 10 EQ filters (Parametric, Shelving, LP, HP, BP, SB, AP)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
750 | 1125 | 500 (Height without feet: 1100) (Depth with plug: 500)
Dimensions (W/H/D) inch (Without Grille)
29 1/2 | 44 1/4 | 19 11/16 (Height without feet: 43 5/16) (Depth with plug: 19 11/16)
Packing Dimensions (W/H/D) mm
1200 | 1270 | 800
Packing Dimensions (W/H/D) inch
47 4/16 | 50 | 31 8/16
Weight
268.96 lbs | 122 kg
Gross Weight
297.62 lbs | 135 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish
Structural paint black
Mounting
Floorstanding with feet
