THE24 SUB PRO PASSIVE SEALED
Description

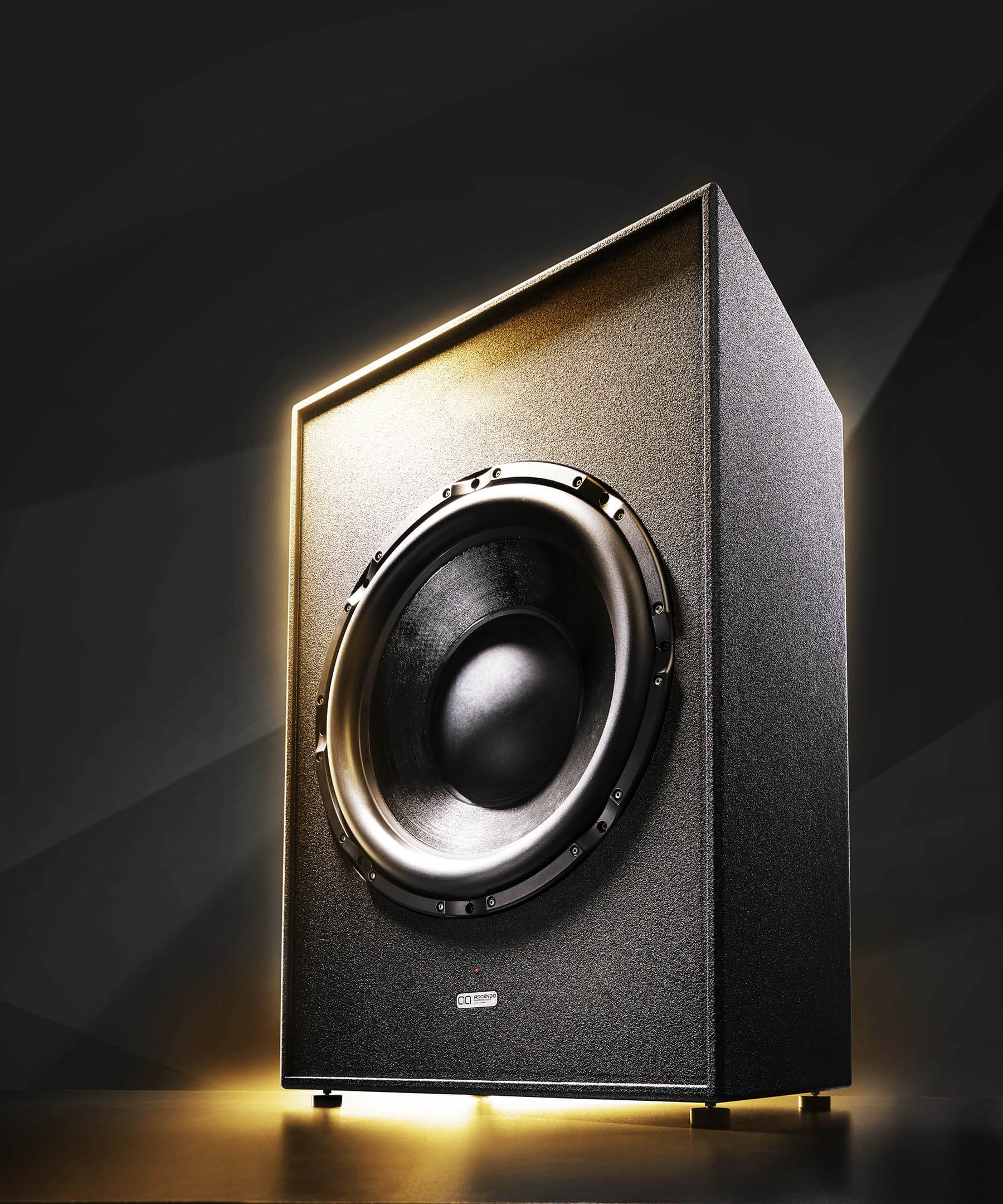

The24 SUB PRO PASSIVE SEALED infrasub is a statement.
Its huge cone surface area and huge 90 mm of linear stroke - represents a world record for cinema subwoofers - allow it to move a gigantic volume of 10 liters of air per stroke to pressurize the room. Due to its ultra-low resonance frequency and its sealed enclosure design the group delay is several times faster than the smaller 18", 15" or 12" subwoofers at the same frequency. Also the acoustic power output per cubic inch is by far in favour of this unique design compared to stacked multiple smaller subwoofers.
Its ingenious design allows the The24 SUB PRO to produce frequencies in the infrasonic frequency range with authority, reaching down lower than subwoofers with a smaller diaphragm surface ever will. At the same time this infrasub renders those notes with much more power, structure and resolution.
The The24 SUB PRO ideally suits not only all types and sizes of cinemas, but also high-end stereo systems. Much of the spacial room information of the recording envirnment in a great audiophile recording is contained in the sub 30Hz audio band. You will hear more details in mid and high frequencies.
Specification
General
Speaker Type

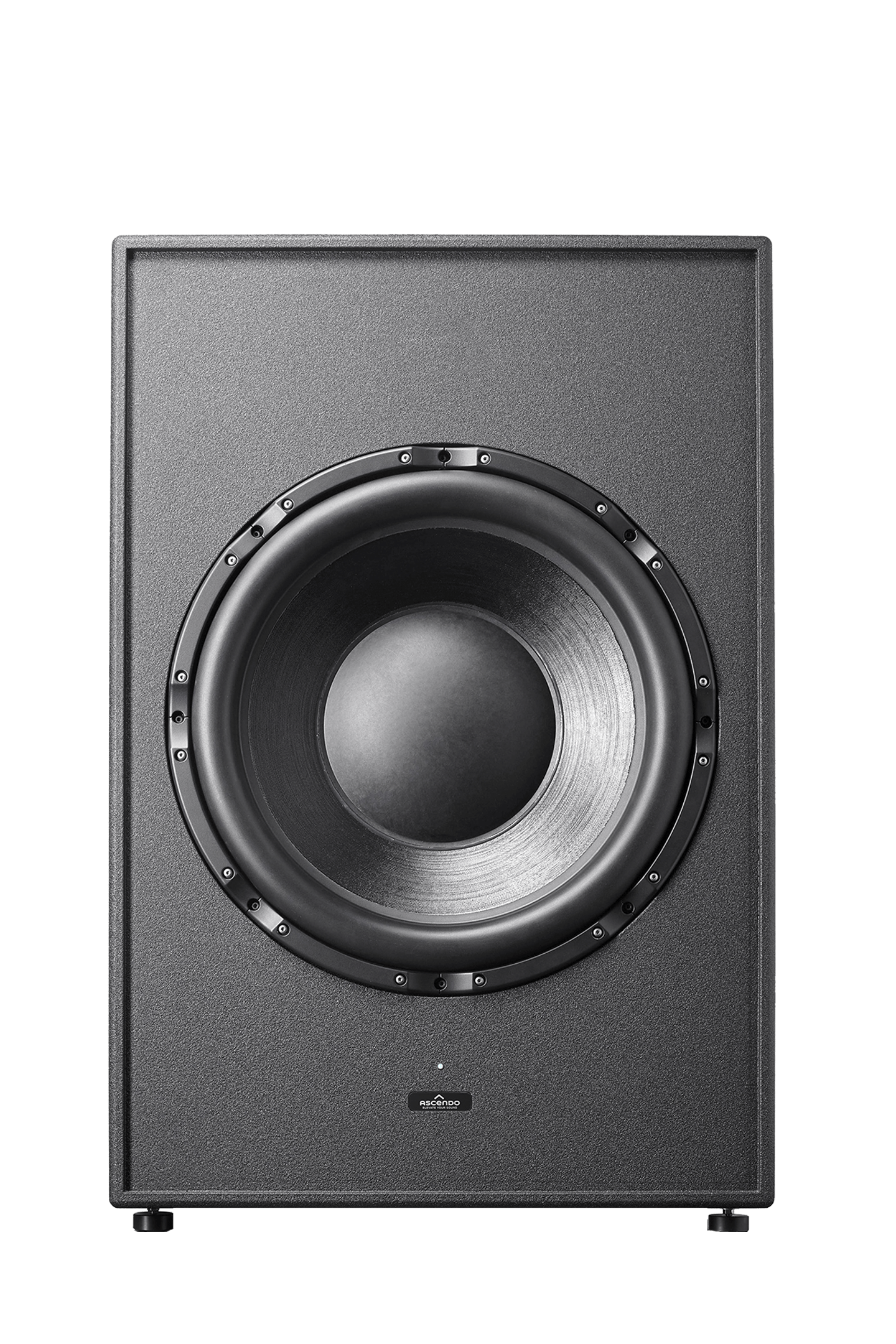

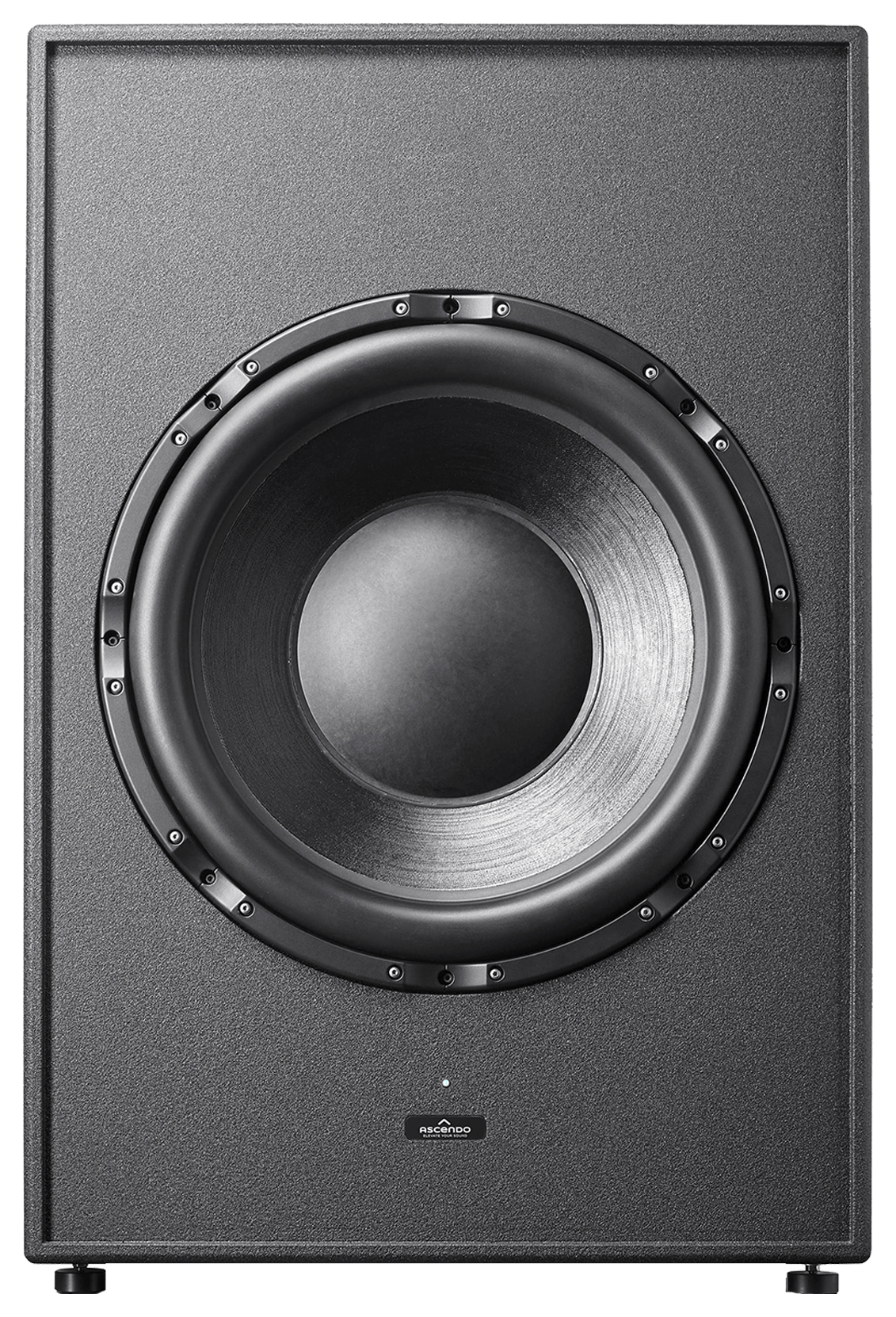

24” forward-firing woofer, with dual 5” voice coil
XMAX
45 mm excursion each direction (90 mm linear), voice coil remaining in homogeneous magnetic field, linear and lowest distortion
Principle
Sealed
Passive | Active
Passive
Recommended Amplifiers
lCh DSP + 2 Amp. channels are required. Min. recommended amplifiers: 2 x 99 Vrms, 140 Vpk, 25 A; equivalent to 2500 W @ 4 Ω per channel, total 5000 W with correct RMS & peak limiter settings
Recommended ASCENDO Amplifiers
(With DSP-4D: AIA2-10K2 IS)
Measured Data
SPL Peak (Peak / Half Space 2pi)
Measured Data 134 dB @ 40 Hz 120 dB @ 20 Hz 104 dB @ 10Hz
Frequency Range
Measured Data (without ext. DSP) 28 Hz - 500 Hz / -3 dB 20 Hz - 500 Hz / -15 dB
Power Handling
2 x 2500 W
Efficiency
87 dB / 1 W/m 4 pi, 93 dB / 1 W/m 2 pi
Impedance
Dual Voice Coil, 4 Ω each
Directivity Horizontal x Vertical in deg°
360°
Max Linear Air Volume Displacement
5.23 US. liq. gal. | 19.8 L
Input

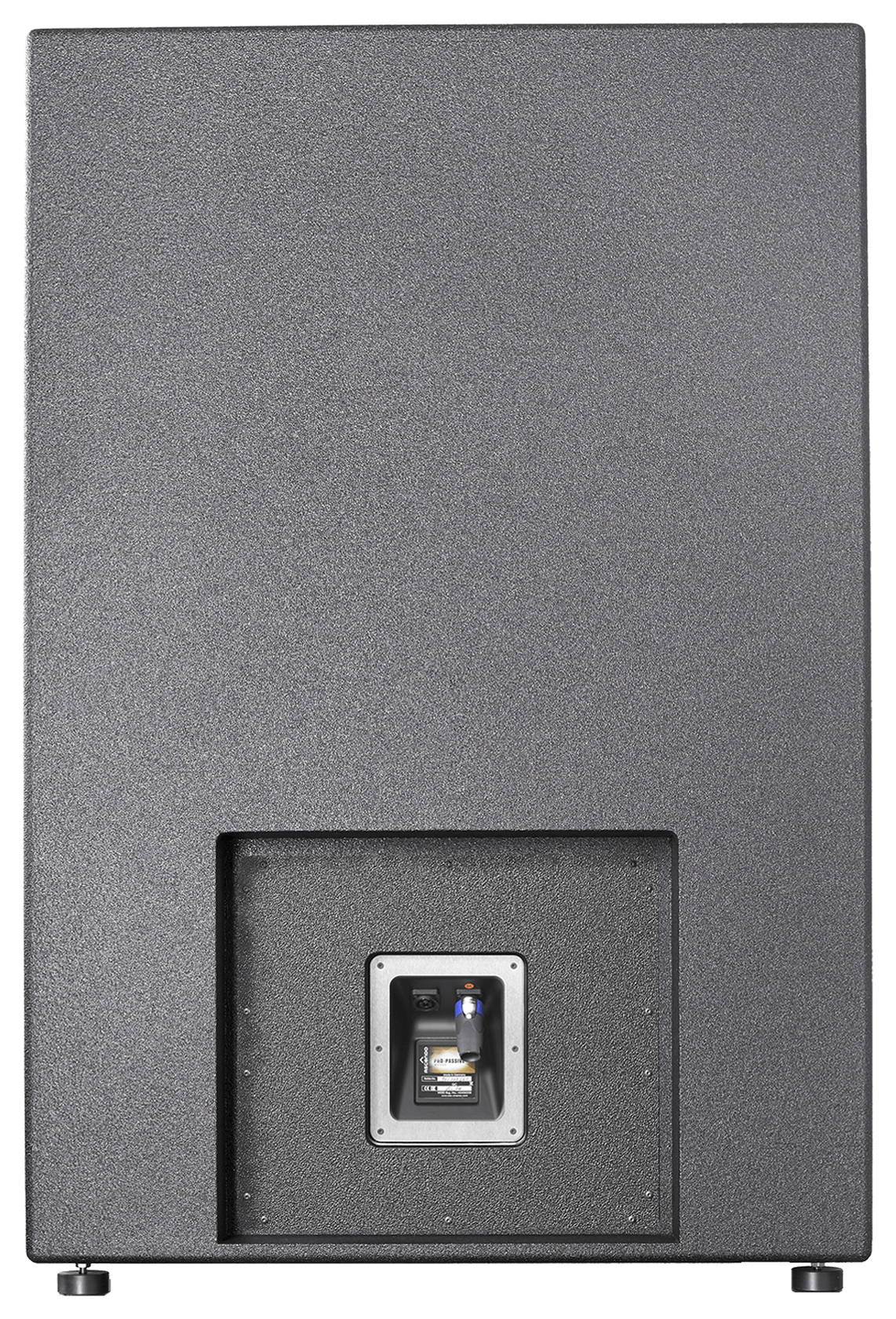

Input Terminal
Neutrik NL4 MP
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
750 | 1125 | 500 (Height without feet: 1100)
Dimensions (W/H/D) inch (Without Grille)
29 1/2 | 44 5/16 | 19 11/16 (Height without feet: 43 5/16)
Packing Dimensions (W/H/D) mm
1200 | 1270 | 800
Packing Dimensions (W/H/D) inch
47 1/4 | 50 | 31 1/2
Weight
255.74 lbs | 116 kg
Gross Weight
284.39 lbs | 129 kg
Design & Mounting
Enclosure
Internally braced birch ply and MDF
Finish
Structural paint black
Mounting
Floorstanding with feet

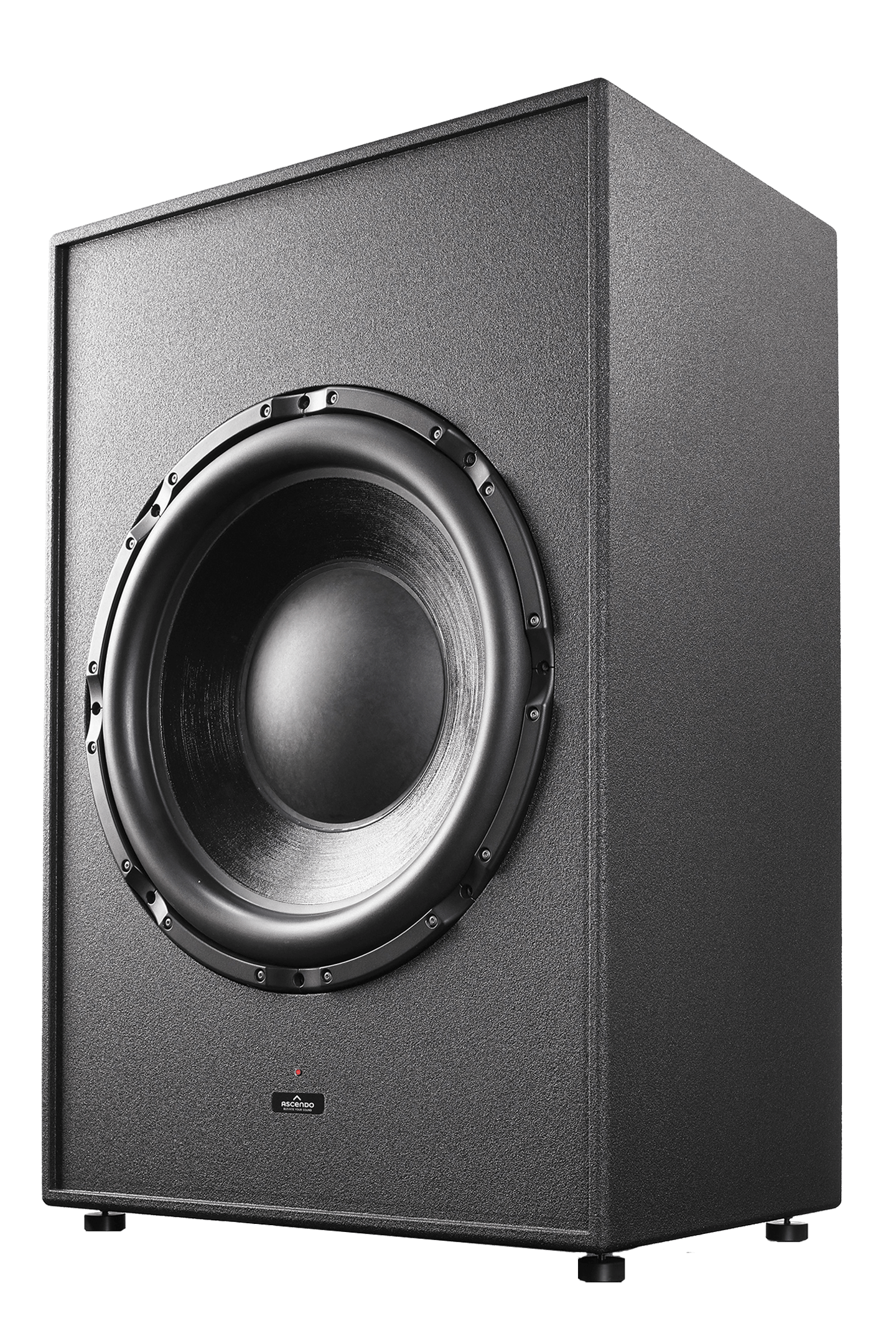

Gallery
