THE6 PASSIVE NARROW
Description
The6 PASSIVE NARROW is an example of ASCENDO responding to the Custom requests of our dealers. This narrower version of model The6 PASSIVE ON WALL has been requested enough times that we officially welcome the model to our regular lineup.
It is a very compact two-way passive loudspeaker system which utilizes a 6.5” time coherent Coaxial Point Source driver featuring a soft dome tweeter. This driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area.
The6 PASSIVE NARROW is an enormously dynamic and powerful speaker with a very compact width and height, and form factor that looks more at home either below or beside TVs than its sibling’s wider design.
Considering the space occupied, its high efficiency of 93dB at 1W/1m and high-power handling allows it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.
Specification
General
Speaker Type
6 ½” time-coherent point-source coaxial
Principle
Vented
Passive | Active
Passive
Woofer
6 ½” woofer
Tweeter
1” soft dome
Recommended ASCENDO Amplifiers
AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004
Measured Data
SPL (Half Space 2pi)
Measured Data 111 dB (Cont.) / 122 dB (Peak) 108 dB @ 100 Hz 113 dB @ 170 Hz
Frequency Range
Measured Data (Without DSP) 110 Hz - 20 kHz / -3 dB
Power Handling
200 W
Efficiency
87 dB / 1 W/m 4 pi, 93 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
85° x 85°
Input
Input Terminal
4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
495 | 180 | 88 (With grille: 94)
Dimensions (W/H/D) inch (Without Grille)
19 1/2 | 7 1/16 | 3 7/16 (With grille: 3 11/16)
Packing Dimensions (W/H/D) mm
300 | 610 | 200
Packing Dimensions (W/H/D) inch
13 | 24 | 7 14/16
Weight
10.58 lbs | 4.8 kg
Gross Weight
13.23 lbs | 6.0 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish
Matte black / White glossy
Mounting

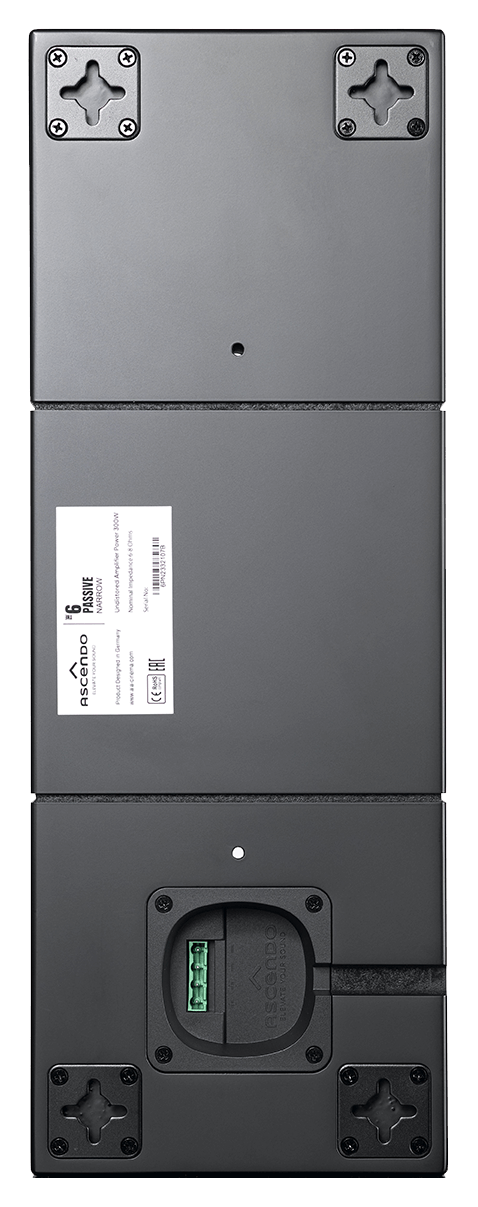

4 x wall brackets for horizontal and vertical installation, 2 through-holes for direct wall or ceiling mounting
Name

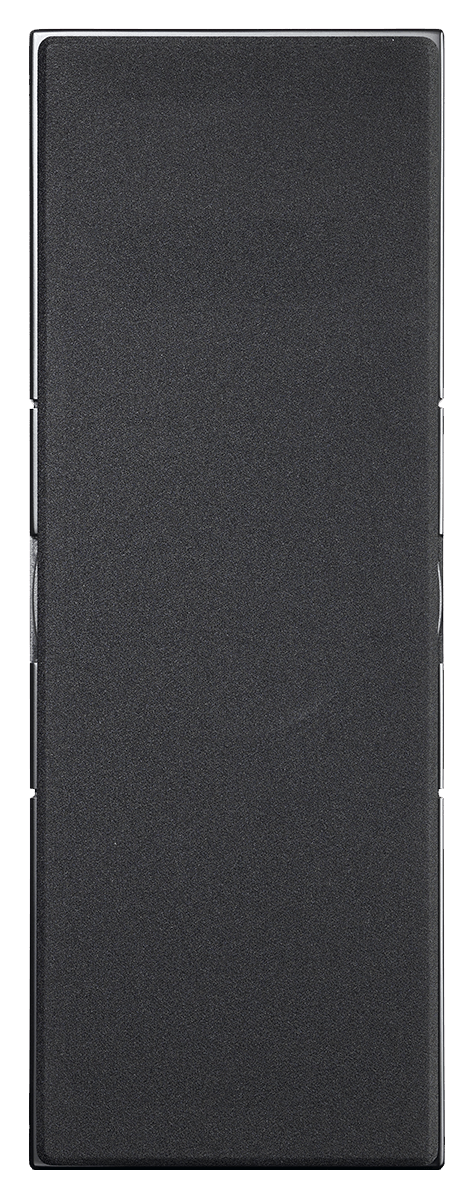

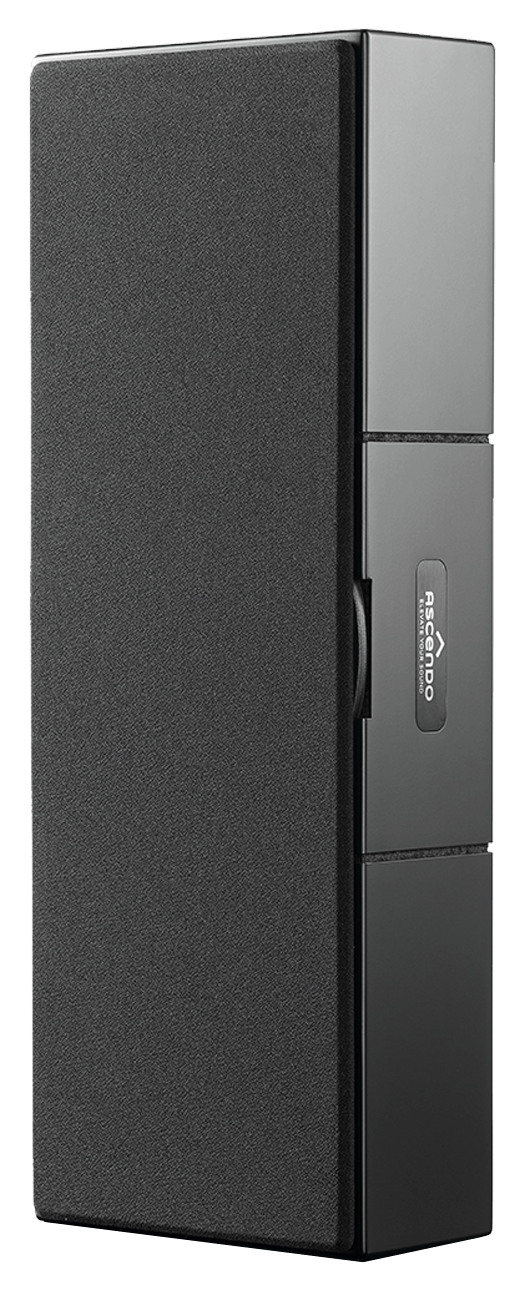

The THE6 PASSIVE NARROW is supplied with a front cover as standard
