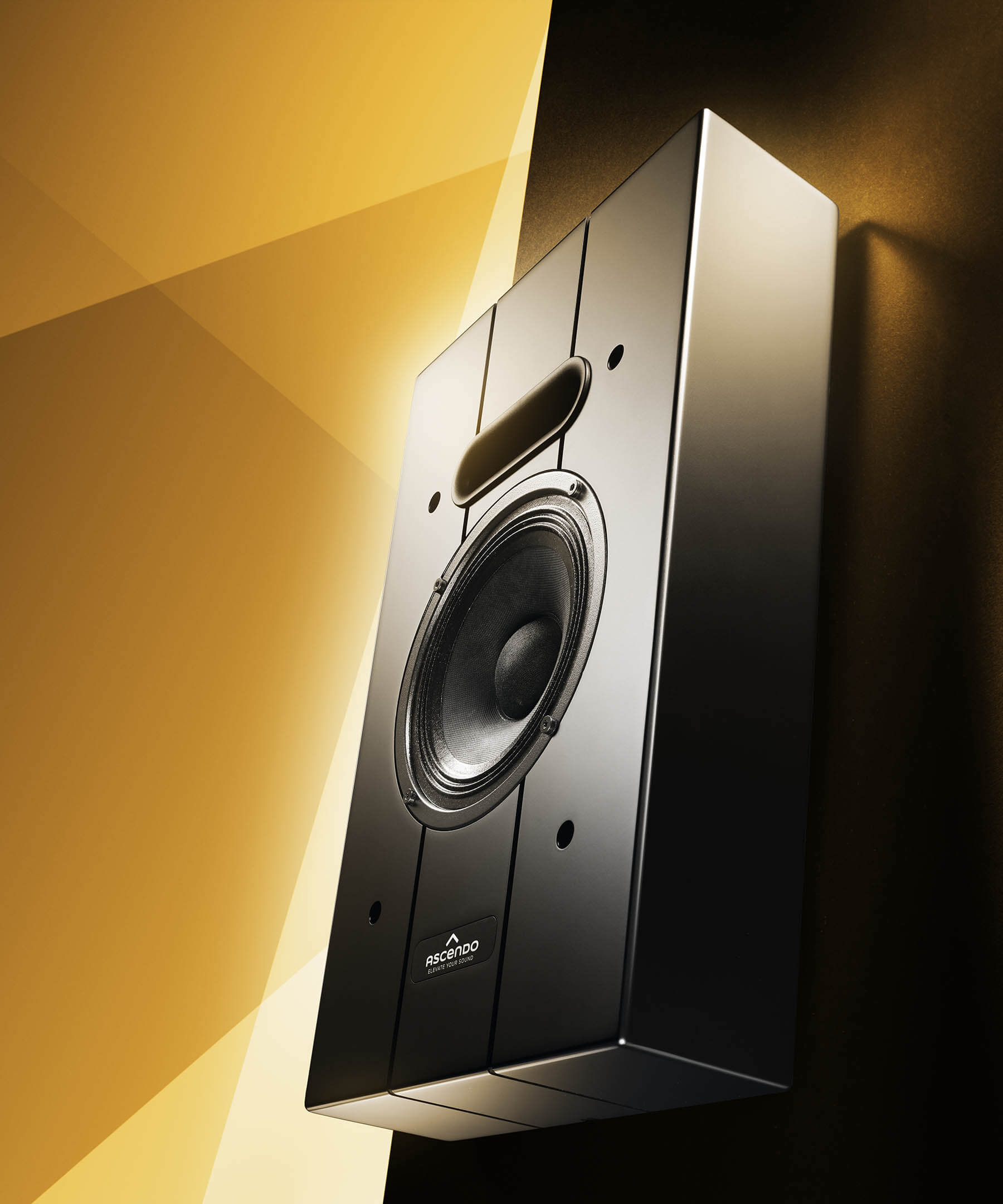

THE6 PASSIVE ON WALL
Description
Does quality need to be a matter of size and budget? This new 6.5" addition to the CCM speaker series of ASCENDO was designed by our engineers to offer the highest performance ratio to speaker volume.
We employ the same proven two way axi-symmetric point source coaxial technology as the larger CCRM speaker series in a more compact packaging. The The6-P (Previous name: CCM6-P) ideally accompanies the CCM5 and if desired the new SV-12 subwoofer in an all ASCENDO budget high-performance system. It can serve as a surround and ceiling speaker in larger home theater systems as well as a music background speaker paired with a subwoofer.
The optional in-wall mounting kit will convert the The6-P into a flexible in-wall speaker.
The high sensitivity of 93dB/w/m paired with 200W RMS power handling lets you use this speaker with lower power receivers or very high-power amplifiers to achieve record SPL for reference level home theater projects. Another major advantage of the The6-P is its shallow depth of only 88 mm.
Specification
General
Speaker Type
6 ½” time-coherent point-source coaxial
Principle
Vented
Passive | Active
Passive
Woofer
6 ½” woofer
Tweeter
1” soft dome
Recommended ASCENDO Amplifiers
AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004
Measured Data
SPL (Half Space 2pi)
Measured Data 111 dB (Cont.) / 122 dB (Peak) 100 dB @ 100 Hz 110 dB @ 125 Hz
Frequency Range
Measured Data (Without DSP) 95 Hz - 20 kHz / -3 dB
Power Handling
200 W
Efficiency
84 dB / 1 W/m 4 pi, 90 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
85° x 85°
Input
Input Terminal
4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
260 | 440 | 88 (With grille: 94)
Dimensions (W/H/D) inch (Without Grille)
10 1/4 | 17 5/16 | 3 7/16 (With grille: 3 11/16)
Packing Dimensions (W/H/D) mm
380 | 570 | 200
Packing Dimensions (W/H/D) inch
14 15/16 | 22 7/16 | 7 14/16
Weight
11.46 lbs | 5.2 kg
Gross Weight
15.43 lbs | 7 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish

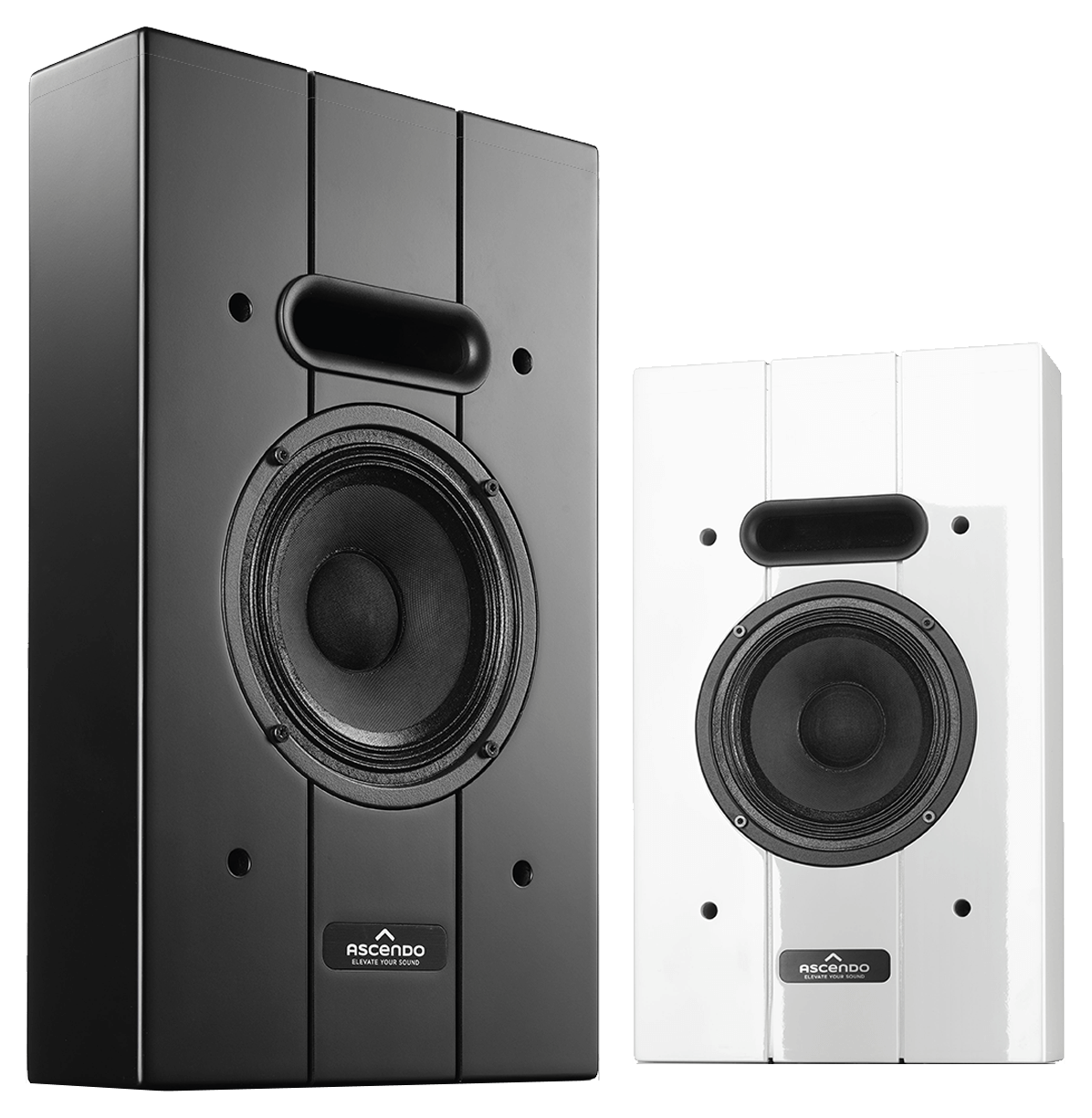

Matte black / White glossy
Mounting

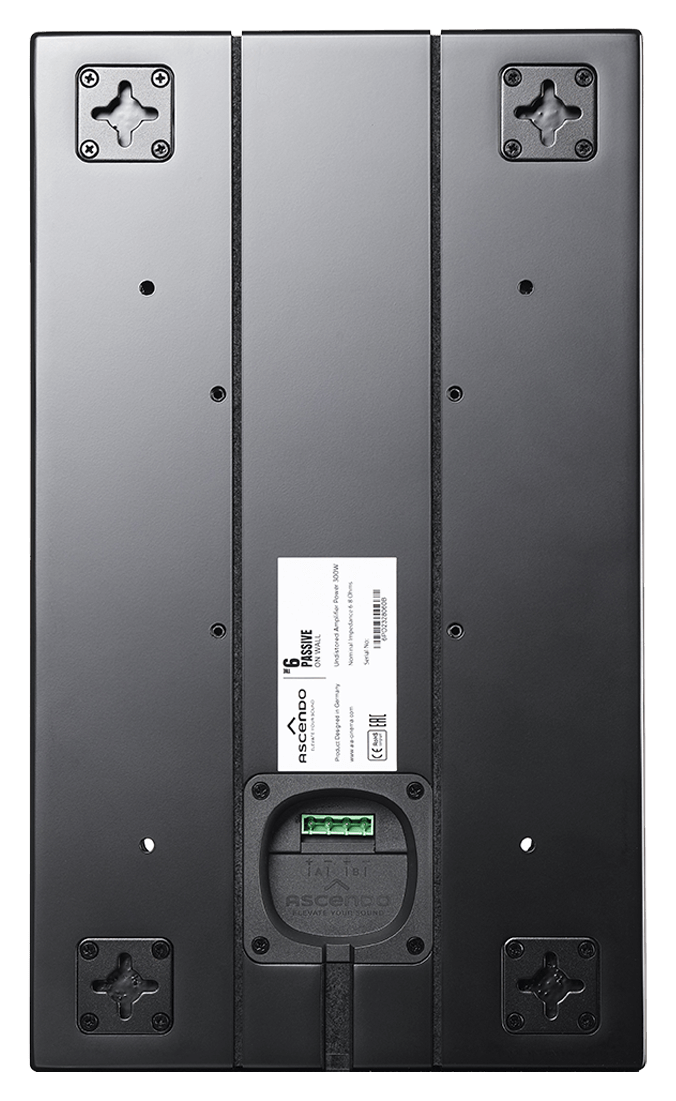

4 x wall mount brackets for horizontal and vertical installation, VESA 100 x 100 mounting points, 4 through-holes for direct wall or ceiling mounting
Name

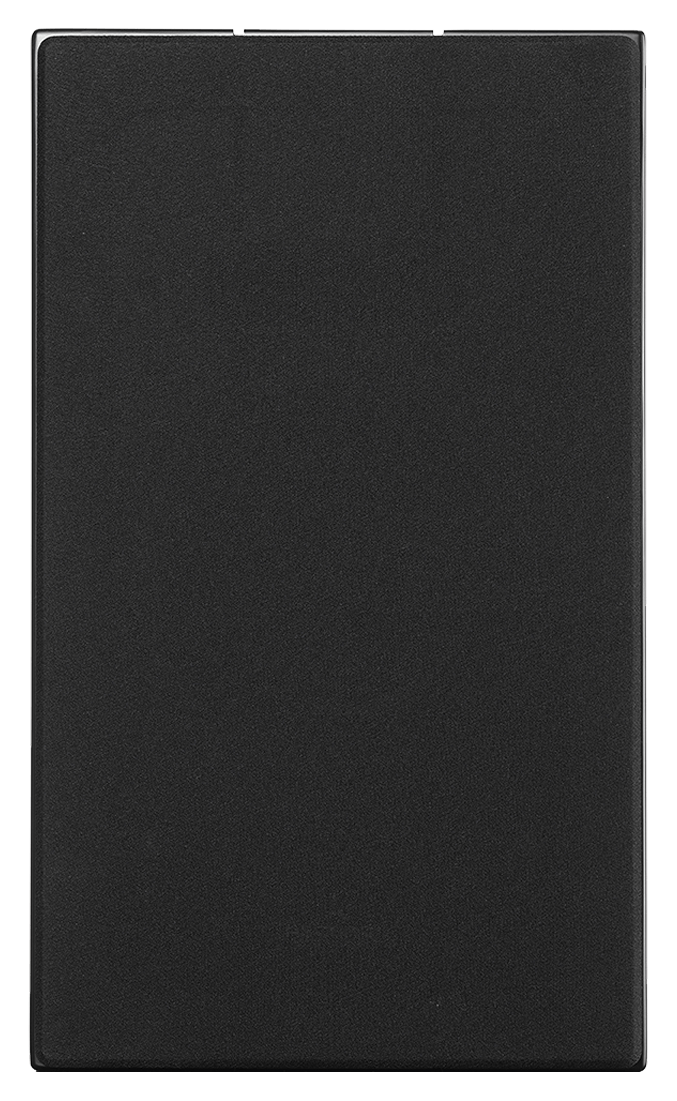

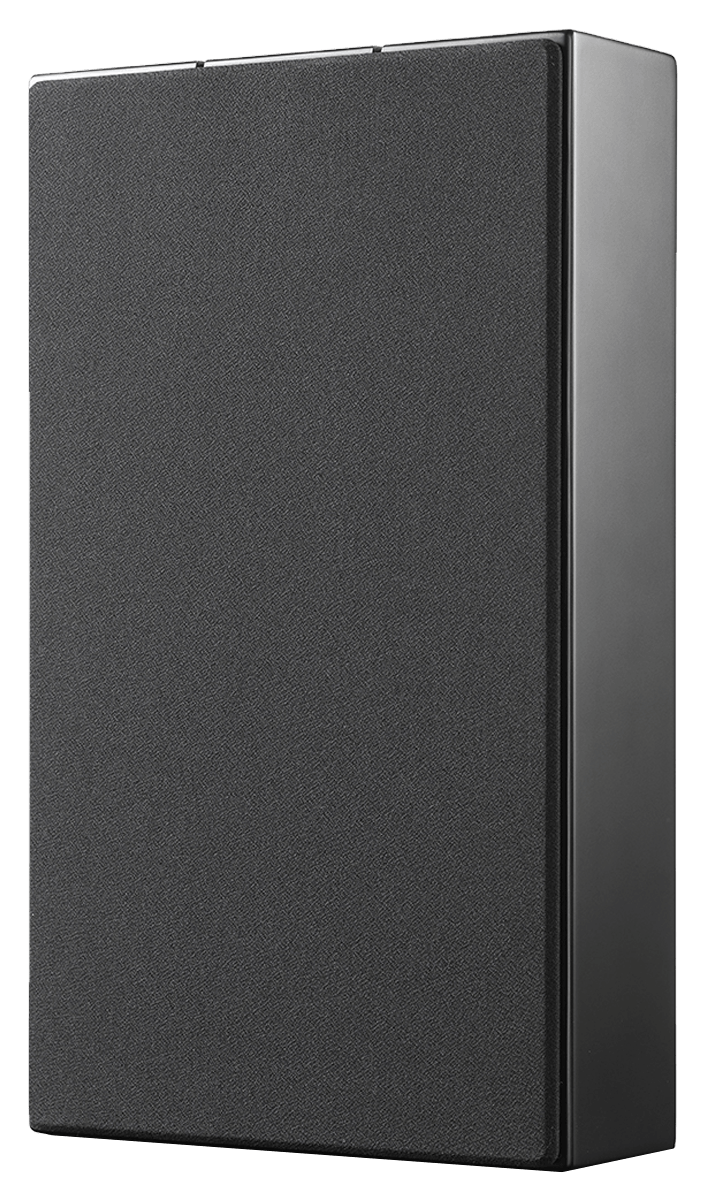

The THE6 PASSIVE ON WALL is supplied with a front cover as standard

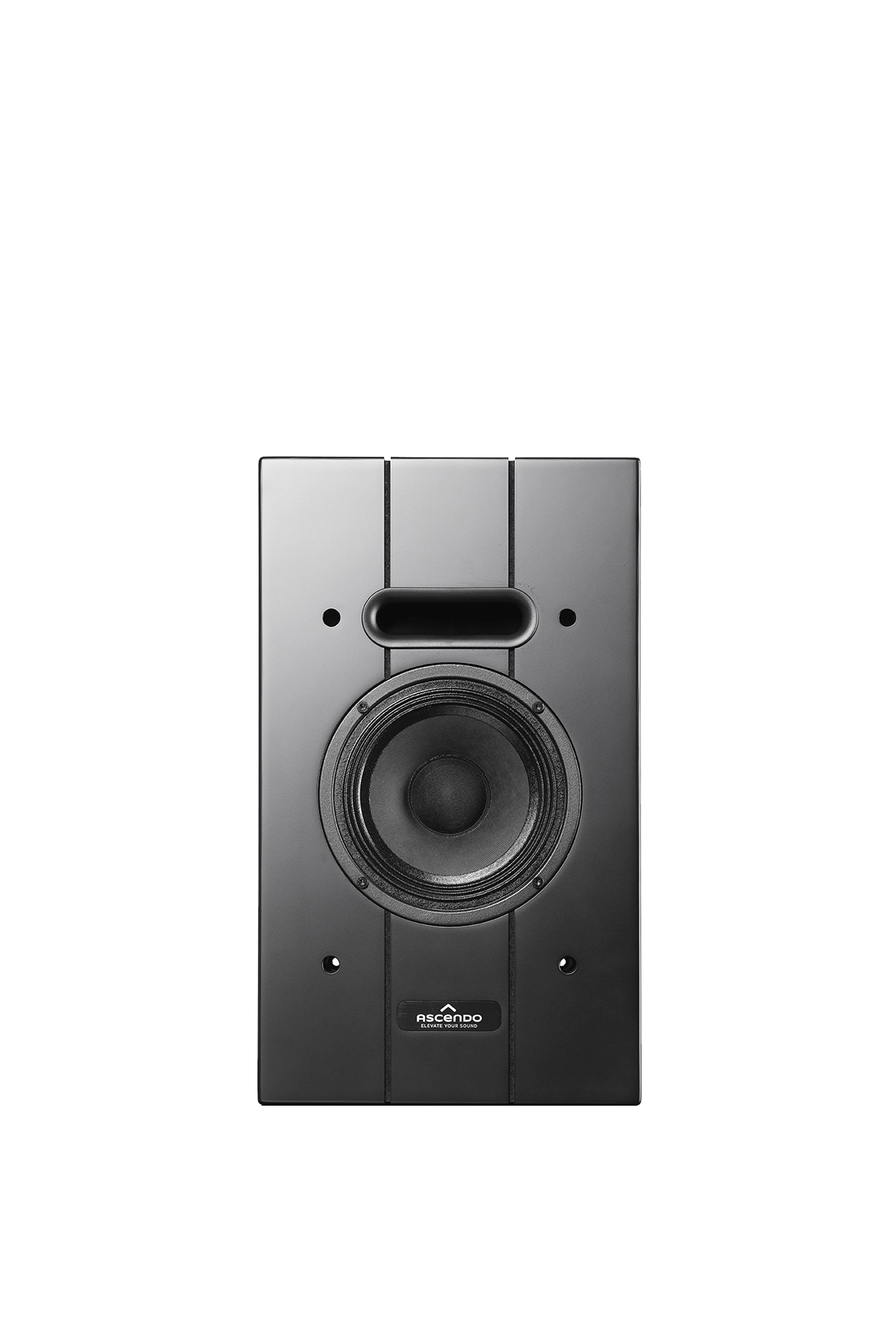

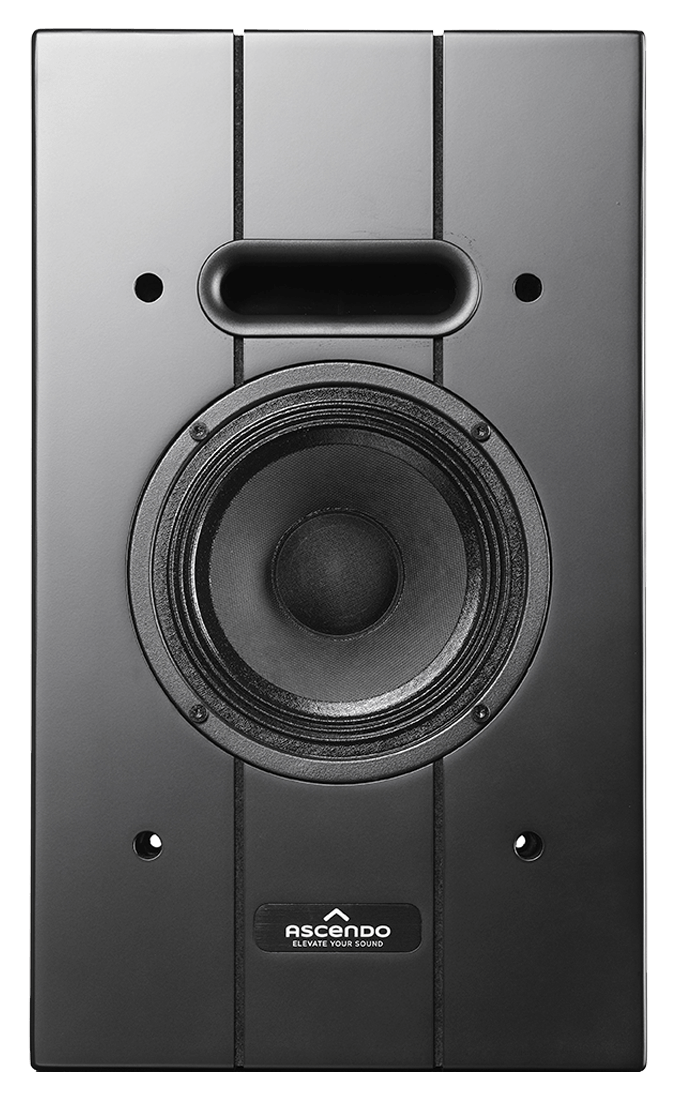

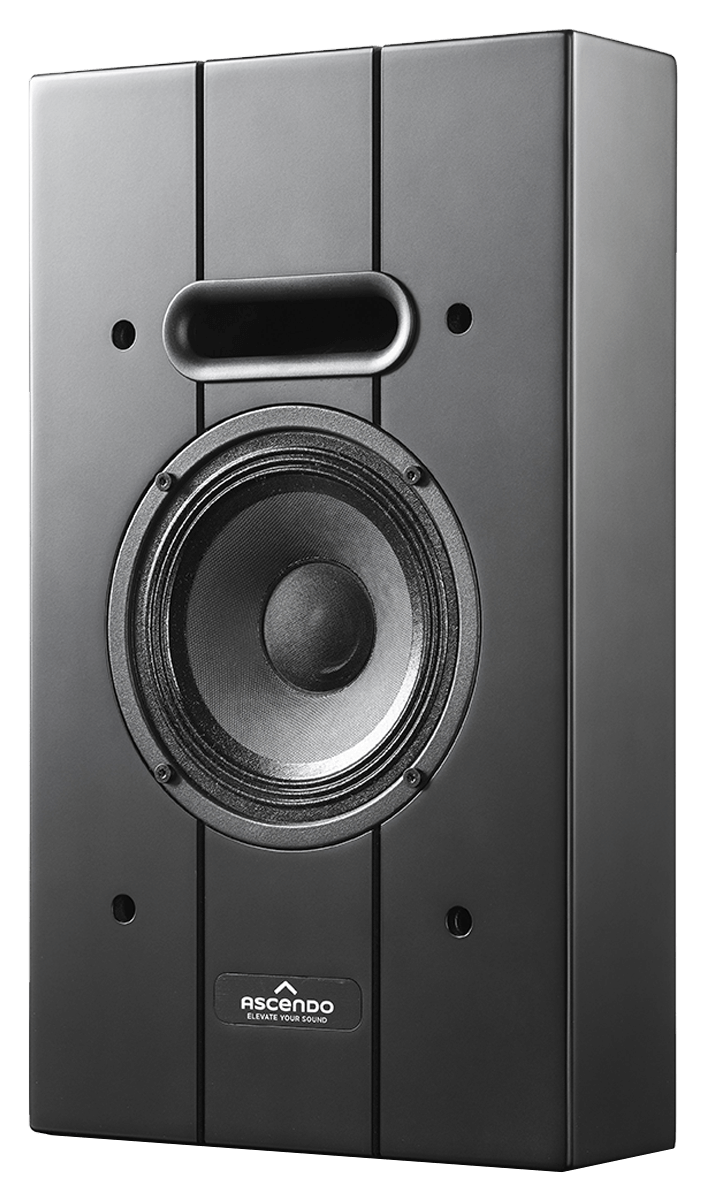

Gallery
