THE6 PRO PASSIVE CEILING
Description
THE6 PRO PASSIVE CEILING

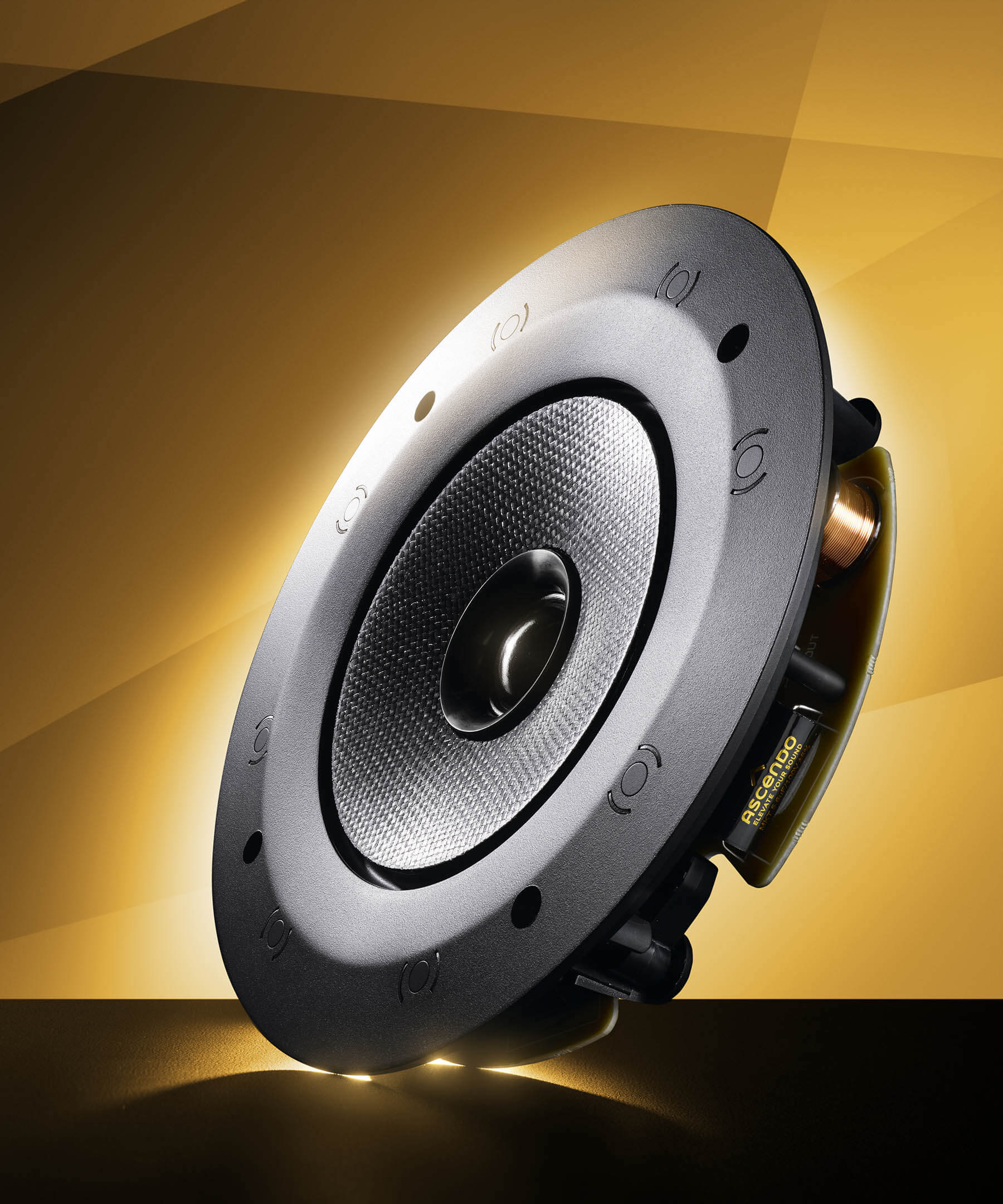

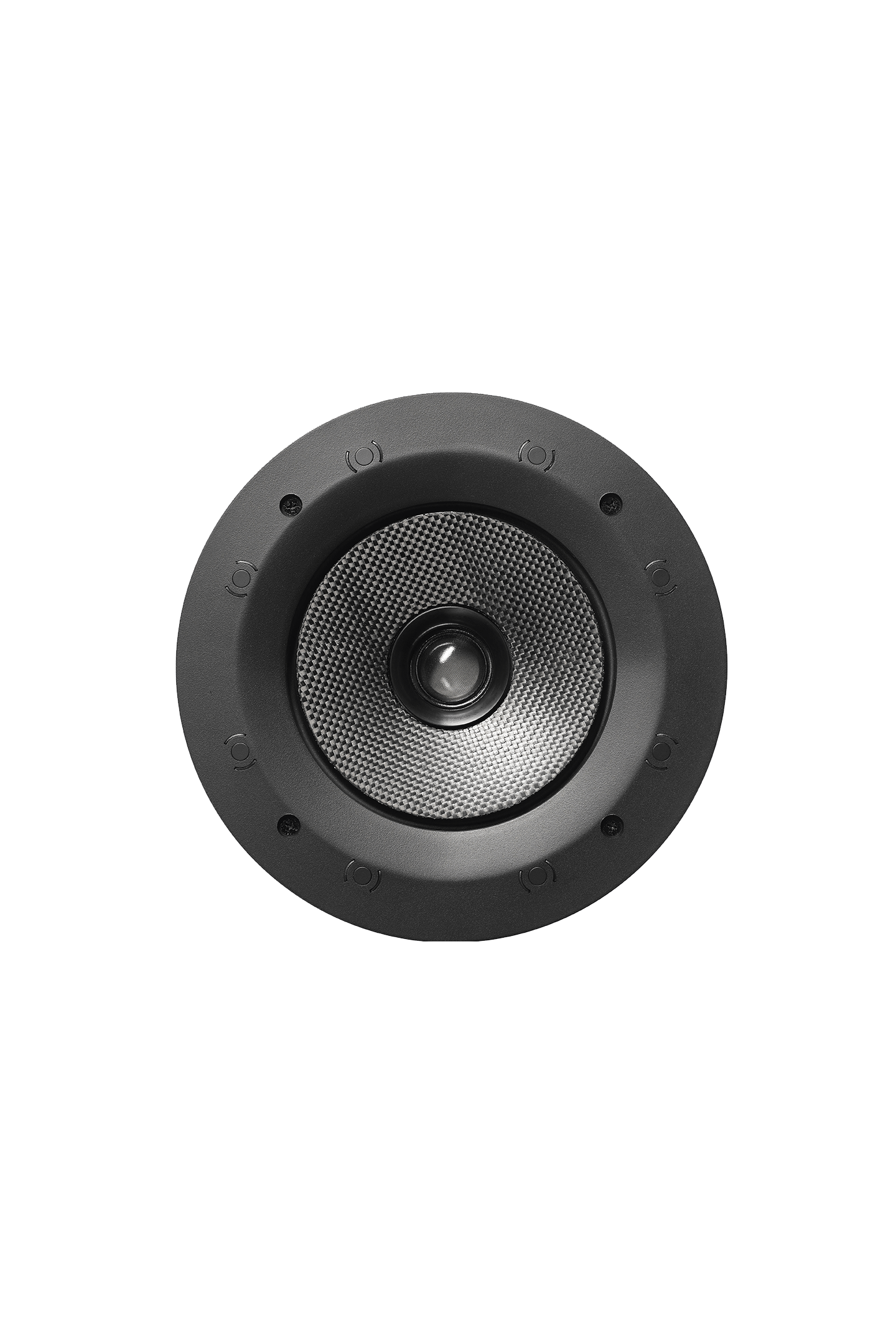

ASCENDO’s new THE6 PRO PASSIVE CEILING time coherent coax point-source complements the famous on-wall speaker lines for living room home theaters and high-quality multiroom music systems. The highest audio quality is offered for this speaker category because of the much-increased high-frequency off-axis response. It is a shallow in-ceiling speaker fitting in challenging positions where depth is a concern, most others cannot offer a solution.

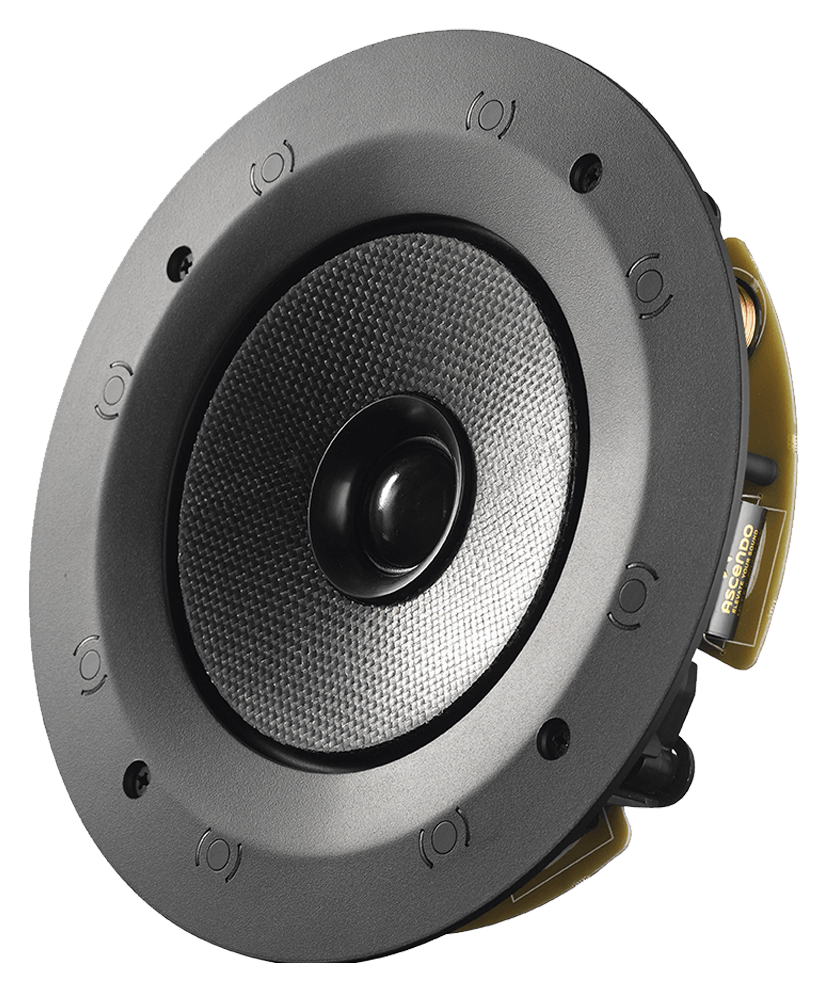

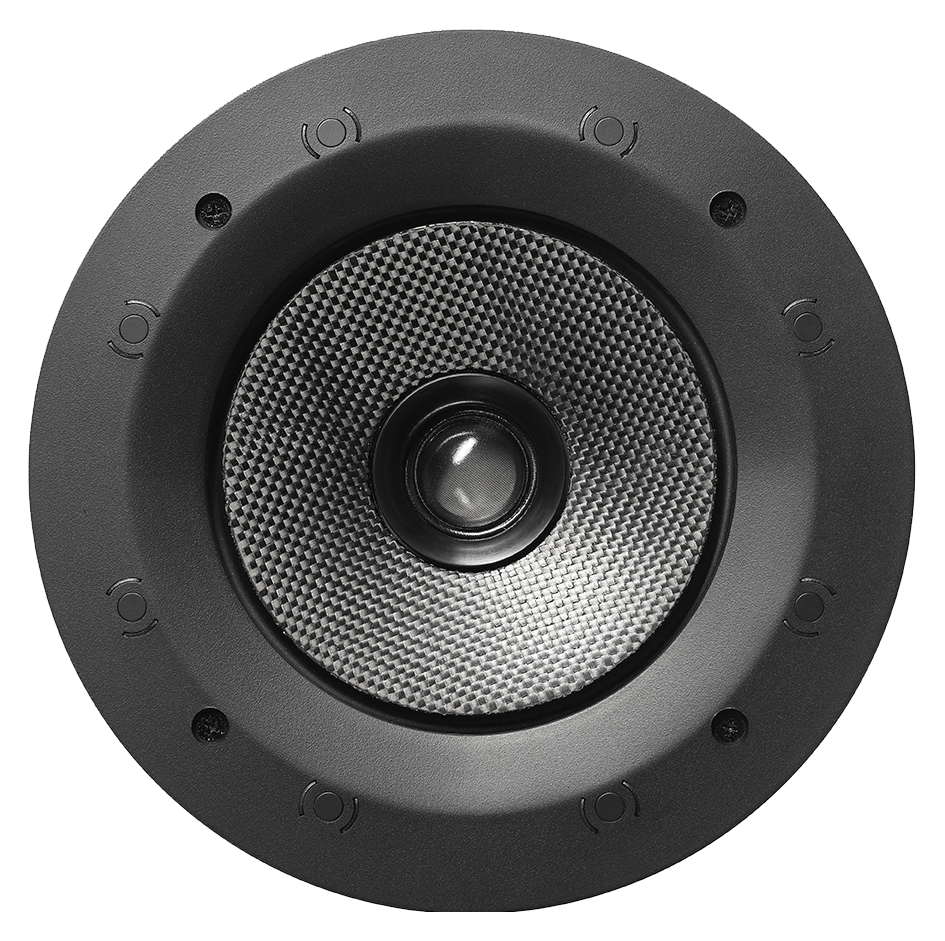

The new coax with Neodymium motor, 1,1” softdome tweeter and mid-woofer made of highly damped sandwich carbon fibre with foam core and rubber surround is capable of handling high power and reproduces rich transparent dynamic sound. THE6 PRO PASSIVE CEILING also impresses with its silky high-frequency reproduction and perfect symmetrical dispersion.
The new coax with Neodymium motor, 1,1” softdome tweeter and mid-woofer made of highly damped sandwich carbon fibre with foam core and rubber surround is capable of handling high power and reproduces rich transparent dynamic sound. THE6 PRO PASSIVE CEILING also impresses with its silky high-frequency reproduction and perfect symmetrical dispersion.
Specification
General
Speaker Type
6 ½” time-coherent point-source coaxial (Neodymium motor)
Principle
In-ceiling
Passive | Active
Passive
Woofer
6 ½” woofer (Carbon)
Tweeter
1” soft dome
Recommended ASCENDO Amplifiers
AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004
Measured Data
SPL (Half Space 2pi)
Measured Data 103 dB (Cont.) / 115 dB (Peak) 104 dB @ 88 Hz
Frequency Range
Measured Data (Without DSP) 85 Hz - 20 kHz / -3 dB
Power Handling
200 W
Efficiency
85 dB / 1 W/m 4 pi, 91 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
60° x 60°
Input
Input Terminal
Push on terminals 14 AWG (2.5 mm²)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
Diameter 225 | Cut out dia. 205 | 42.9
Dimensions (W/H/D) inch (Without Grille)
Diameter 8 7/8 | Cut out dia. 8 1/16 | 1 11/16
Packing Dimensions (W/H/D) mm
250 | 335 | 65
Packing Dimensions (W/H/D) inch
9 13/16 | 13 3/16 | 2 9/16
Weight
2.65 lbs | 1.2 kg
Gross Weight
3.31 lbs | 1.5 kg
Design & Mounting
Enclosure
N/A
Finish
White, can be painted

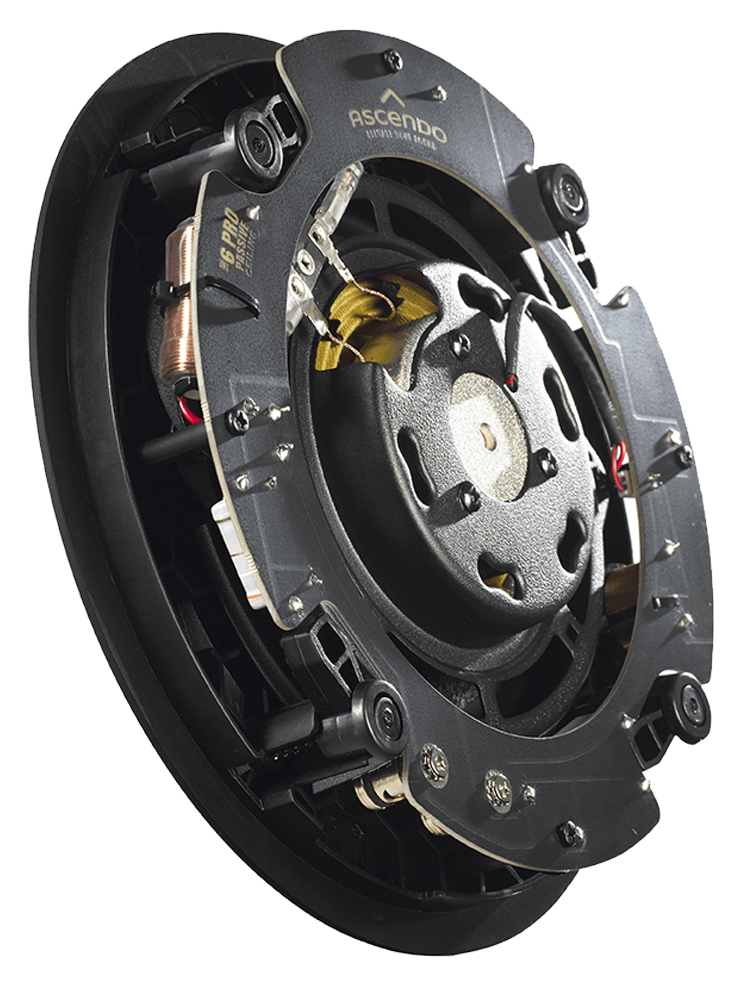

Mounting
Doogfeet clamps
Name

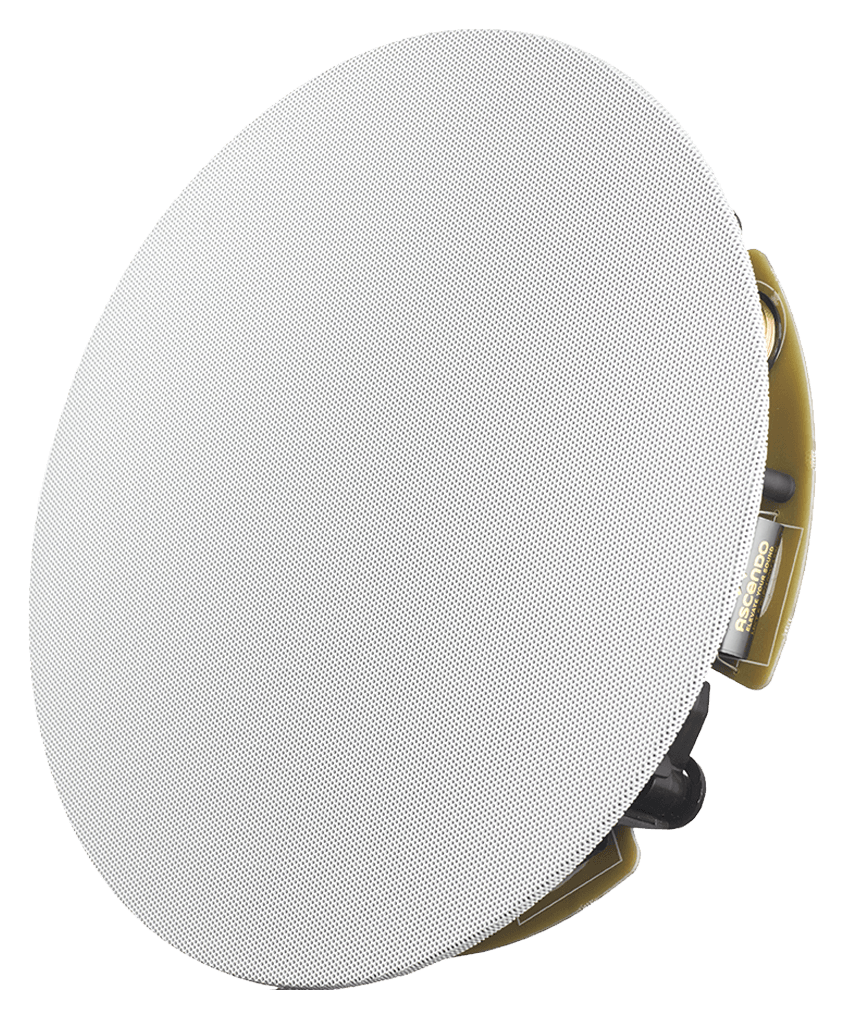

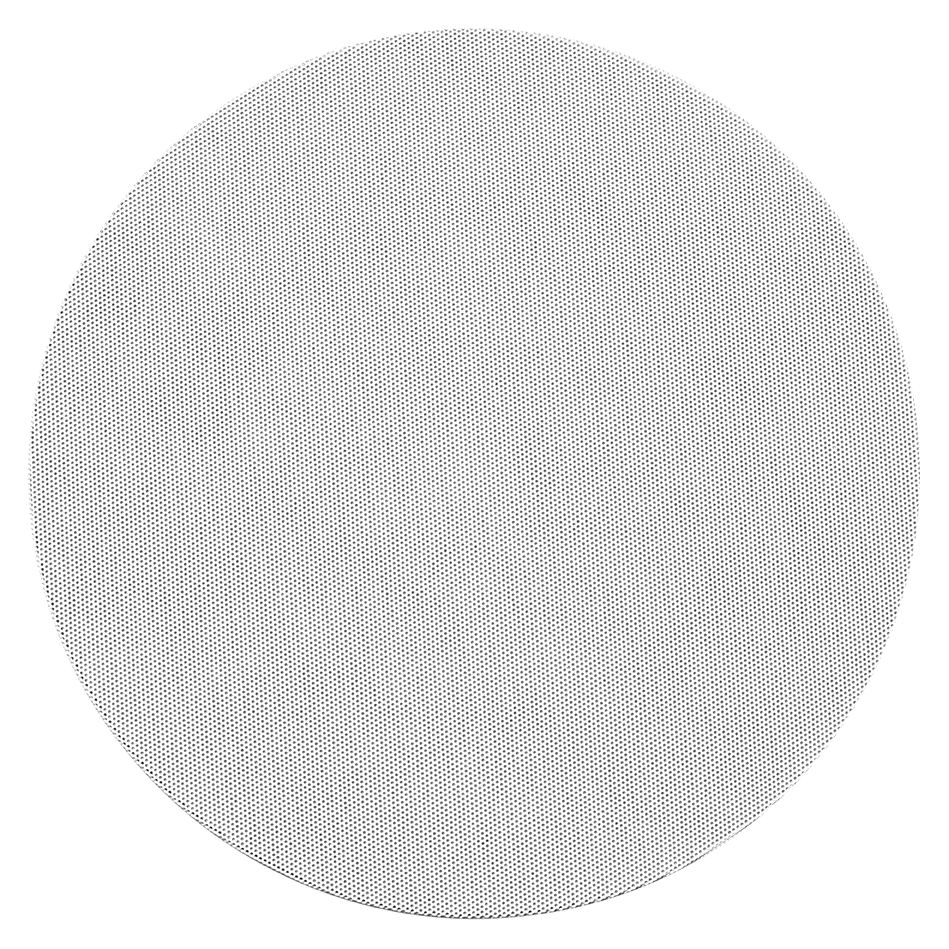

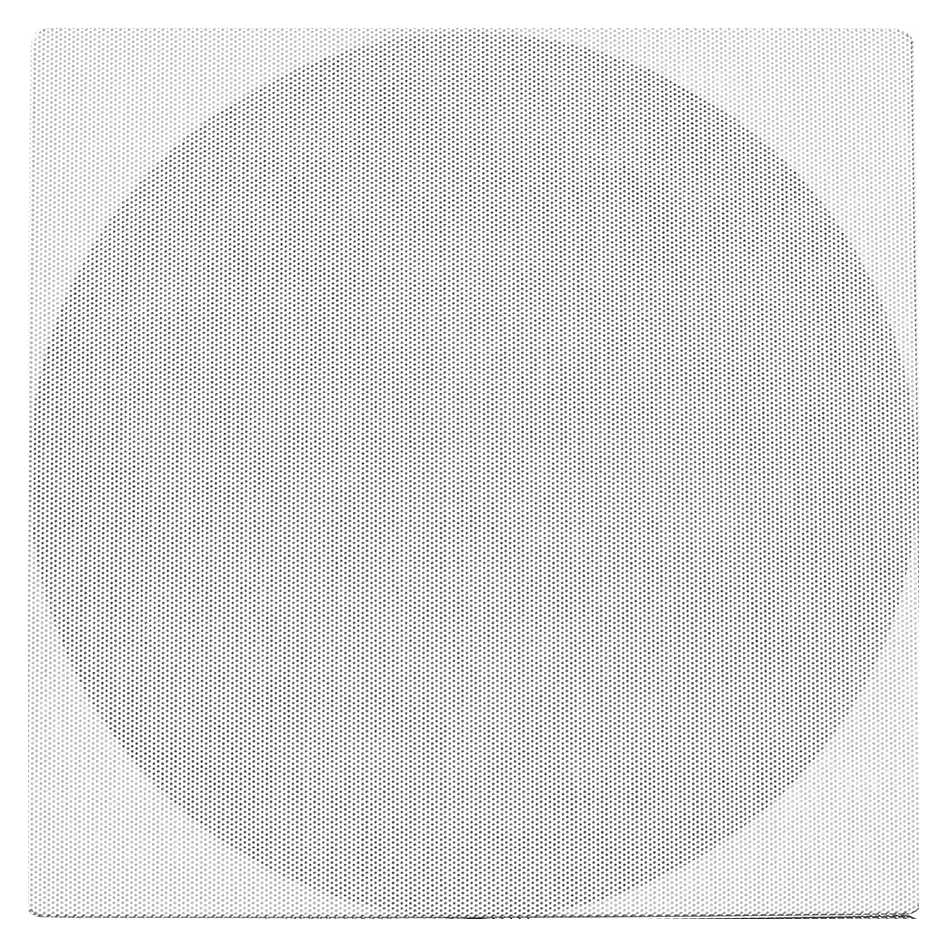

The THE6 PRO PASSIVE CEILING is supplied with a front cover as standard
