THE6 PRO PASSIVE ON WALL
Overview
Description

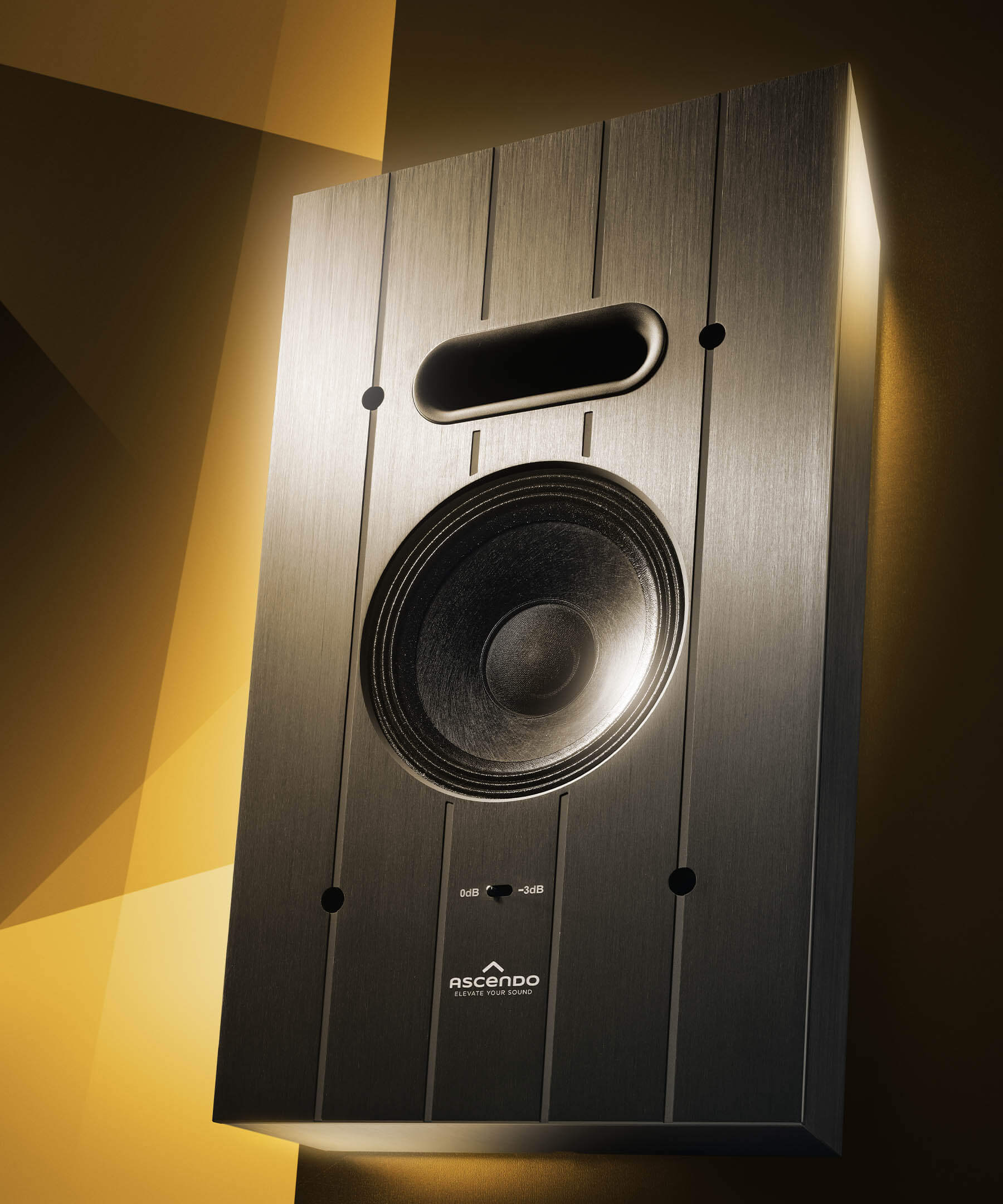

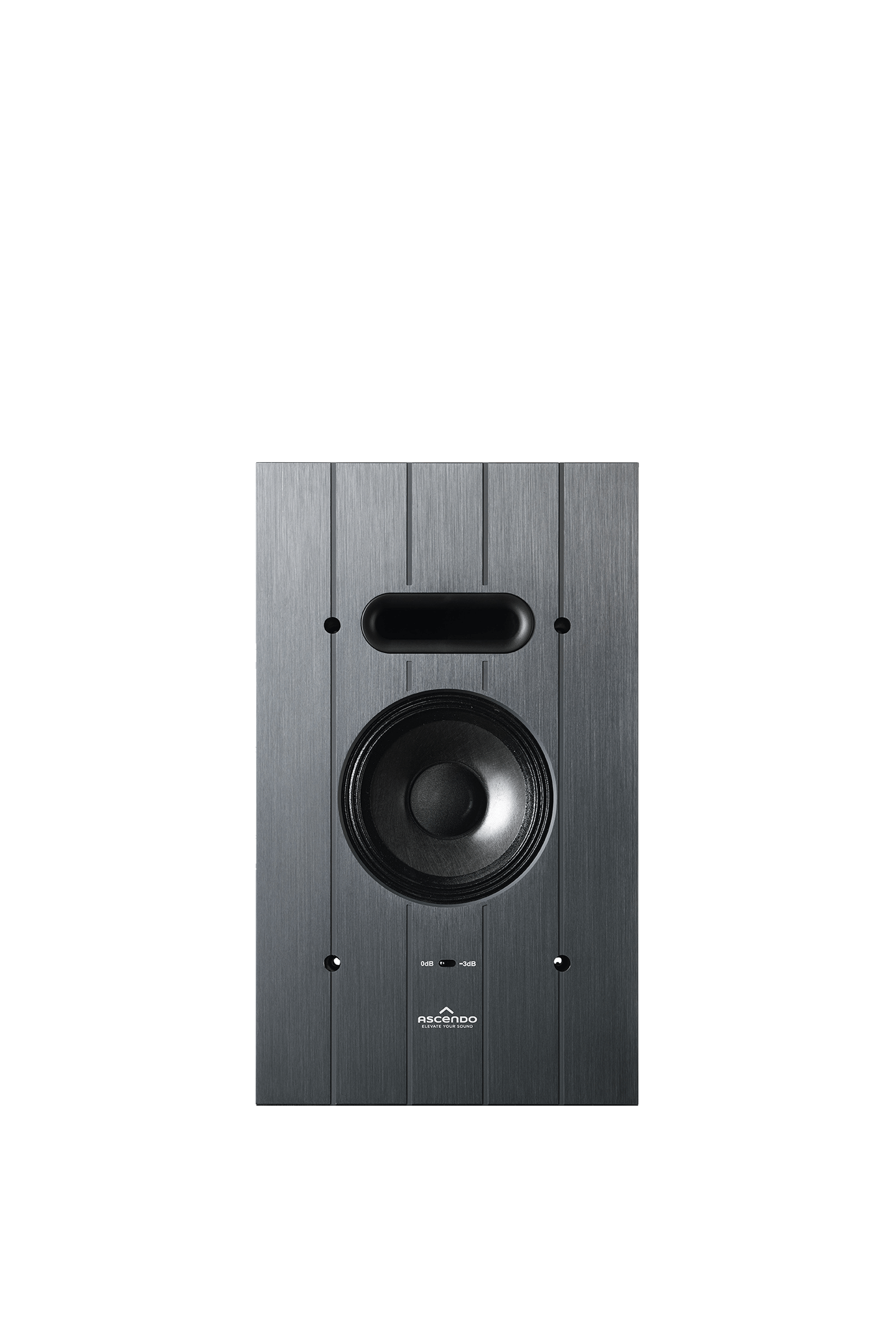

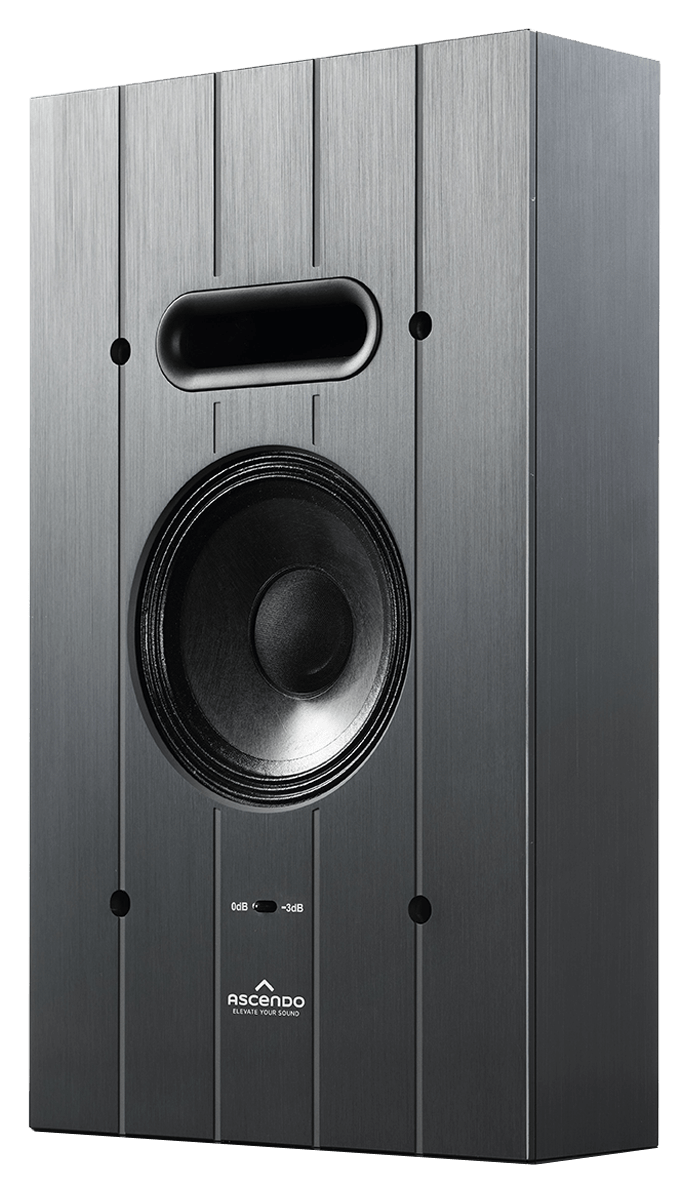

Introducing THE6 PRO PASSIVE ON WALL Speaker
Crafted in response to the needs expressed by our discerning partners, THE6 PRO PASSIVE ON WALL Speaker represents a significant leap in performance compared to even our previous Pro model it replaces, the CCRM6-P and takes its position above the impressive and extremely popular THE6 PASSIVE. Outshining competitors in its price range, and even beyond, our latest speaker also boasts exceptional features not easily found in compact, high-performance alternatives.
Our commitment to improvement is evident in the subtle enhancements made to The6 PRO PASSIVE ON WALL .We raised the sensitivity by over 1 decibel, ensuring an even more immersive audio experience. The midrange clarity, already exemplary with a paper pulp mix, has been elevated to unparalleled levels through the use of a cutting-edge graphene carbon non-woven material. This material boasts an optimal damping-to-stiffness ratio, providing an open and transparent midrange that sets this new model apart.
To enhance structural integrity and minimize distortion, we incorporated an upgraded frame and suspension. The soft dome tweeter, a hallmark of our design, has been refined for superior linearity. The enclosure, loved by our partners, remains unchanged in dimensions but has been reinvented with an aluminum wood sandwich design, maximizing stiffness and damping characteristics. This innovation results in improved linearity, as out-of-phase resonances are significantly reduced across all structures.
For audiophiles seeking the pinnacle of performance, we've integrated switchable filters that further linearize the speaker. These filters can be easily disabled when using advanced auto calibration systems like Trinnov Optimizer or Dirac Live, ensuring optimal efficiency.
THE6 PRO PASSIVE ON WALL spares no expense in its construction, utilizing top-tier filter components and wire elements, including silver capacitors and large-size air core inductors in the signal path. Meticulous attention has been given to minimizing internal enclosure resonance through innovative design and highly efficient damping materials.
Experience unparalleled performance in a compact form with the THE6 PRO PASSIVE ON WALL Speaker – where size meets resolution in an extraordinary audio journey.
Specification
General
Speaker Type
6 ½” time-coherent point-source coaxial
Principle
Vented
Passive | Active
Passive
Woofer
6 ½” woofer cone made from graphene-carbon non-woven mix
Tweeter

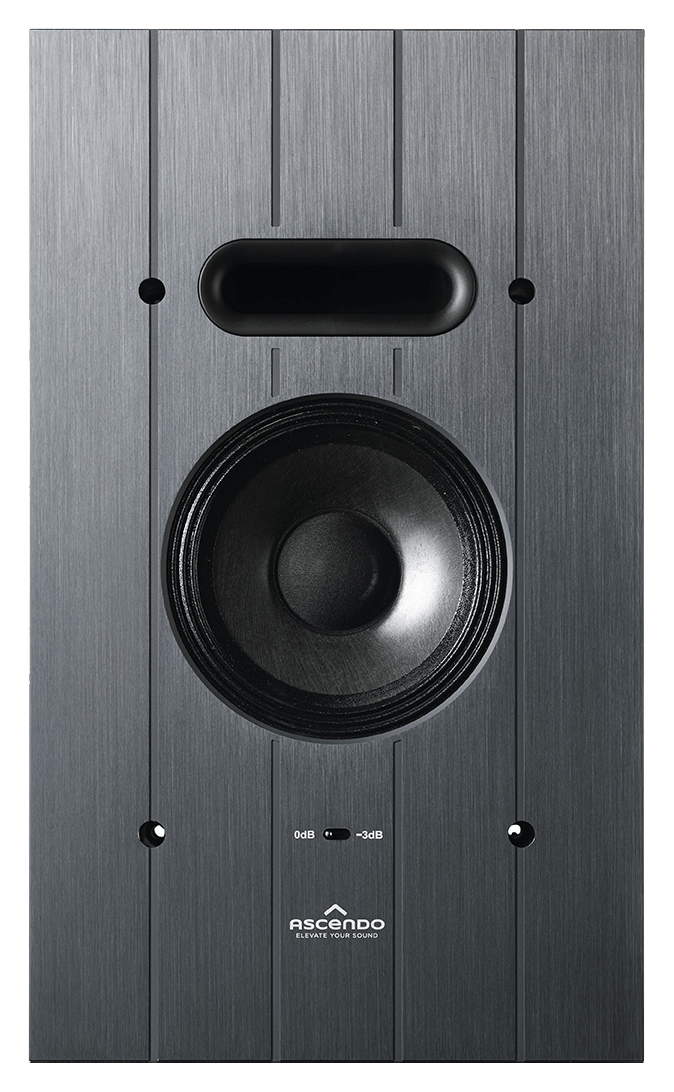

1” soft dome tweeter with presence EQ switch 0 dB / +3 dB
Recommended ASCENDO Amplifiers
AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004
Measured Data
SPL (Half Space 2pi)
Calculated data 112 dB (Cont.) / 122 dB (Peak)
Frequency Range
Calculated Data 100 Hz - 20 kHz (-3 dB)
Power Handling
200 W
Efficiency
88 dB / 1 W/m 4 pi, 94 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
85° x 85°
Input
Input Terminal
4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
266.5 | 446.5 | 93 (With grille: 100)
Dimensions (W/H/D) inch (Without Grille)
10 1/2 | 17 9/16 | 3 11/16 (With grille: 3 15/16)
Packing Dimensions (W/H/D) mm
210 | 390 | 560
Packing Dimensions (W/H/D) inch
8 4/16 | 15 6/16 | 22 1/16
Weight
16.53 lbs | 7.5 kg
Gross Weight
19.18 lbs | 8.7 kg
Design & Mounting
Enclosure
Aluminum damped sandwich, internally braced
Finish
Brushed aluminum black anodized
Mounting

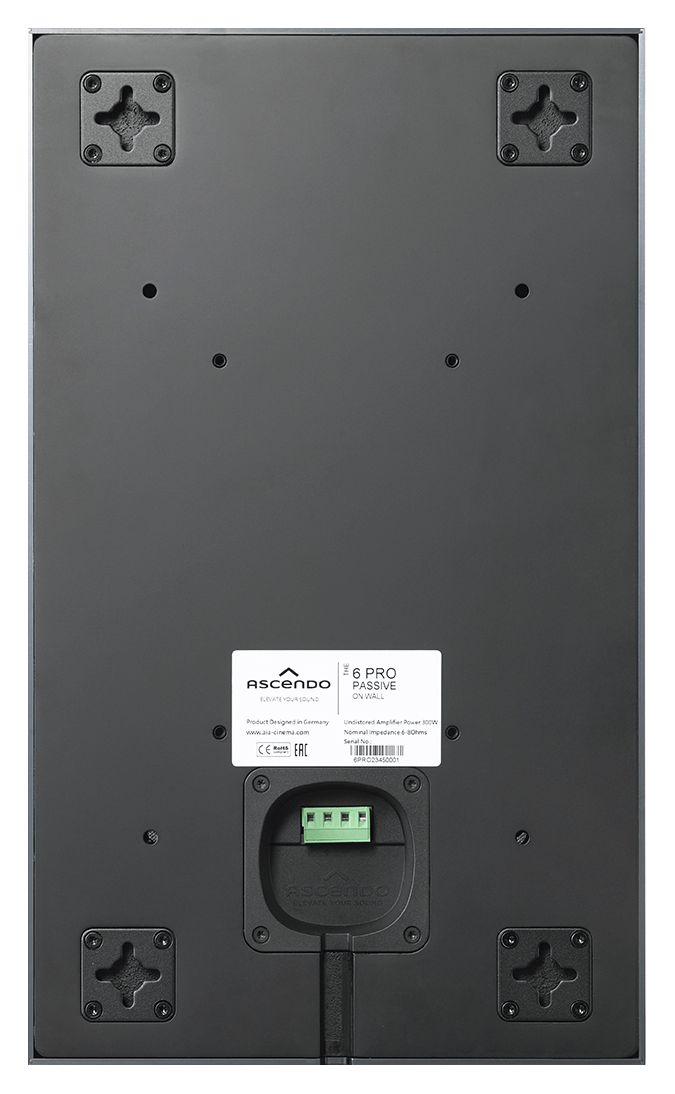

4 x wall mount brackets for horizontal and vertical installation, VESA 100 x 200 mounting points, 4 through-holes for direct wall or ceiling mounting
Name

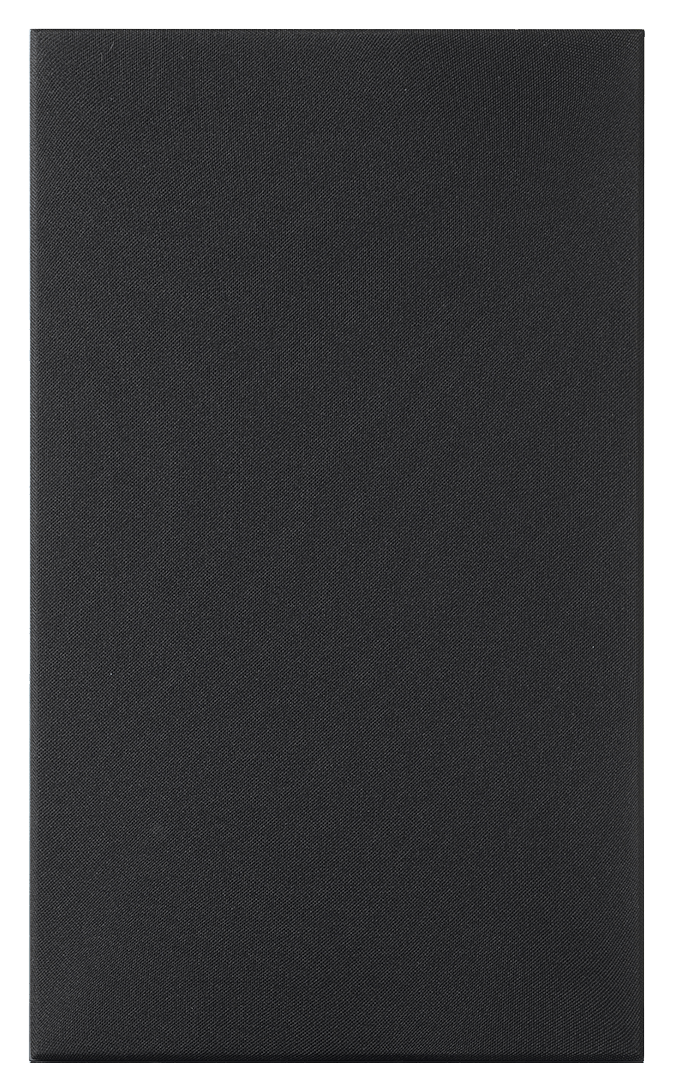

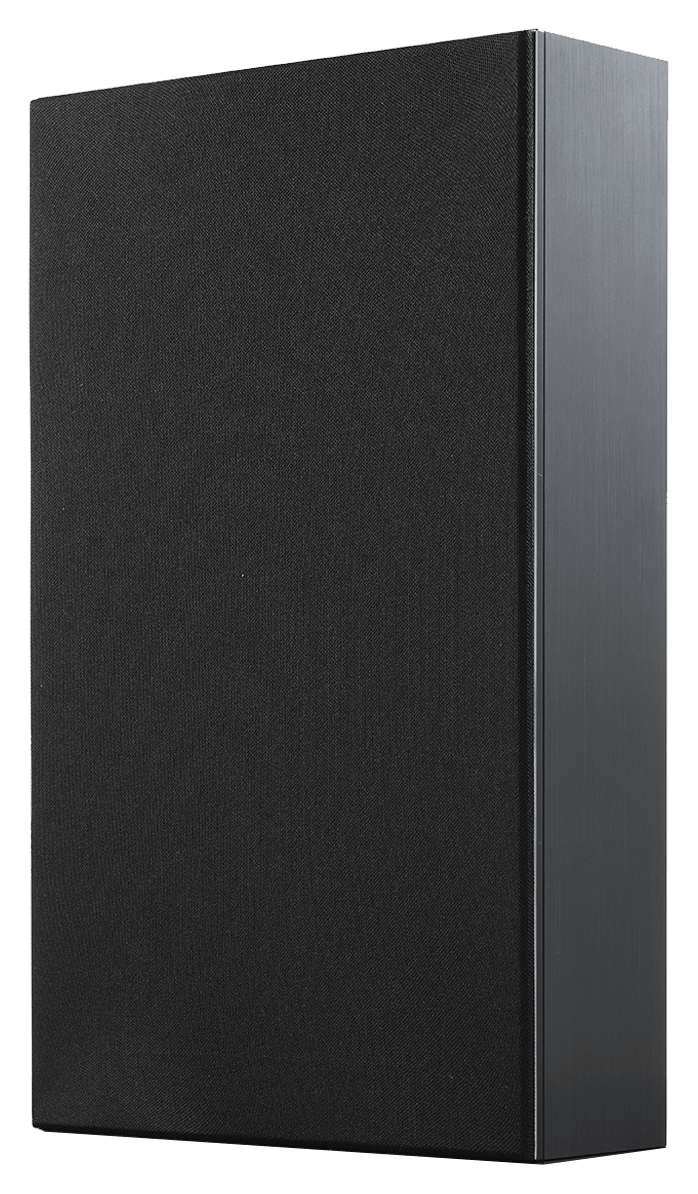

The THE6 PRO PASSIVE ON WALL is supplied with a front cover as standard
