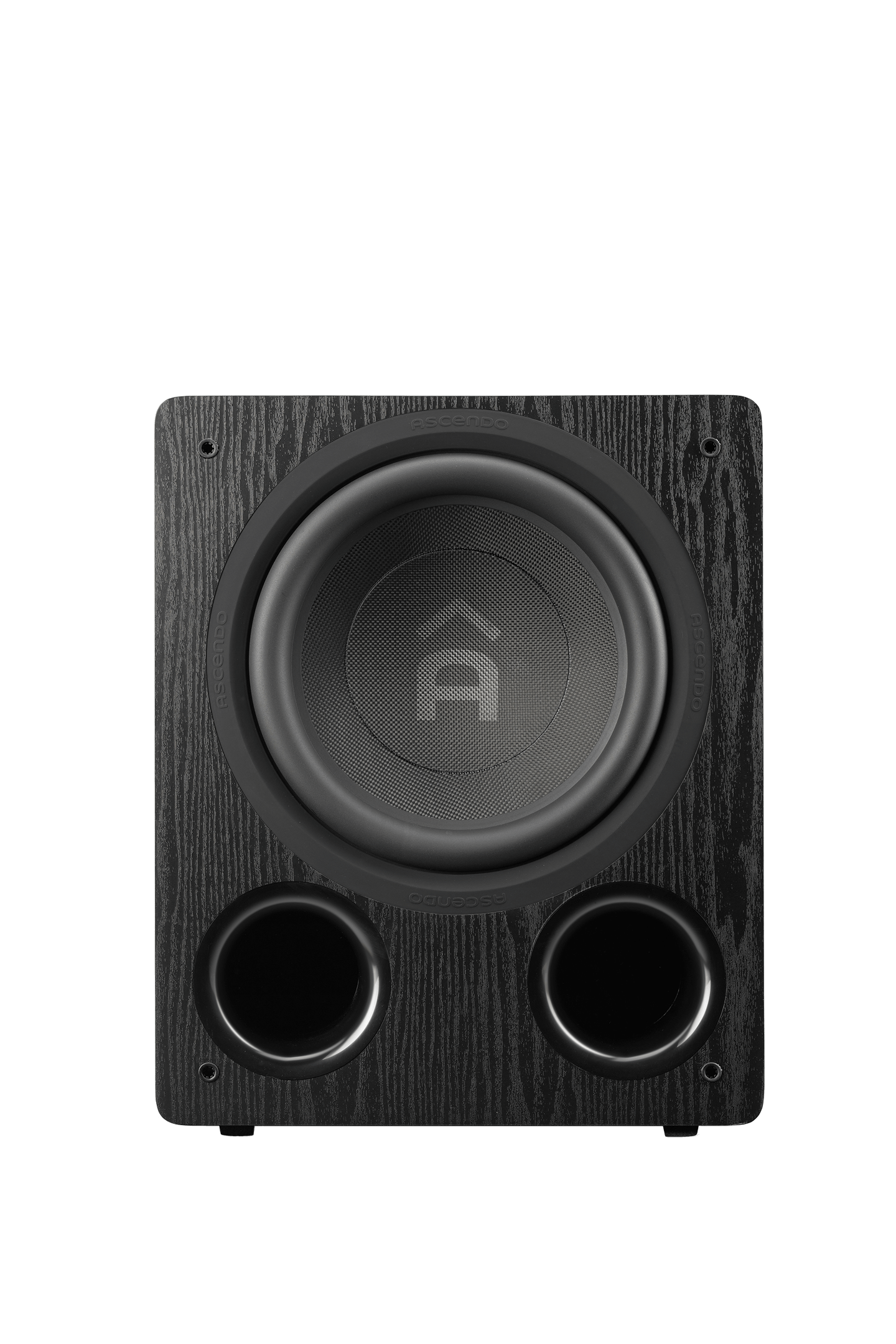

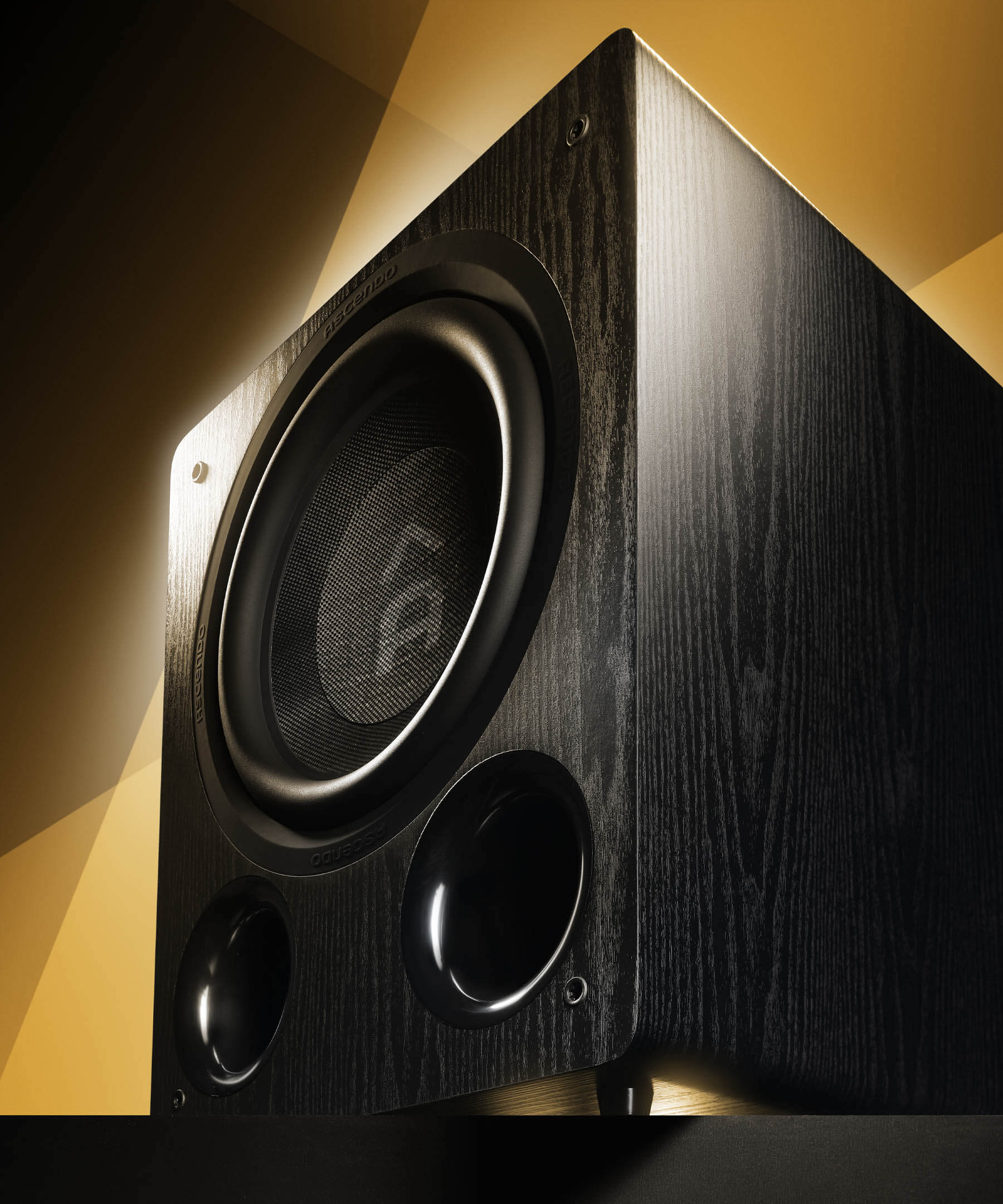

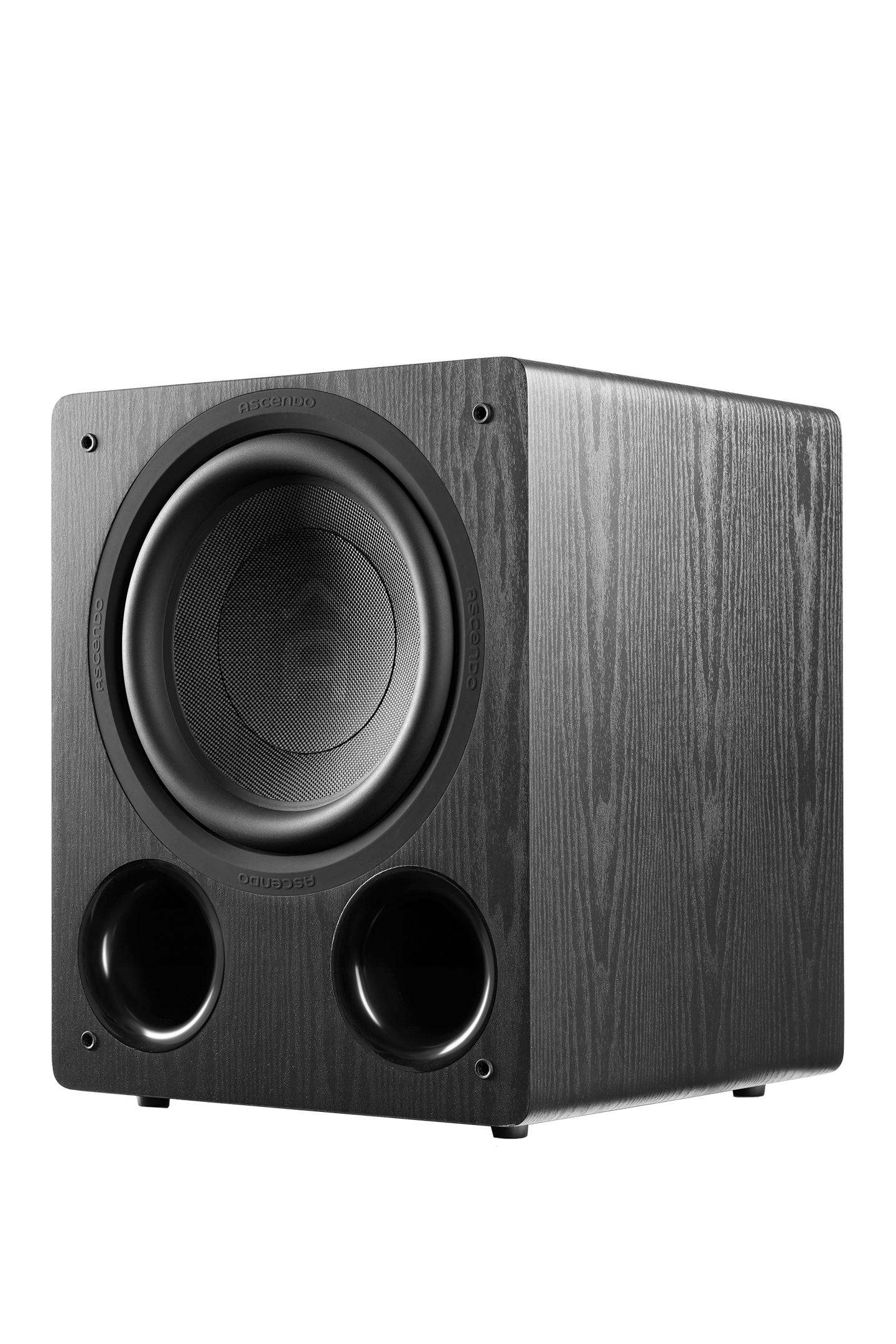

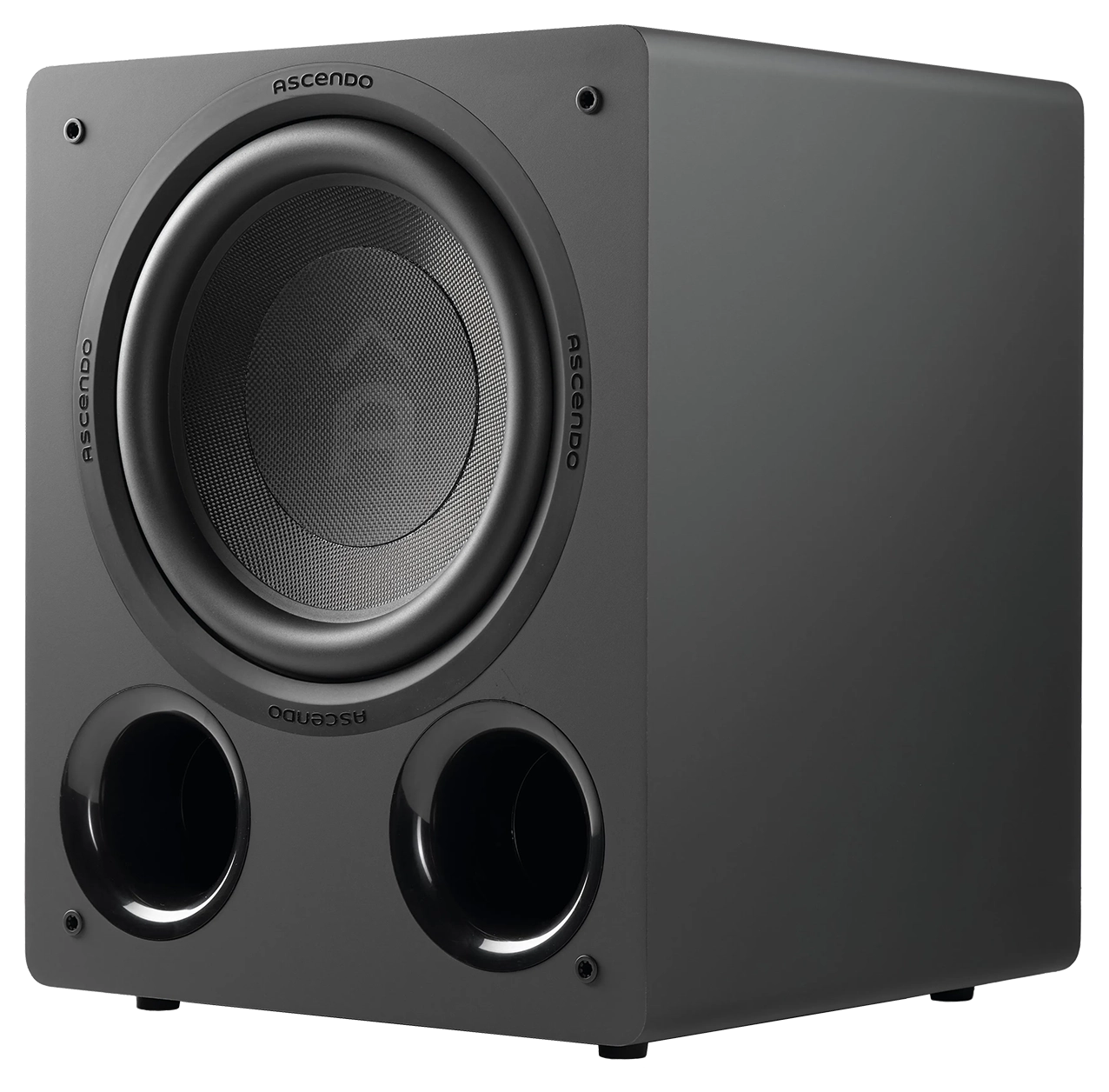

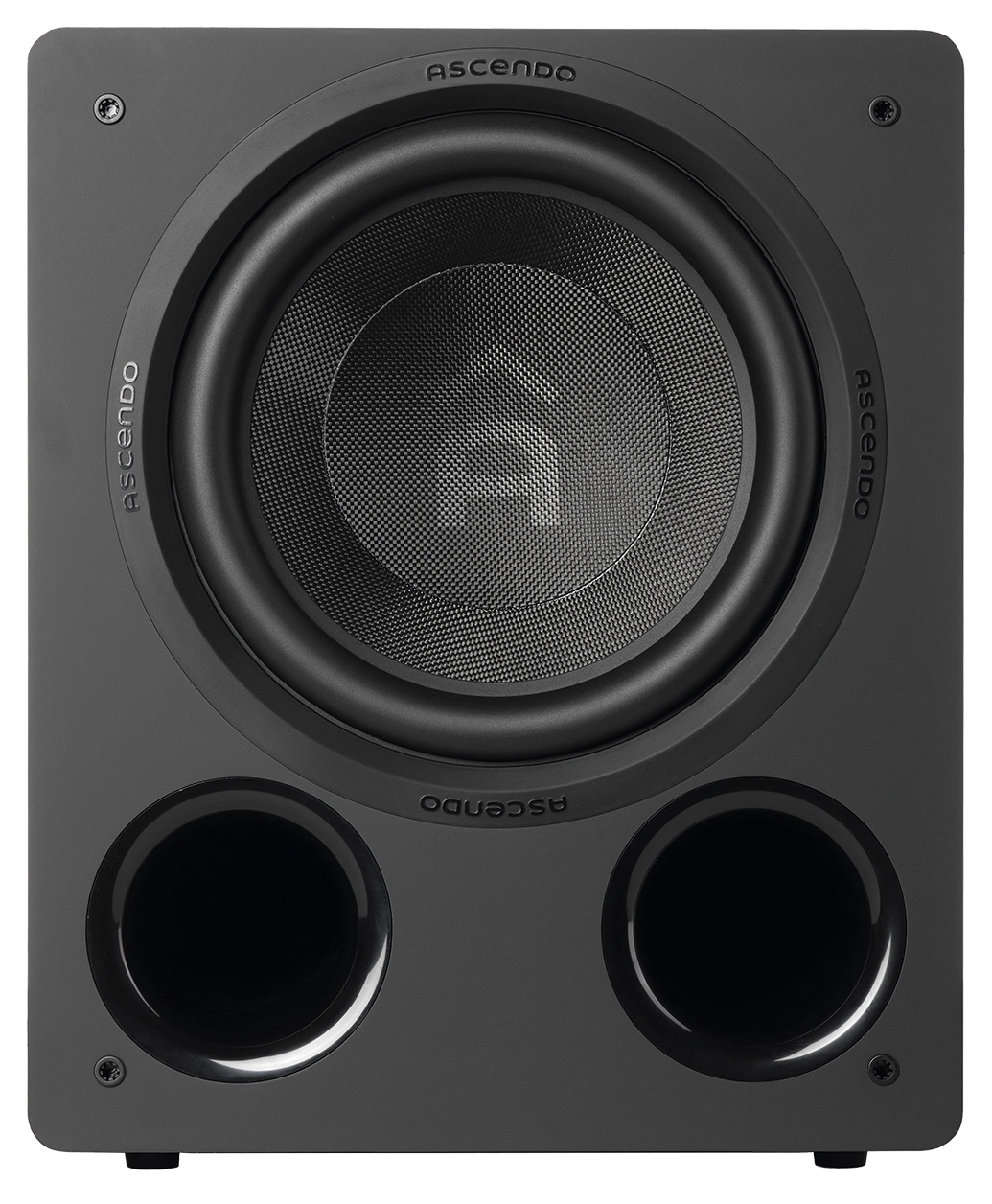

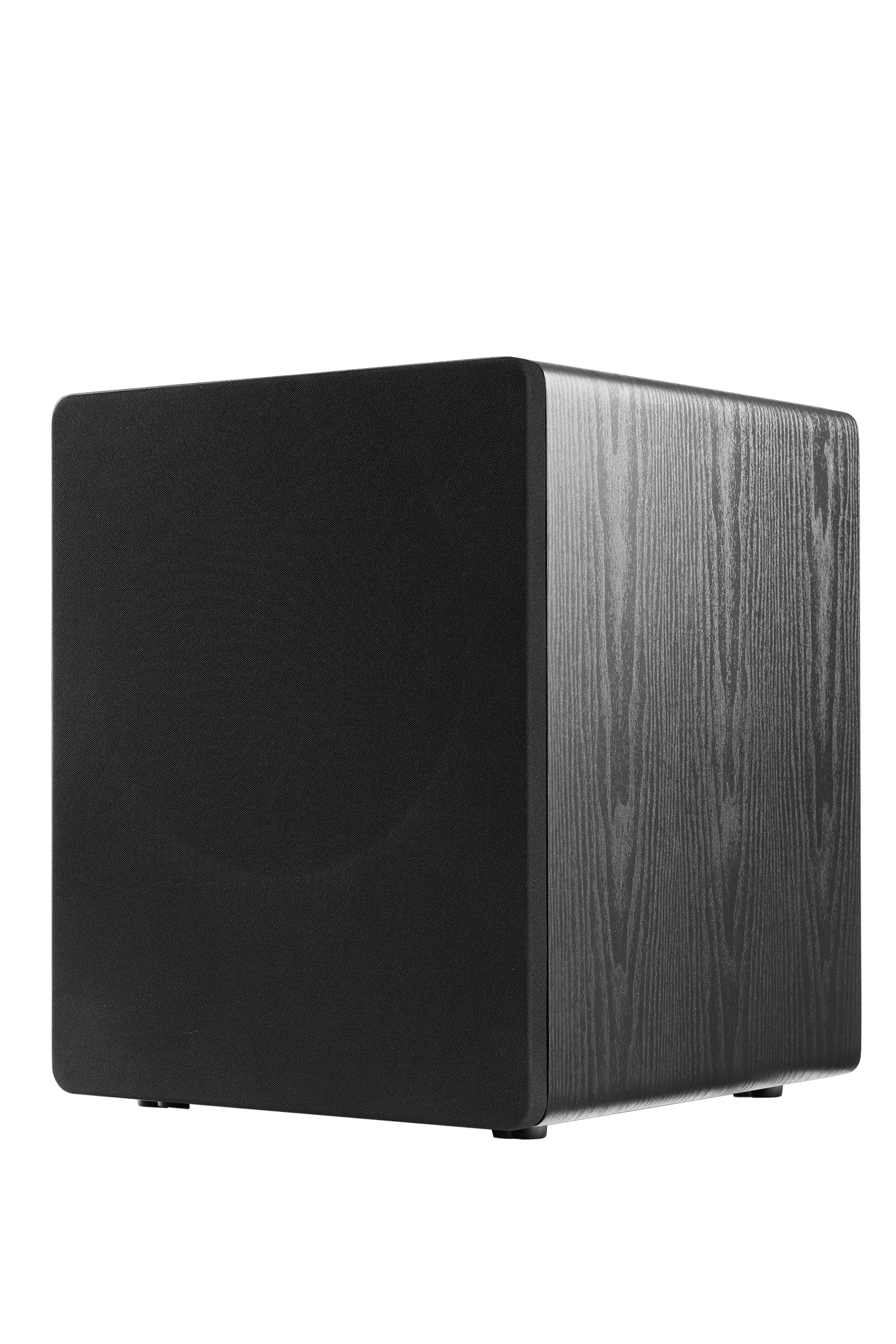

THE12 SUB ACTIVE VENTED
Description
The new ASCENDO The12 SUB ACTIVE VENTED subwoofer sets the standard for bass output, low distortion, and affordability. With chest thumping bass that plays deep down, the The12 SUB AV subwoofer unleashes cinema-level volume, with the ability to convey and articulate the subtle nuances of music.
12" Woofer: At the heart of the powered subwoofer is a composite cone driver with a very stiff sandwich cone paired with a large throw rubber surround. The The12 SUB AV driver was developed from the ground up, with a design focus on achieving output, accuracy, dynamics, and linearity, while minimizing distortion. Sophisticated computer modeling and measurement techniques are used extensively in the powered subwoofer design process. The woofer is enclosed in a cabinet made from HDF material outfitted with massive internal bracing and dual ports to minimize port turbulence.
600-Watt Amplifier: The 600W RMS amplifier is built around the high efficiency Class D amplifier module based on a proven topology with vast reserves of power for highly accurate, deep bass for your home theater or music system. A Variable crossover with adjustable phase control is used for easy integration with other speakers.
For convenience, an auto turn-on/off function was added. Audio can be supplied to the The12 SUB AV by either balanced XLR or RCA interconnects (LFE/line level inputs).
Specification
General
Speaker Type
12” forward-firing compositive cone woofer, 3” voice coil
XMAX
20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion
Principle
Vented
Passive | Active
Active, built in DSP Amplifier
Measured Data
SPL Peak (Peak / Half Space 2pi)
Measured Data 112 dB @ 28 Hz
Frequency Range
Measured Data (Without DSP) 28 Hz - 400 Hz / -3 dB
Directivity Horizontal x Vertical in deg°
360°
Power Specifications & Features
Output Power
600 W
Power Supply Requirements
100-240 VAC, 50-60 Hz
Power Consumption
230 VAC - 1/8 rated power (4 Ohm)
0.5 W / 75 A
120 VAC - 1/8 rated power (4 Ohm)
1 A / 75 W
Idle
12 W
Automatic Power Off
Autosence

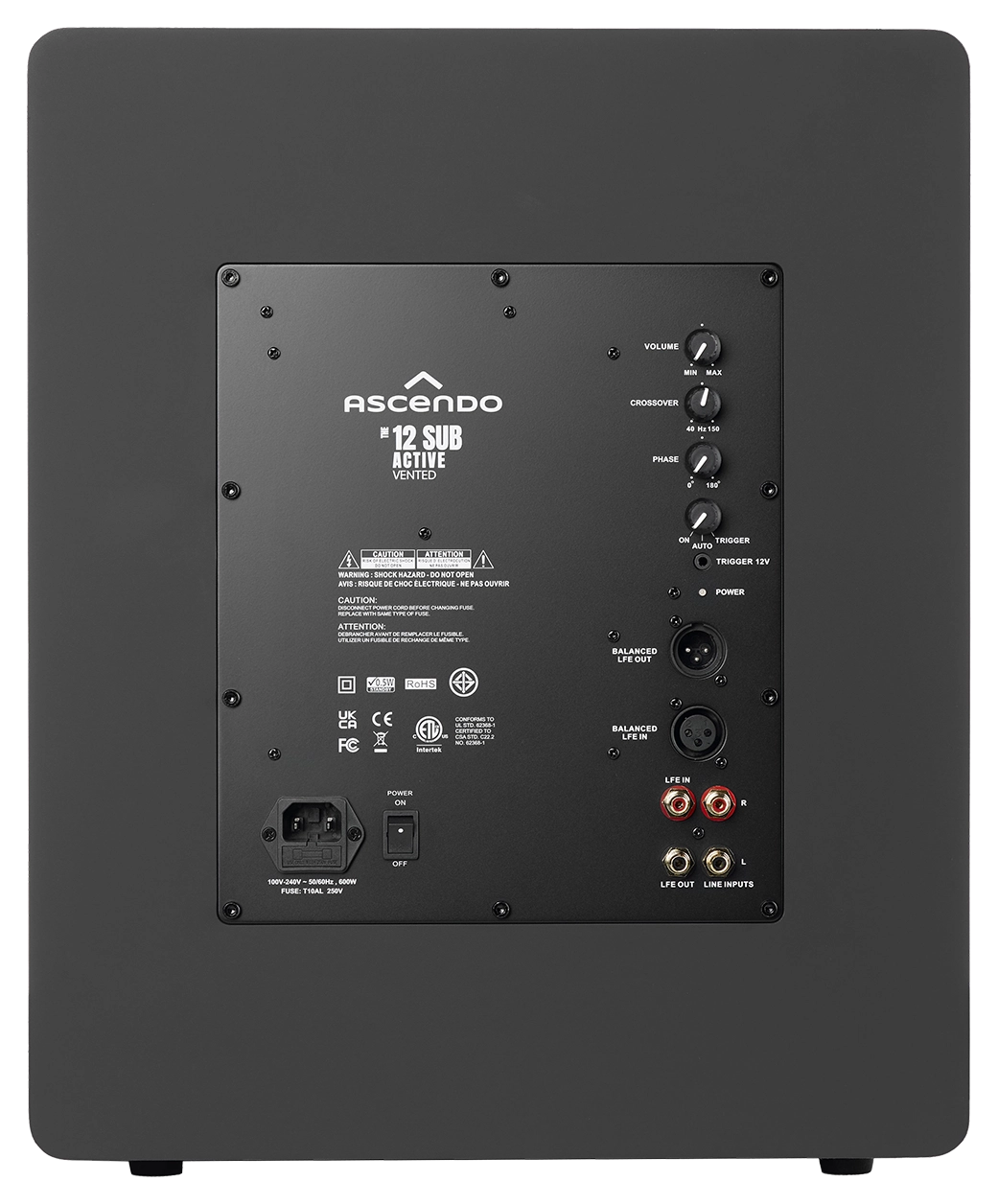

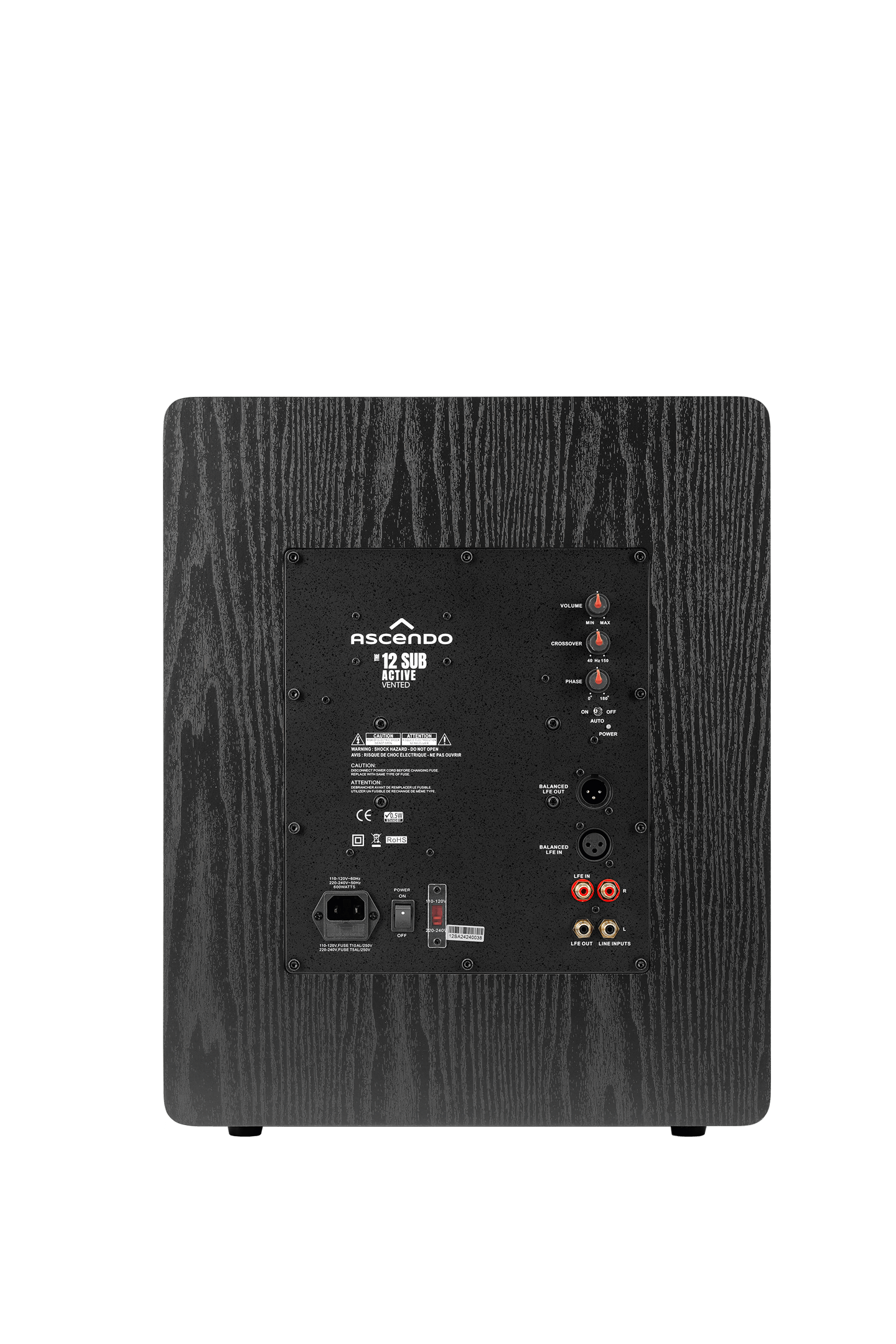

Connections
Input
LFE: 1 x XLR Balanced Full Range / no crossover applied Line Level: 2 x RCA summing / unbalanced
Output
LFE: 1 x XLR Balanced Line Level: 2 x RCA / unbalanced
Power
IEC
Signal Processing & Control
Protection Features
Turn-on transients, Over-heating, DC, Short-circuit, Mismatched loads
Controller
LP crossover 40 Hz to 150 Hz variable, phase 0º-180º, volume control, auto tun on/off
Converter
N/A
Input IIR EQ Section
Gain, Mute, Phase inversion, (Parametric, Shelving, LP, HP, BP)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
400 | 490 | 400 (Height without feet: 480) (Depth with plug: 460)
Dimensions (W/H/D) inch (Without Grille)
15 3/4 | 19 2/7 | 15 3/4 (Height without feet: 18 8/9) (Depth with plug: 18 1/8)
Packing Dimensions (W/H/D) mm
560 | 650 | 560
Packing Dimensions (W/H/D) inch
22 1/16 | 25 9/16 | 22 1/16
Weight
61.73 lbs | 28 kg
Gross Weight
70.55 lbs | 32 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish
Black ash
Mounting
Floorstanding with feet
Grille

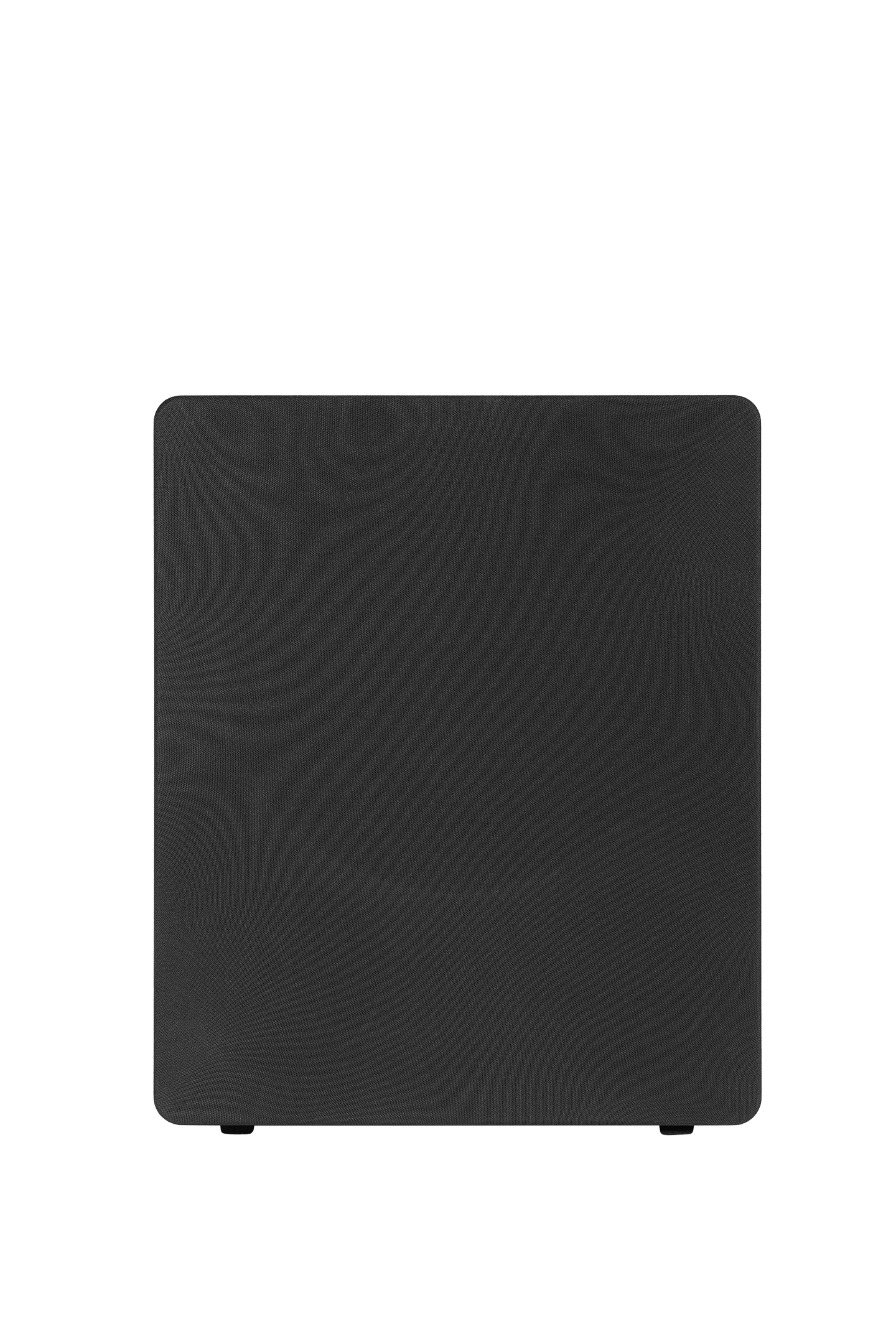

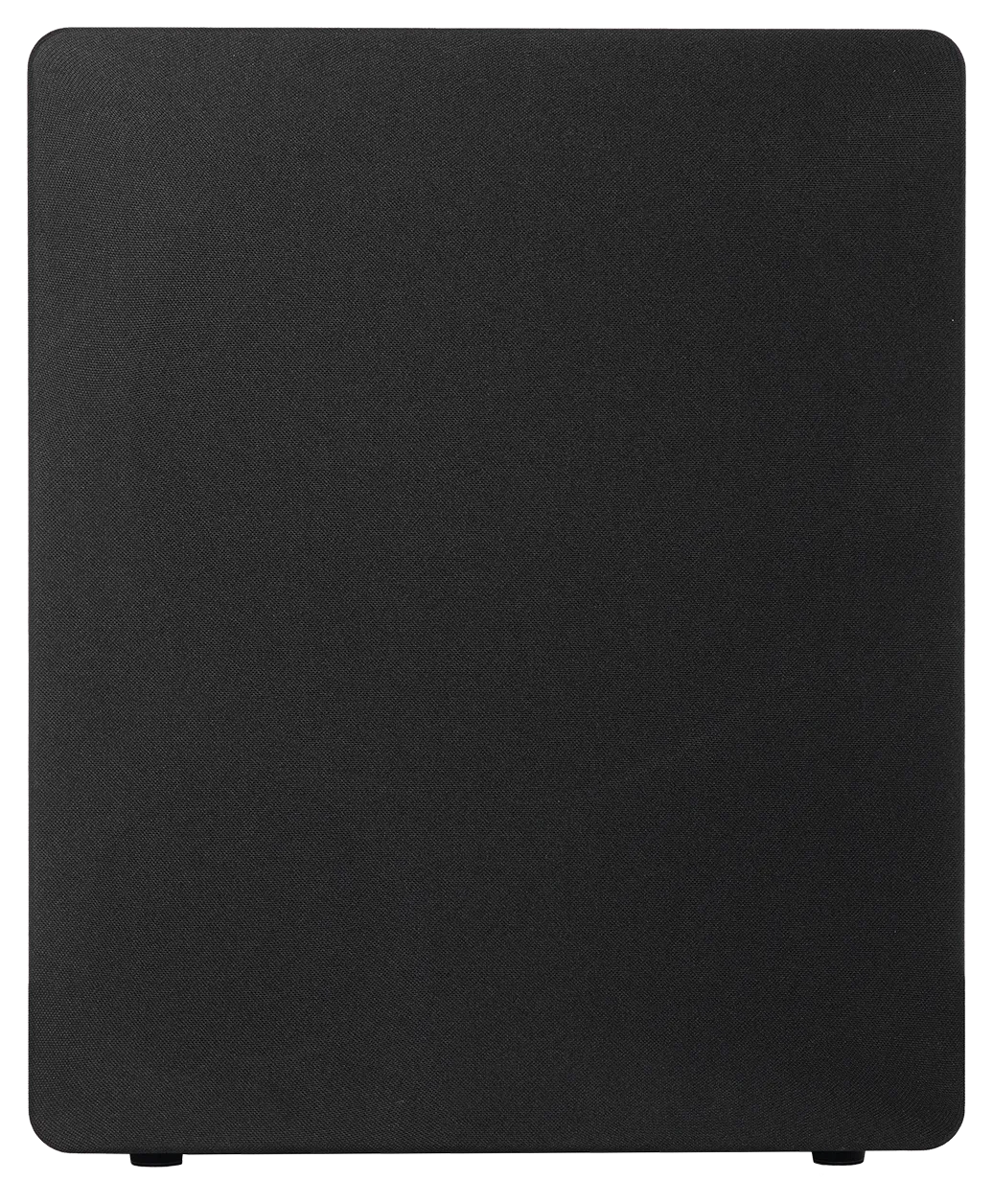

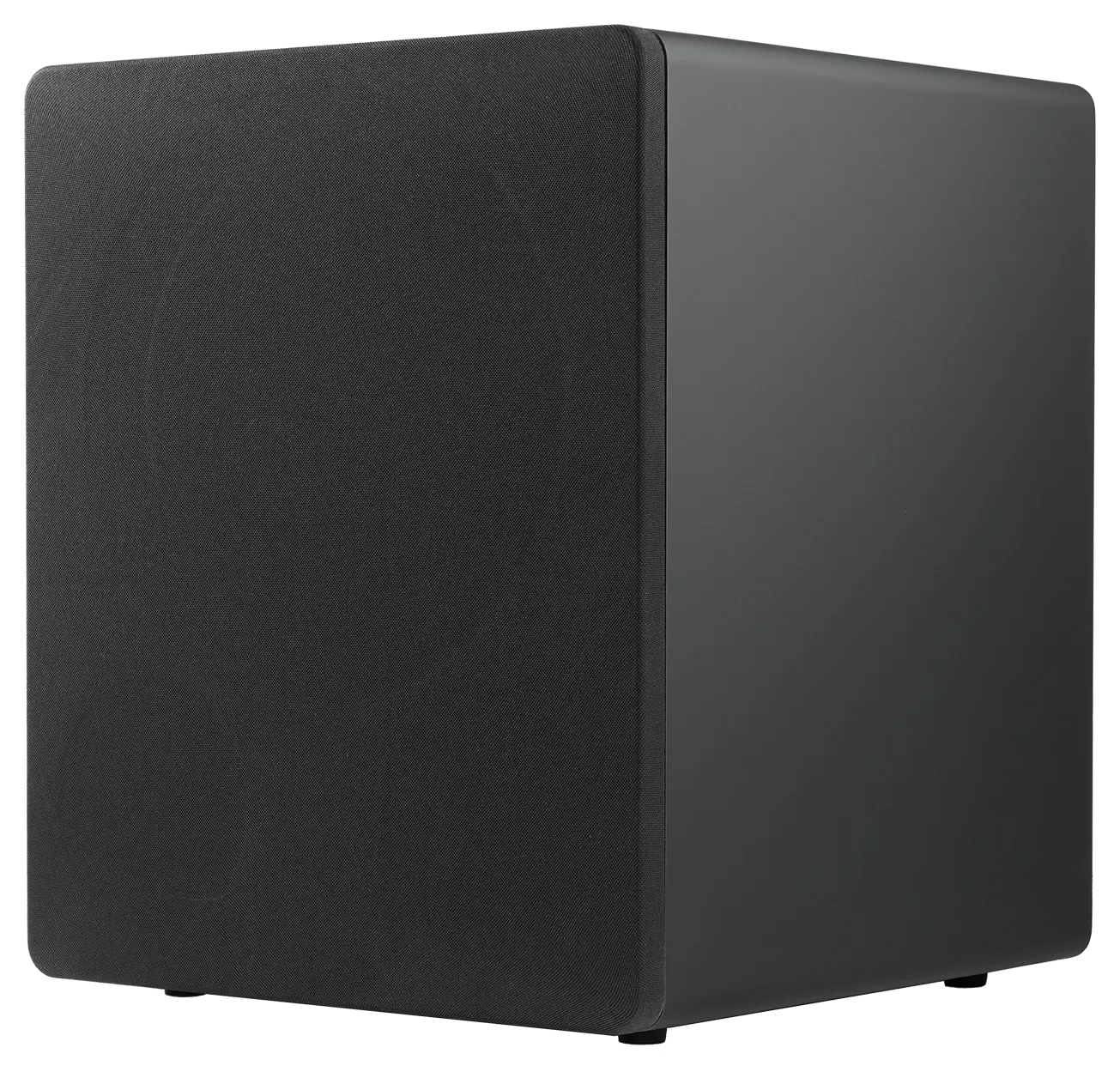

The THE12 SUB ACTIVE VENTED is supplied with a front cover as standard
