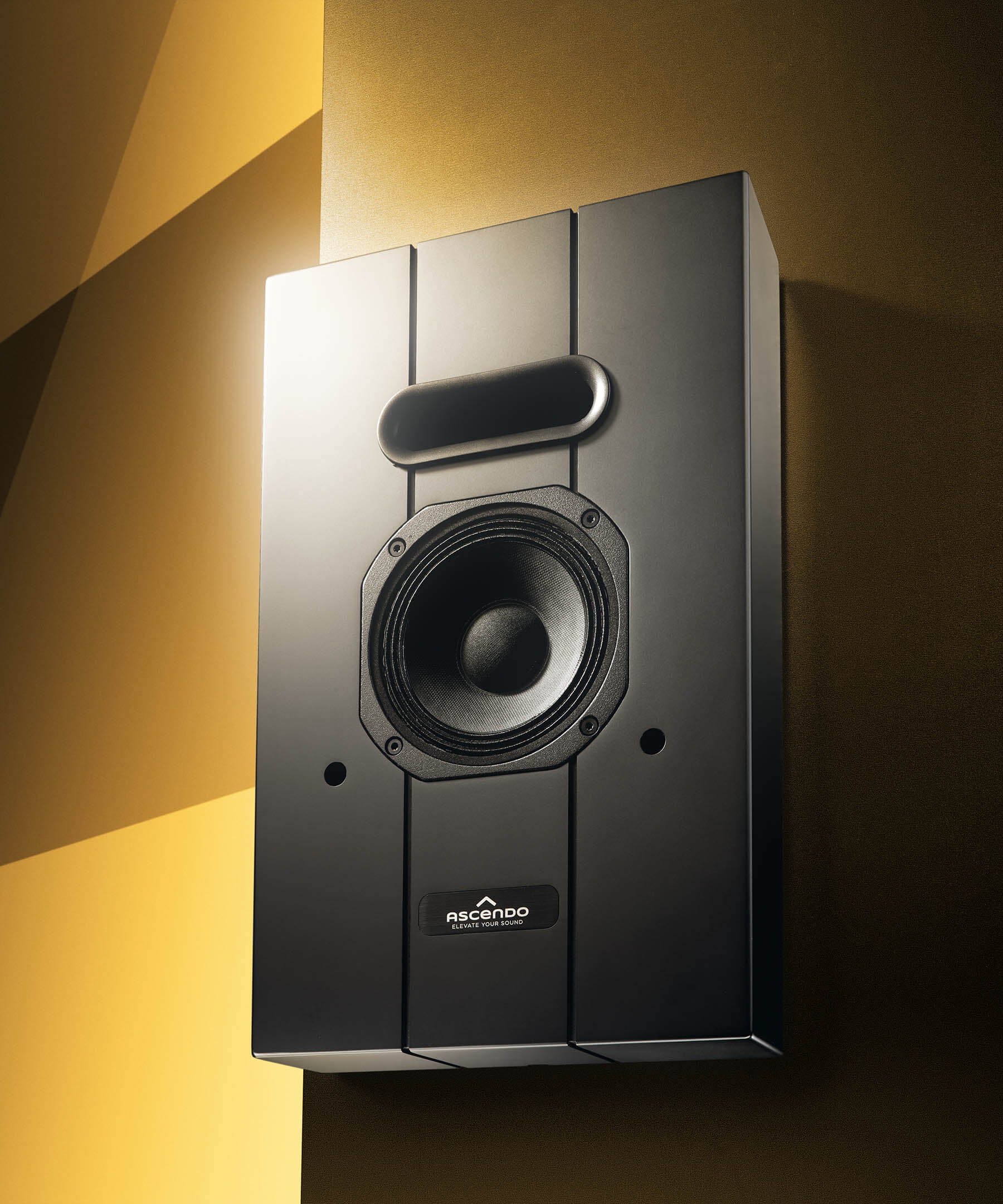

THE5 PASSIVE ON WALL
Description
Quality is not a matter of size or budget. This impressively demonstrates our smallest speaker model, the passive The5-P (Previous name: CCM5-P). The The5-P is a true high-performance speaker whose centerpiece is a heavy-duty 13 centimeter large coaxial driver, provenient from the area of professional PA technology. The genes of this advanced coax driver not only care for an amazingly great acoustic bandwidth, but also provide an efficiency of 88 dB (1 watt/1 meter).
The effectiveness of the The5-P therefore allows for the combination with lower output power amplifiers. For this reason, the smallest passive speaker from AiA is our top recommendation when it comes to the realization of smaller 3D home theaters operating with Dolby Atmos, Auro 3D or DTS:X.
Another major advantage of the The5-P is its small depth of only 75 mm. This makes it the perfect choice for in-wall as well as on-wall assembly.
Specification
General
Speaker Type
5 ¼” time-coherent point-source coaxial
Principle
Vented
Passive | Active
Passive
Woofer
5¼” woofer
Tweeter
1” soft dome
Recommended ASCENDO Amplifiers
AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004
Measured Data
SPL (Half Space 2pi)
Measured Data 108 dB (Cont.) / 120 dB (Peak)
Frequency Range
Measured Data (Without DSP) 100 Hz - 20 kHz / -3 dB
Power Handling
100 W
Efficiency
83 dB / 1 W/m 4 pi, 89 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
85° x 85°
Input
Input Terminal
4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
250 | 400 | 75 (With grille: 81)
Dimensions (W/H/D) inch (Without Grille)
9 13/16 | 15 3/4 | 2 15/16 (With grille: 3 3/16)
Packing Dimensions (W/H/D) mm
360 | 500 | 180
Packing Dimensions (W/H/D) inch
14 3/16 | 19 11/16 | 7 1/16
Weight
8.82 lbs | 4.0 kg
Gross Weight
12.13 lbs | 5.5 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish
Matte black / White glossy
Mounting

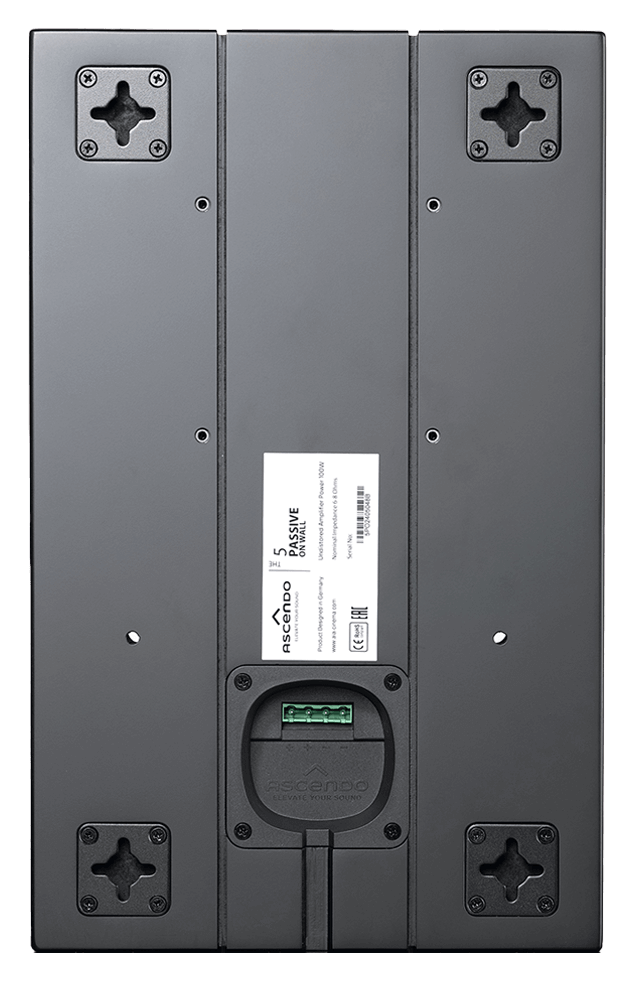

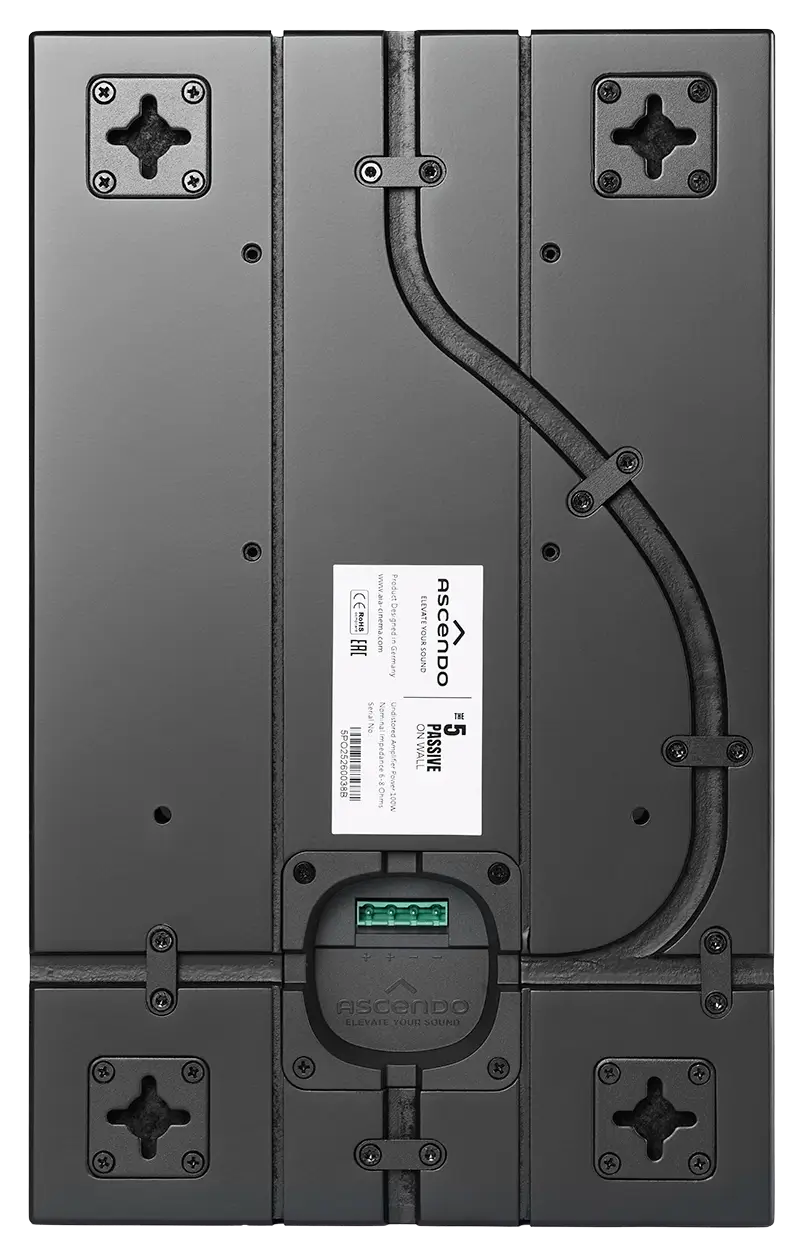

4 x wall brackets for horizontal and vertical installation, 2 through-holes for direct wall or ceiling mounting, VESA 100 x mounting points
Name

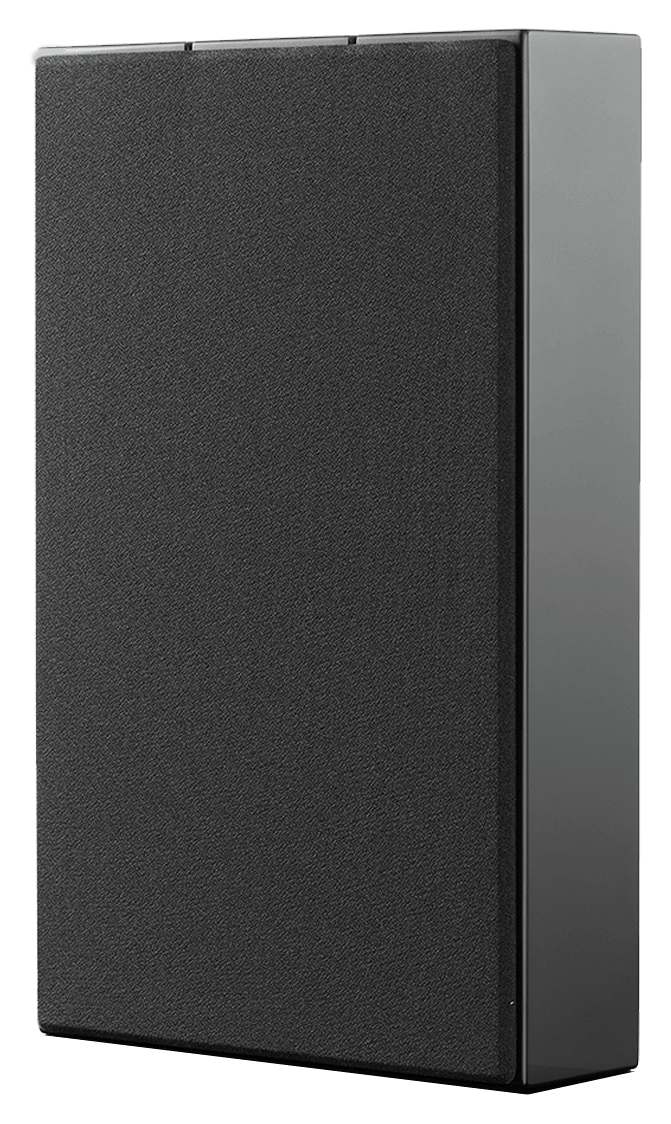

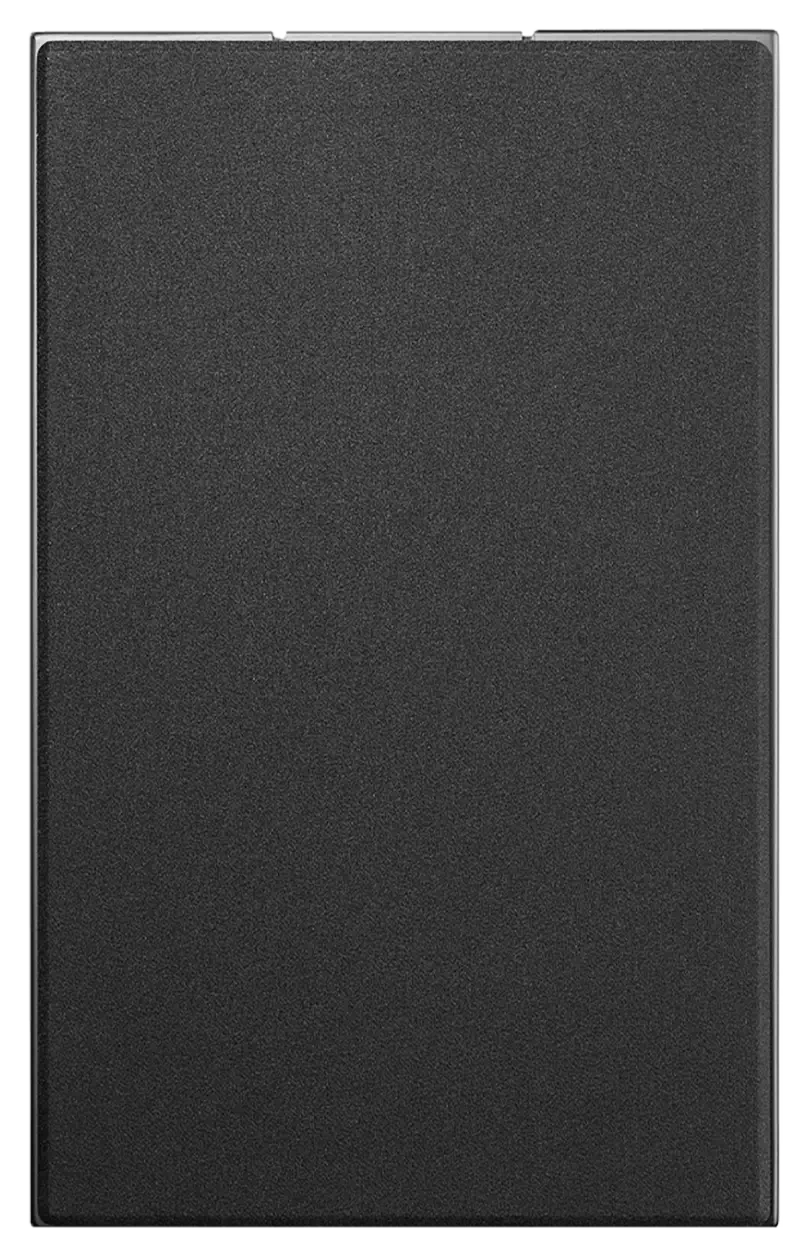

The THE5 PASSIVE ON WALL is supplied with a front cover as standard
